8149.03.3795

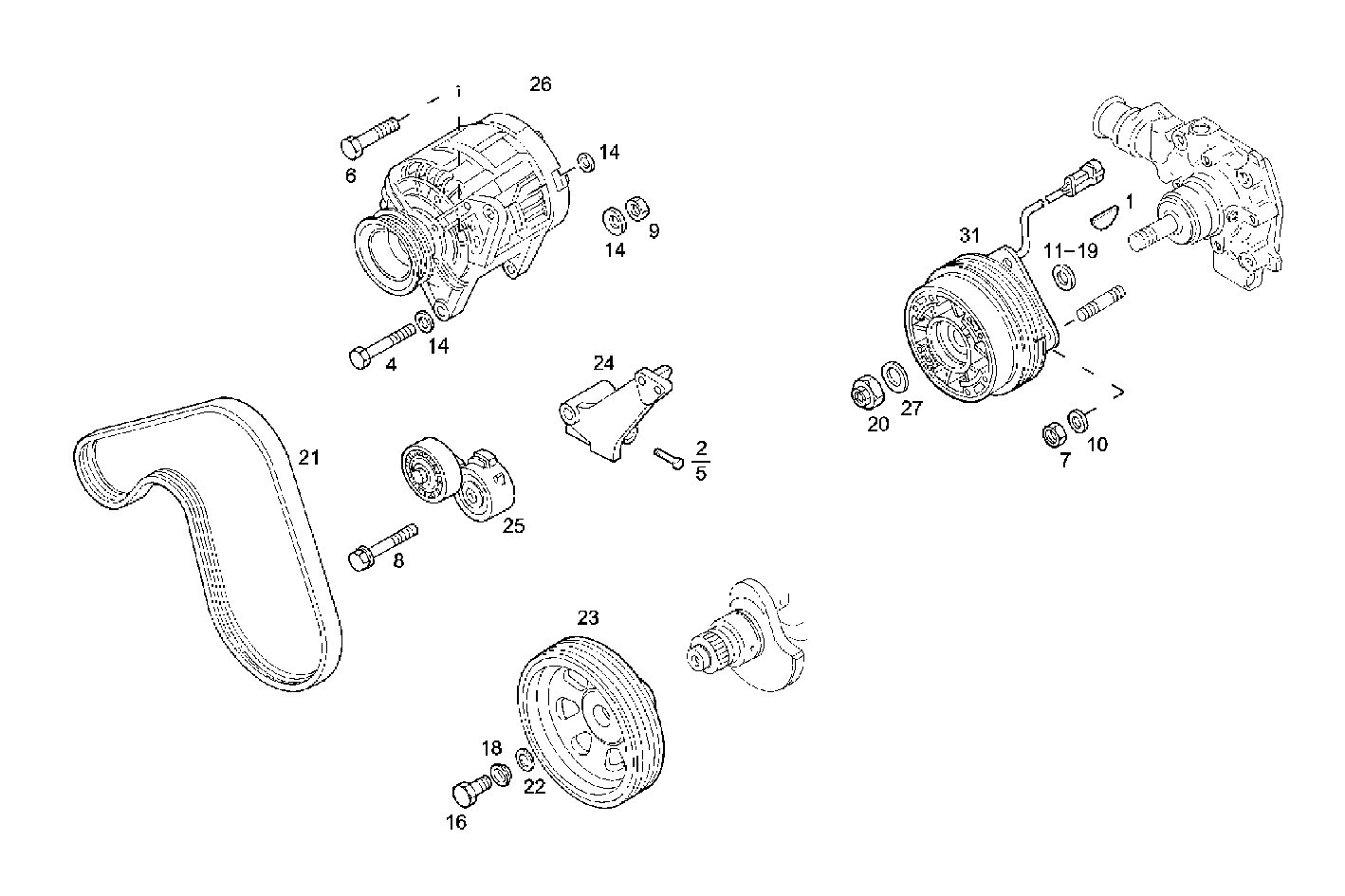

4000.183 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 10205710 | KEY 3X5 MM |
| 2 | 16289524 | HEXAGON BOLT |
| 4 | 15972424 | HEXAGON BOLT M10X1,25X130 MM |
| 5 | 16288824 | HEXAGON BOLT M10X45 MM |
| 6 | 10923624 | SCREW |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 16592225 | HEXAGON BOLT M8X55 MM |
| 9 | 14059421 | HEXAGON NUT M10X1,25 |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 98493779 | WASHER Ø15X25 SP=4,45 MM |
| 14 | 17097124 | WASHER 10x21 |
| 16 | 98419203 | SCREW M20X1,5X58 MM |
| 18 | 98431967 | WASHER |
| 19 | 98437565 | WASHER Ø25 MM |
| 20 | 500333918 | HEXAGON NUT M14X1,5 |
| 21 | 500368902 | WATER PUMP BELT |
| 22 | 98429488 | SPACING BAR |
| 23 | 500332296 | CRANKSHAFT PULLEY |
| 24 | 500372423 | GENERATOR SUPPORT |
| 25 | 500332622 | BELT TENSIONER |
| 26 | 500317453 | ALTERNATOR ASSY |
| 27 | 17092074 | SPRING WASHER Ø14X32 MM SP=4 MM |
| 31 | 99473900 | WATER PUMP PULLEY |
