8149.03.4000

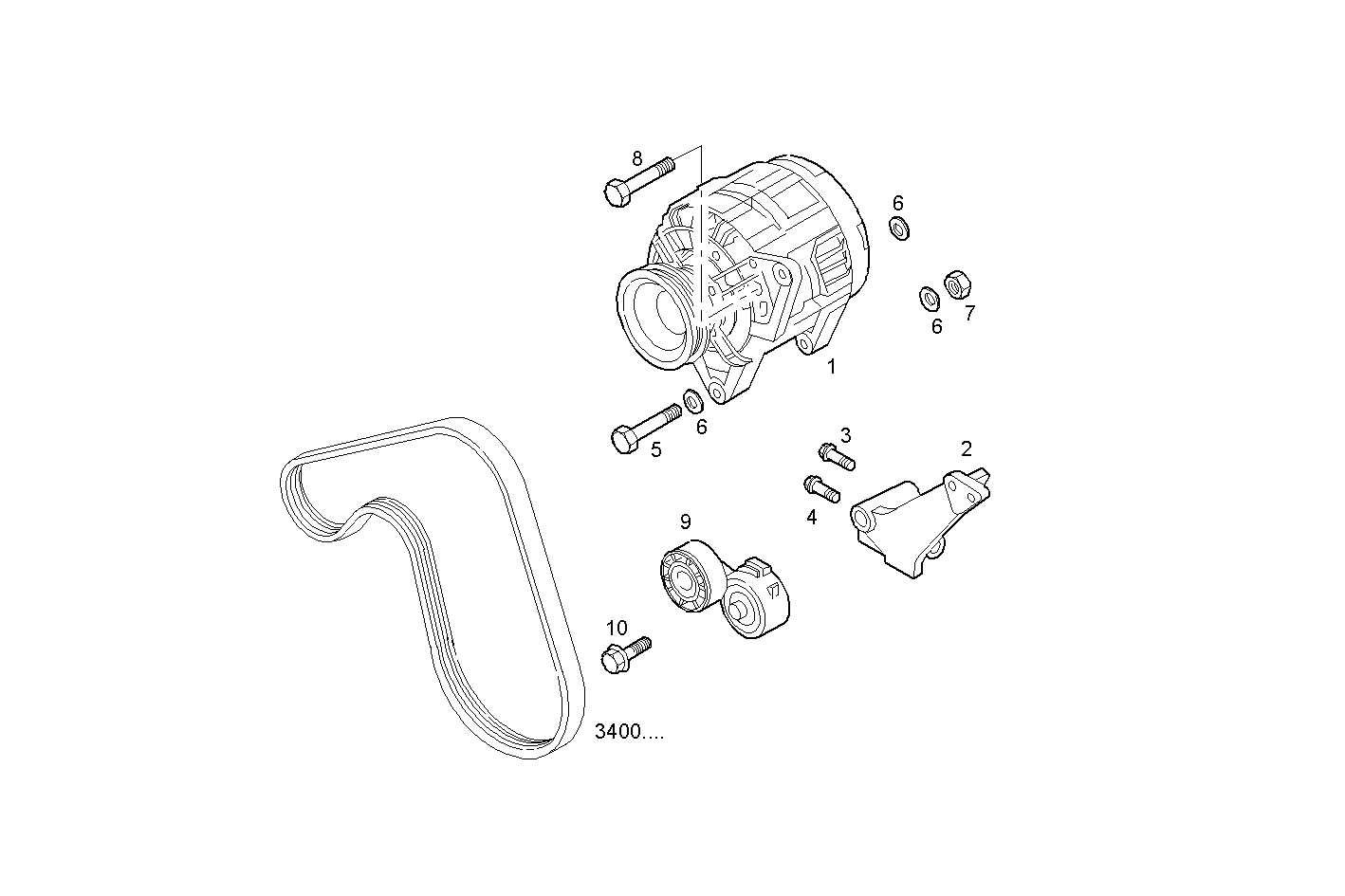

4000.181 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 500317453 | ALTERNATOR ASSY |
| 2 | 99463360 | GENERATOR SUPPORT |
| 3 | 16289524 | HEXAGON BOLT |
| 4 | 16288734 | HEXAGON BOLT M10X1,25X40 MM |
| 5 | 15972421 | HEXAGON BOLT M10X1,25X130 MM |
| 6 | 17095125 | WASHER |
| 7 | 14059421 | HEXAGON NUT M10X1,25 |
| 8 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
| 9 | 500332622 | BELT TENSIONER |
| 10 | 16592224 | HEXAGON BOLT M8X55 MM |
