8149G00.10A027

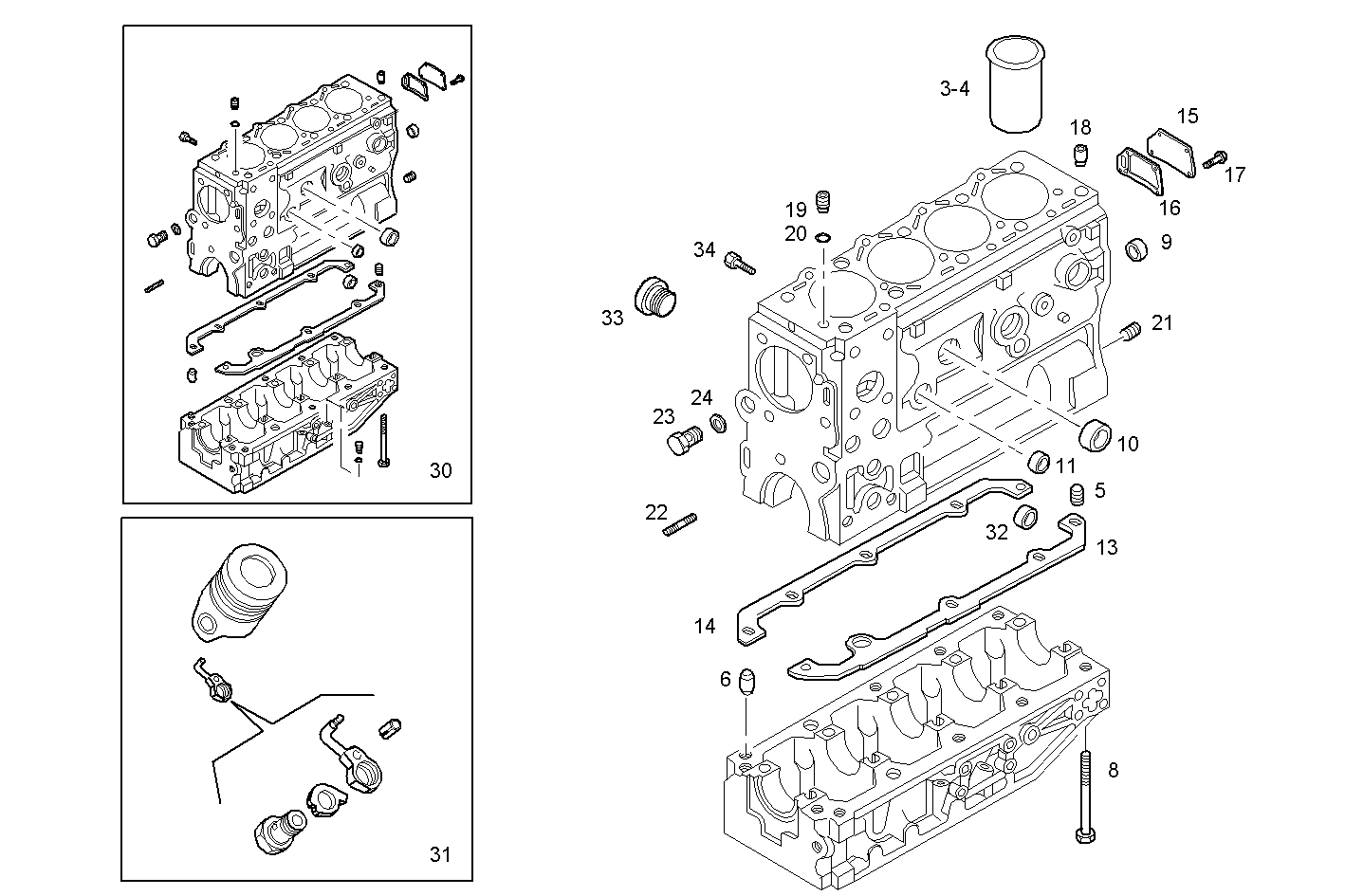

0400.213 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
3 99435938 CYLINDER LINER STD.
4 99443784 CYLINDERLINER +0.2
5 4724790 DOWEL PIN
6 4279387 CENTERING RING
8 4792169 SCREW
9 7301976 PLUG Ø16 MM
10 14282870 LOCK PLUG Ø40 MM
11 14328901 LOCK PLUG Ø25 MM
13 99432807 FLAT ENGINE GASKET LEFT [from 2122618]
14 99432808 FLAT ENGINE GASKET RIGHT [from 2122618]
15 98471295 COVER [from 2122618]
16 500329970 FLAT ENGINE GASKET SP=0,4 MM
17 18138325 HEXAGON BOLT M8X16 MM
18 98418754 DOWEL PIN
19 98418753 DOWEL PIN [from 1533081]
20 17277981 O-RING 1,78x9,25
21 7300019 DOWEL PIN
22 7301674 STUD
23 504072562 THREADED PLUG
24 16508360 WASHER 18x22x1,5
30 99477104 CRANKCASE ASSY
31 500369466 OIL NOZZLE
33 10269601 THREADED PLUG M16X1,5
34 500324832 SOCKET-HEAD SCREW
35 98405182 DOWEL PIN Ø11 MM
36 11903211 LOCK PLUG M12X1,25
37 10261060 GASKET Ø12X16 MM SP=1,5 MM
