8149G00.10A027

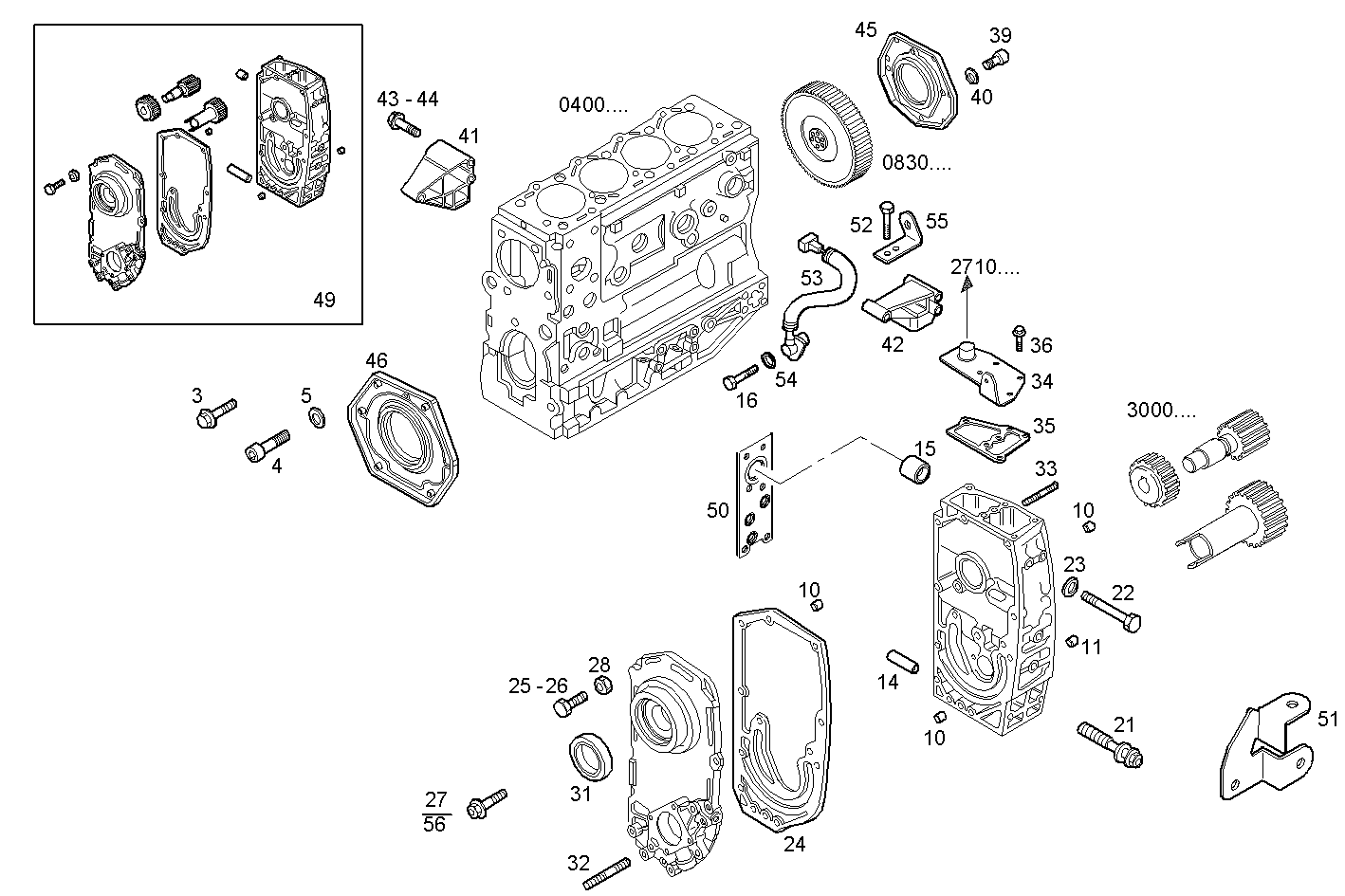

0430.242 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
3 16585925 HEXAGON BOLT M6X25 MM
4 16689134 SOCKET-HEAD SCREW M6X16 MM
5 17088474 WASHER Ø6X12 MM
10 98465476 DOWEL PIN Ø8 MM
11 500325603 DOWEL PIN Ø11 MM
14 4710945 BUSH Ø18X30 MM
15 98461177 BUSH Ø40X46,2 MM [from 1608990]
16 18137825 HEXAGON BOLT M6X16
21 99458260 SCREW M12X1,5X150 MM
22 98468138 HEXAGON BOLT M8X1,25X150 MM
23 17094924 WASHER Ø8X16 MM
24 504032241 FLAT ENGINE GASKET
25 16605624 HEXAGON BOLT M8X25 MM (8.8)
26 16606034 HEXAGON BOLT M8X45 MM
27 500324560 SCREW M8X45 MM
28 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
31 98454045 SHAFT SEAL
32 13449524 STUD M10X1,25X15X25
33 16746725 STUD
34 500324894 HOUSING COVER
35 500349423 FLAT ENGINE GASKET SP=0,4 MM
36 18138424 HEXAGON BOLT M8X20 MM
39 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
40 17089574 WASHER Ø8X16 MM
41 500346555 BRACKET LEFT
42 504032200 BRACKET
43 16289134 HEXAGON BOLT M10X1,25X60
44 16289624 HEXAGON BOLT M10X1,25X100 MM
45 504086314 SHAFT SEAL WITH SEAL
46 504086312 SHAFT SEAL WITH SEAL
49 504027989 BEARING HOUSING
50 500368070 FLAT ENGINE GASKET
51 500332328 RETAINER
53 500343018 ELECTRON.TRANSMITT
54 17094724 WASHER Ø6X12 MM
55 500344409 FASTENING BRACKET
56 504008971 SCREW
