8149G00.10A027

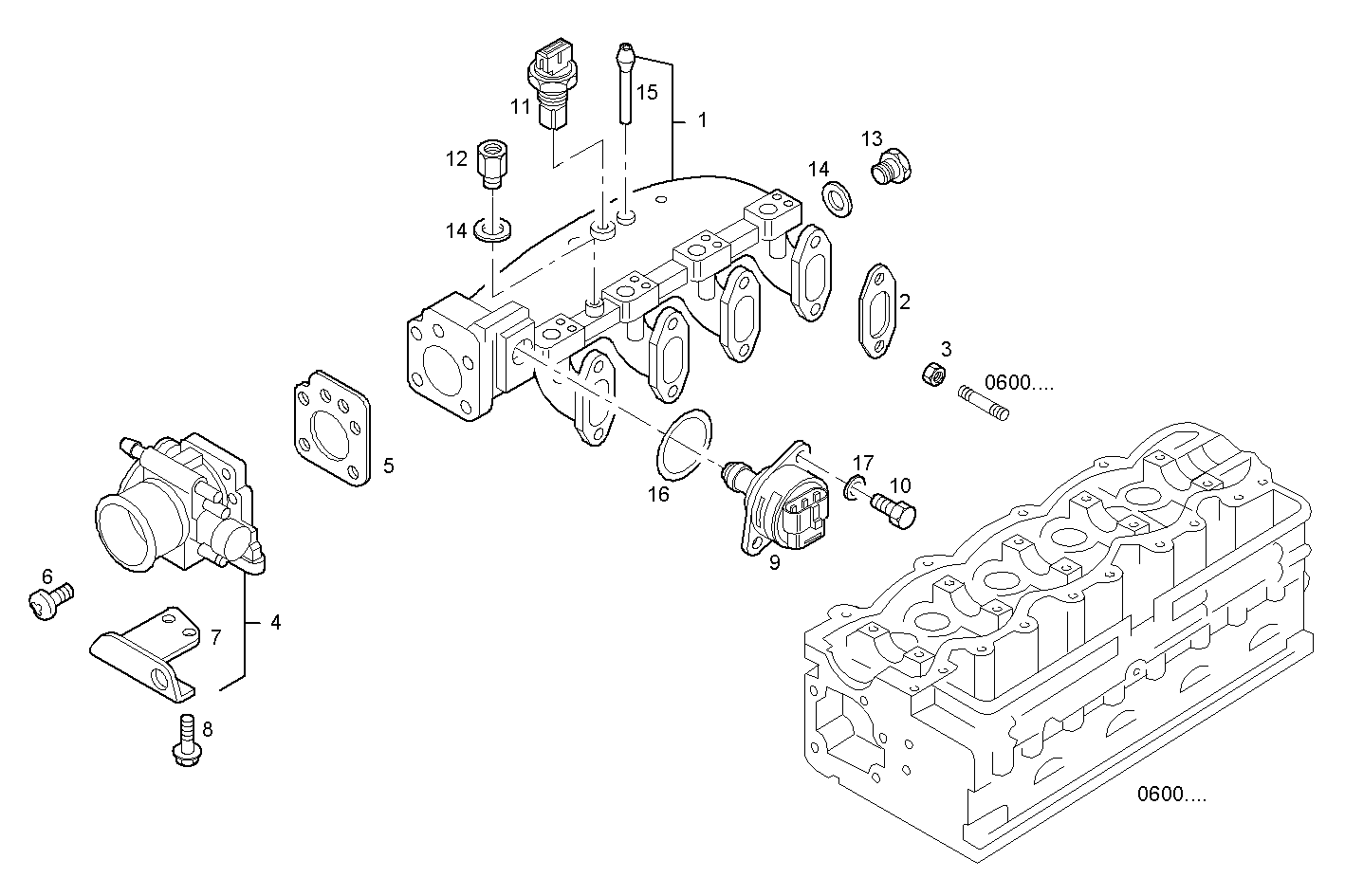

0710.216 INTAKE MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 504086181 | INTAKE ELBOW |
| 2 | 98425767 | INTAKE ELBOW GASK. SP=0,8 MM |
| 3 | 99486343 | HEXAGON NUT M8X1,25 |
| 4 | 2991664 | VALVE HOUSING |
| 5 | 500309791 | INTAKE ELBOW GASK. |
| 6 | 500343060 | HEXAGON BOLT |
| 7 | 500340518 | RETAINER |
| 8 | 16677735 | HEXAGON BOLT M12X25 MM |
| 9 | 500309796 | GAS ENGINE ACTUATOR |
| 10 | 16602024 | SCREW M5X12 MM (8.8) |
| 11 | 500309797 | TRANSMITTER |
| 12 | 500340467 | BULKHEAD STR.COUPL |
| 13 | 16992511 | THREADED PLUG M18X1,5 |
| 14 | 16508360 | WASHER 18x22x1,5 |
| 15 | 500330891 | CONNECTION PIPE |
| 16 | 17281980 | O-RING |
| 17 | 17094504 | WASHER Ø5,3X10 MM |
