8149G00.10A027

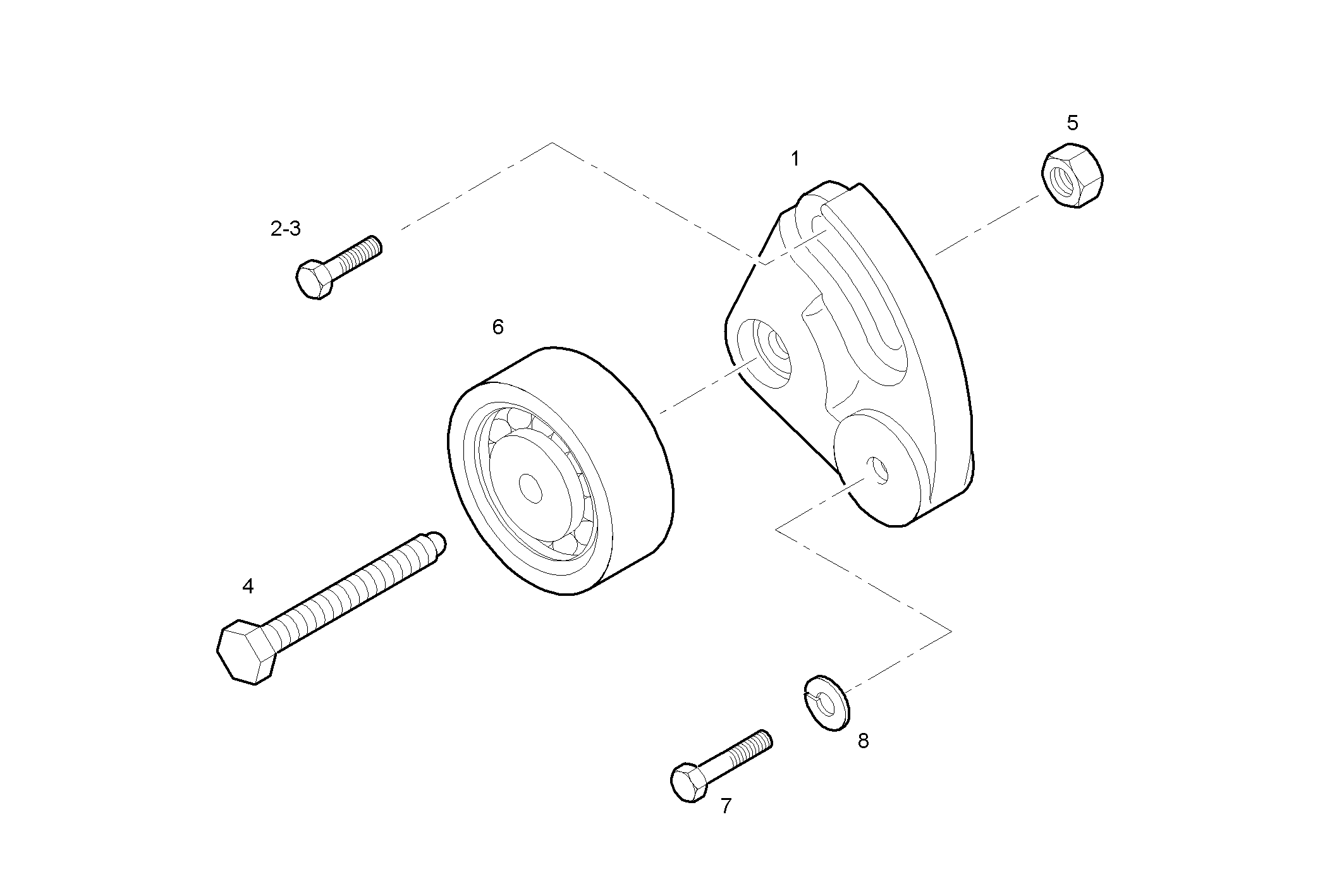

3900.033 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 500327469 | BELT TENSIONER |
| 2 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 3 | 16673835 | HEXAGON BOLT M8X30 MM |
| 4 | 98460578 | ADJUSTING SCREW |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 98429701 | ENGINE BEARINGS |
| 7 | 16690424 | CYLIND-HEAD SCREW M8X1,25X16 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
