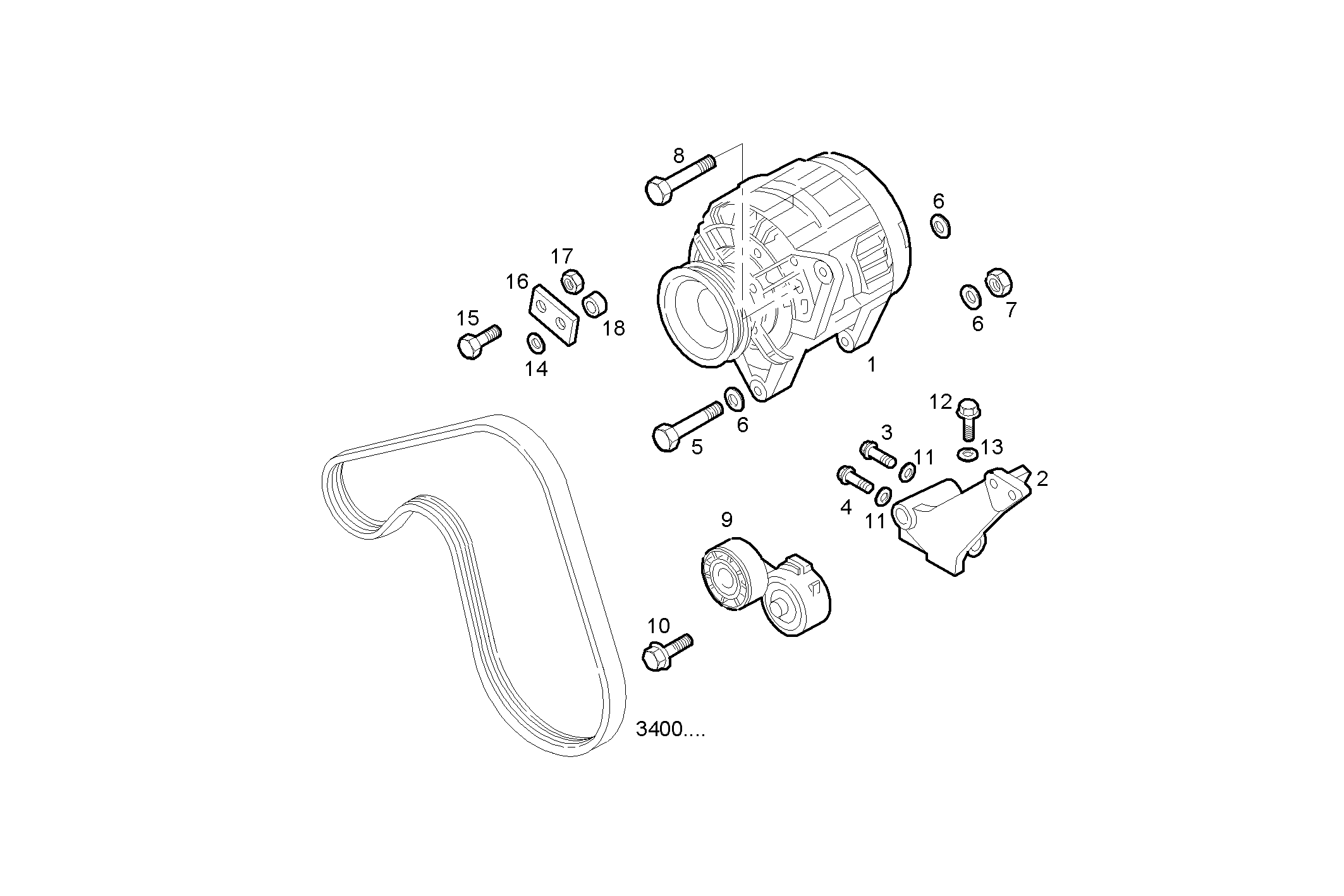

| Item |
Part number |
Description |
|
1 |
500317453 |
ALTERNATOR ASSY |
|
2 |
500372424 |
GENERATOR SUPPORT |
|
3 |
11343721 |
HEXAGON BOLT M10X65 MM |
|
4 |
15004624 |
HEXAGON BOLT M10X50 MM |
|
5 |
15972421 |
HEXAGON BOLT M10X1,25X130 MM |
|
6 |
17095125 |
WASHER |
|
7 |
14059421 |
HEXAGON NUT M10X1,25 |
|
8 |
10923621 |
HEXAGON BOLT M10X1,25X35 MM |
|
9 |
500332622 |
BELT TENSIONER |
|
10 |
16592224 |
HEXAGON BOLT M8X55 MM |
|
11 |
16665604 |
WASHER �10X20 MM |
|
12 |
14331424 |
SCREW |
|
13 |
17091074 |
WASHER �12X24X2,8 MM |
|
14 |
17090174 |
SPRING WASHER �10X20 MM |
|
15 |
16608124 |
HEXAGON BOLT M10X1,5X50 MM |
|
16 |
8029451 |
RETAINER |
|
17 |
17038131 |
HEXAGON NUT M10 |
|
18 |
4930712 |
SPACING BAR |
