8210i03.00

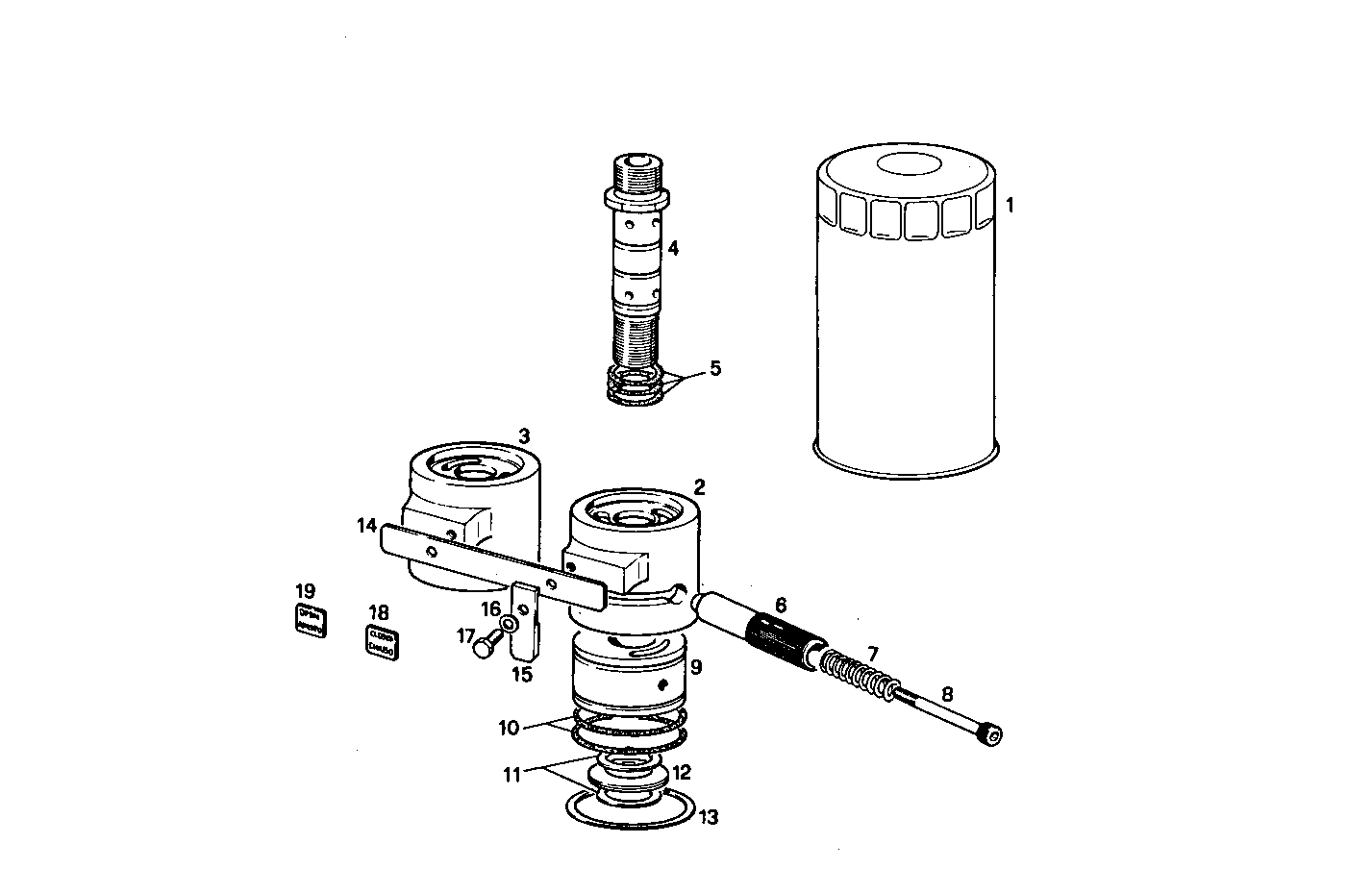

A17070001 DOUBLE OIL FILTER - removable from top-side

Iveco/FPT DOUBLE OIL FILTER

Item Part number Description
1 1907570 OIL FILTER CARTRIDGE
2 8100281 OIL FILTER SUPPORT
3 8100280 OIL FILTER SUPPORT
4 8100283 SCREW CONNECTOR
5 14457581 O-RING Ø20,29 MM SP=2,62 MM
6 8101890 HANDLE BALL
7 8100285 SPRING
8 14309020 CYLIND-HEAD SCREW M8X70 MM
9 8100282 VALVE HOUSING
10 14460081 O-RING SP=2,62 MM
11 4544153 SHIM SP=0,2 MM
12 8100286 SPRING
13 8009899 O-RING
14 8106121 PLATE
15 8100289 PLATE
16 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
17 10902221 HEXAGON BOLT M6X16 MM
18 8100291 LABEL CLOSED
19 8100290 LABEL OPEN
