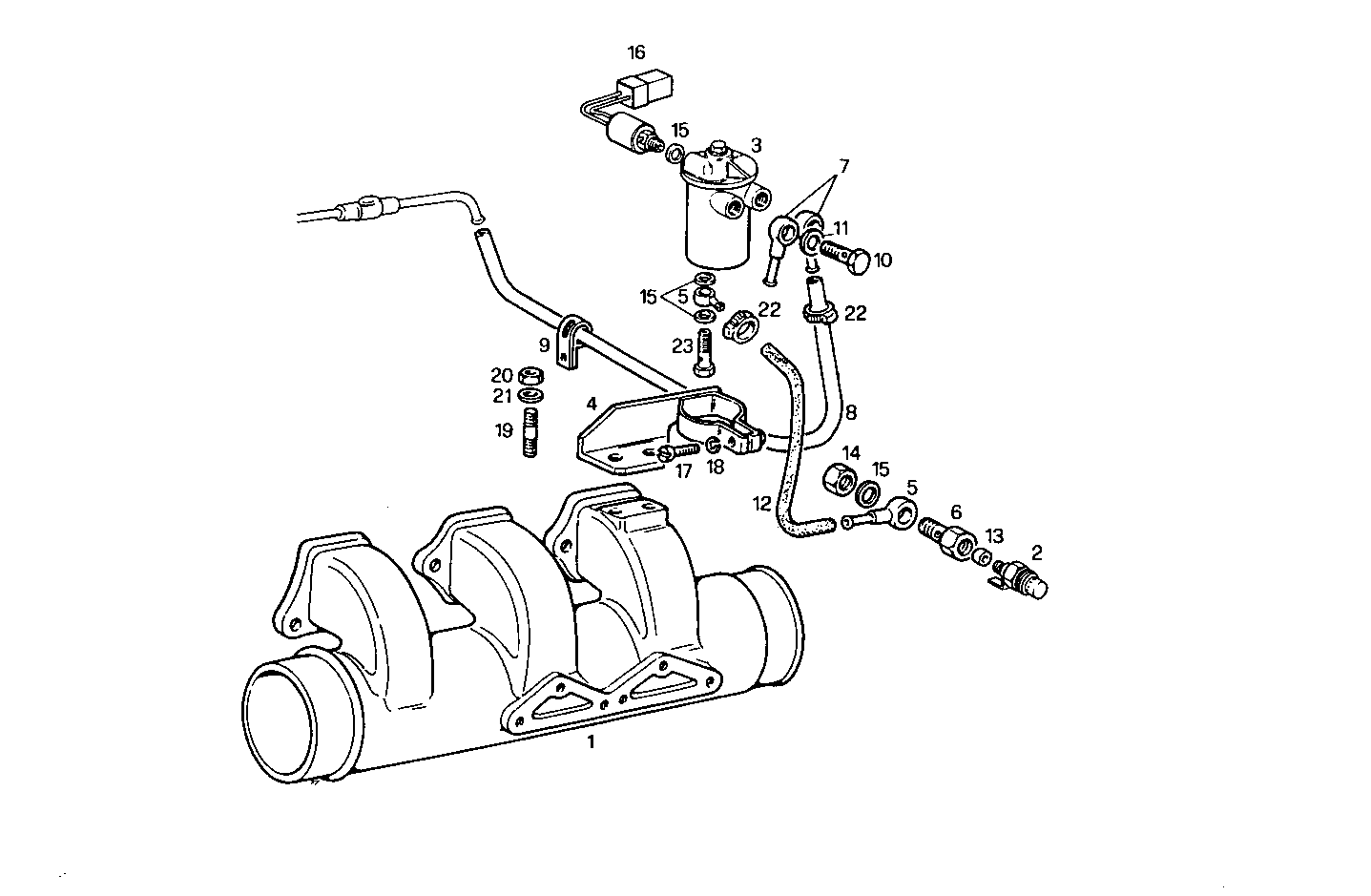

| Item |
Part number |
Description |
|
1 |
8101945 |
INTAKE ELBOW |
|
2 |
4221168 |
THERMO-STARTER 24V |
|
3 |
4815431 |
TANK FOR PREHEATER |
|
4 |
4617012 |
BRACKET |
|
5 |
4647661 |
SWIVEL COUPLING |
|
6 |
4551101 |
SCREW CONNECTOR |
|
7 |
98405514 |
PIPE SOCKET |
|
8 |
19067987 |
WATER HOSE |
|
9 |
10450490 |
PIPE CLIP Ø16 MM |
|
10 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
11 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
12 |
4617014 |
HOSE |
|
13 |
4557649 |
WASHER |
|
14 |
11902017 |
LOCK PLUG M8 |
|
15 |
98474303 |
WASHER Ø8X14 MM SP=2,3 MM |
|
16 |
98414208 |
ELECT.V.VE.PREHEAT |
|
17 |
10389911 |
CYLIND-HEAD SCREW M5X25 MM |
|
18 |
17494634 |
SPRING WASHER Ø5,1X9,2 MM |
|
19 |
13543121 |
STUD M8X16 MM |
|
20 |
17037931 |
HEXAGON NUT M8X1,25 |
|
21 |
11198079 |
SPRING WASHER Ø8,2 MM |
|
22 |
12178990 |
CLIP |
|
23 |
4864078 |
BANJO BOLT M8X1,25 |
