8210i03.00

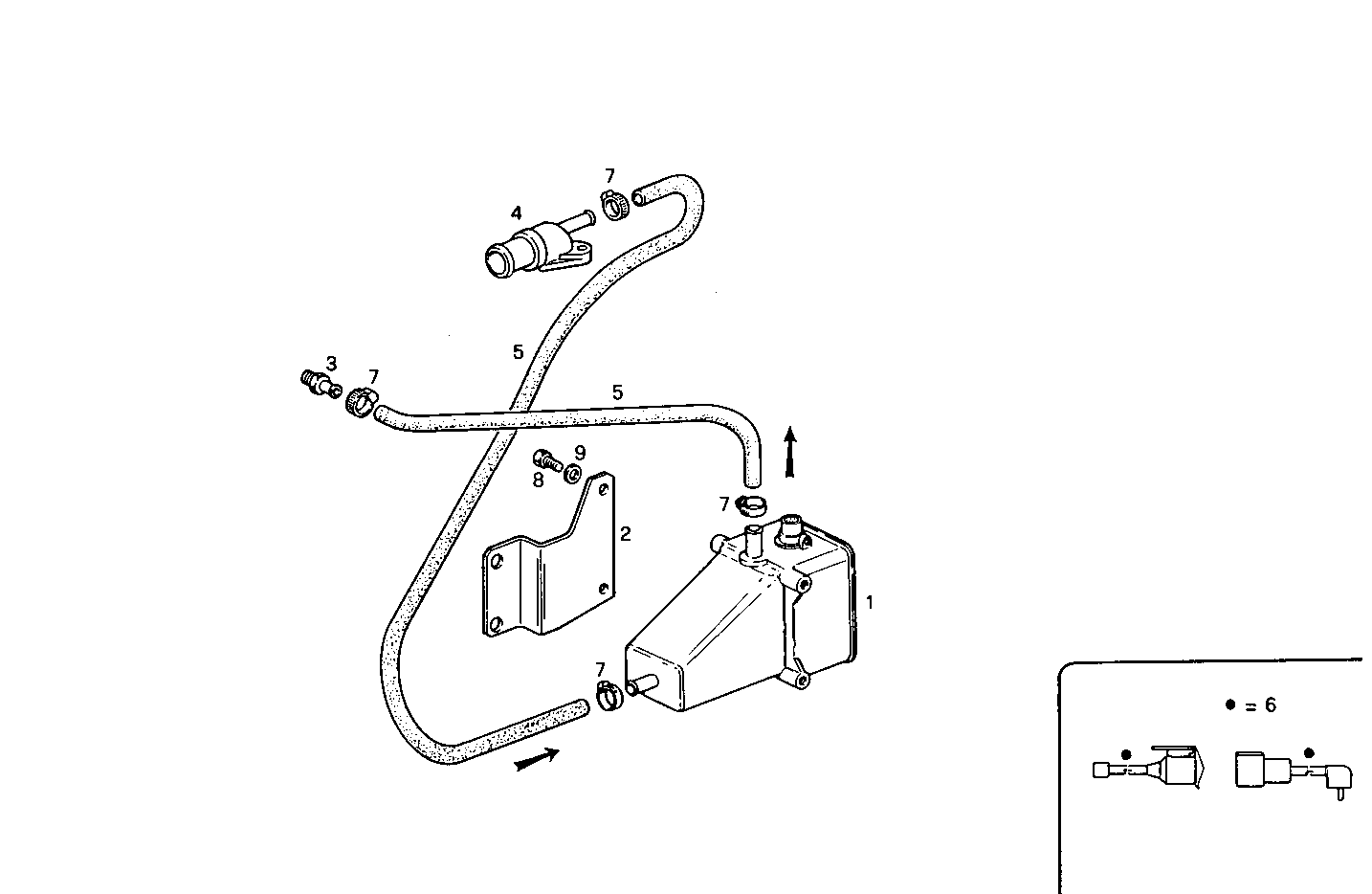

A20040009 WATER PREHEATER DEVICE - 220V
| Item | Part number | Description |
|---|---|---|
| 1 | 8011642 | HEATER 1500W |
| 2 | 8006930 | SUPPORT |
| 3 | 4616630 | THREADED UNION |
| 4 | 8111812 | PIPE SOCKET |
| 5 | 8111813 | RUBBER SLEEVE |
| 6 | 8009376 | WIRE/CABLE ASSY |
| 7 | 17764492 | CLIP Ø16-25 MM |
| 8 | 10902121 | HEXAGON BOLT M6X14 MM |
| 9 | 11197779 | SPRING WASHER Ø6X12 MM |
