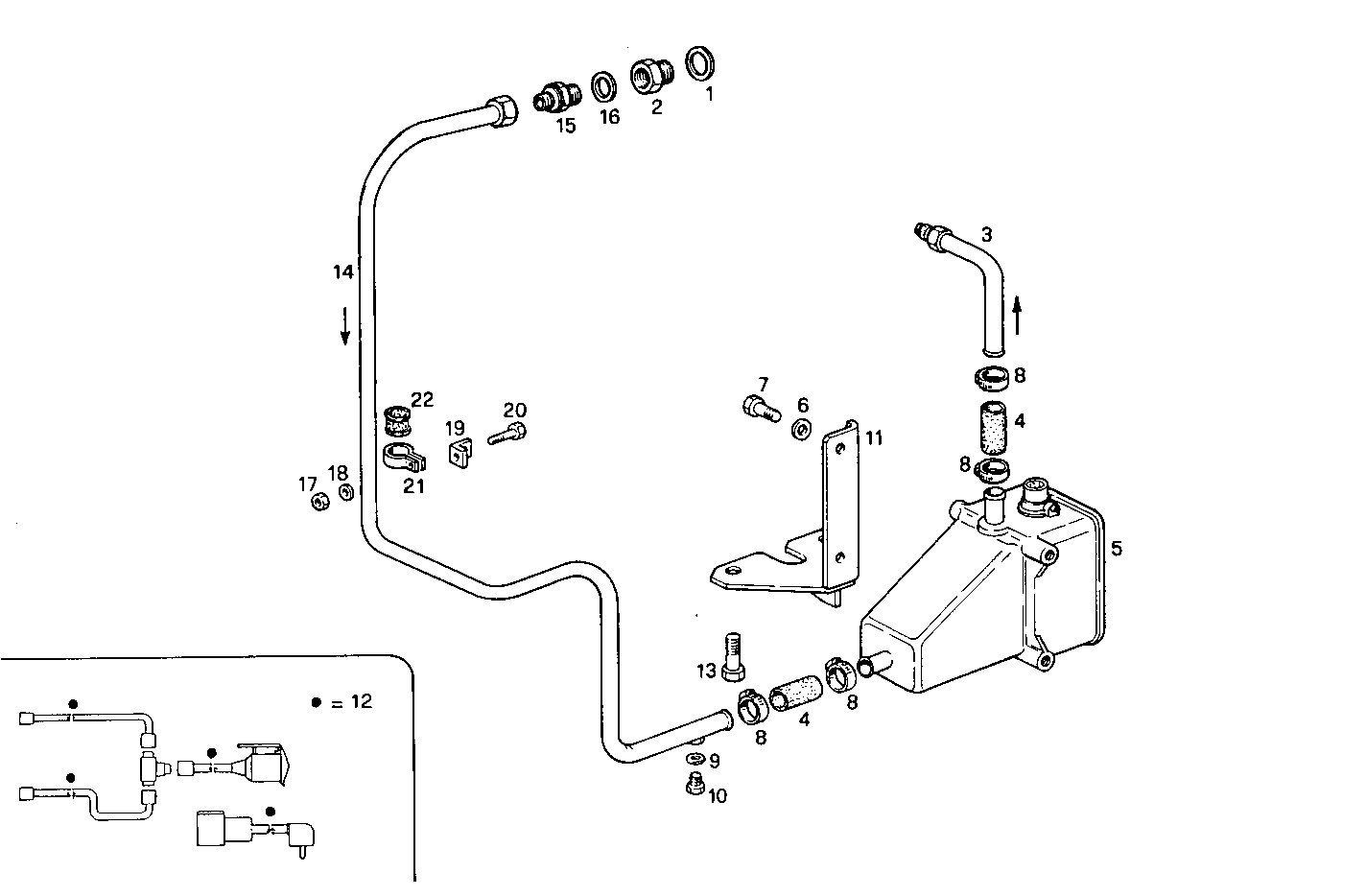

| Item |
Part number |
Description |
|
1 |
98429281 |
SEAL GASKET Ø24X31 MM SP=1,5 MM |
|
2 |
8005151 |
PIPE SOCKET M24X1,5/M16X1,5 |
|
3 |
8014653 |
WATER PIPE |
|
4 |
8109346 |
RUBBER SLEEVE |
|
5 |
8011642 |
HEATER 1500W |
|
6 |
17088474 |
WASHER Ø6X12 MM |
|
7 |
10902121 |
HEXAGON BOLT M6X14 MM |
|
8 |
17764592 |
CLIP Ø20/32 MM |
|
9 |
4858605 |
WASHER Ø8X12 MM |
|
10 |
10300911 |
PLUG M8 |
|
11 |
8012615 |
SUPPORT |
|
12 |
8009376 |
WIRE/CABLE ASSY |
|
13 |
10923621 |
HEXAGON BOLT M10X1,25X35 MM |
|
14 |
8015347 |
WATER PIPE |
|
15 |
8011696 |
PIPE SOCKET M16X1,5/M22X1,5 |
|
16 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
17 |
17037931 |
HEXAGON NUT M8X1,25 |
|
18 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
19 |
8007133 |
RETAINER |
|
20 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
21 |
4763804 |
FASTENING BRACKET |
|
22 |
4757122 |
RUBBER PAD |
