8210i03.00

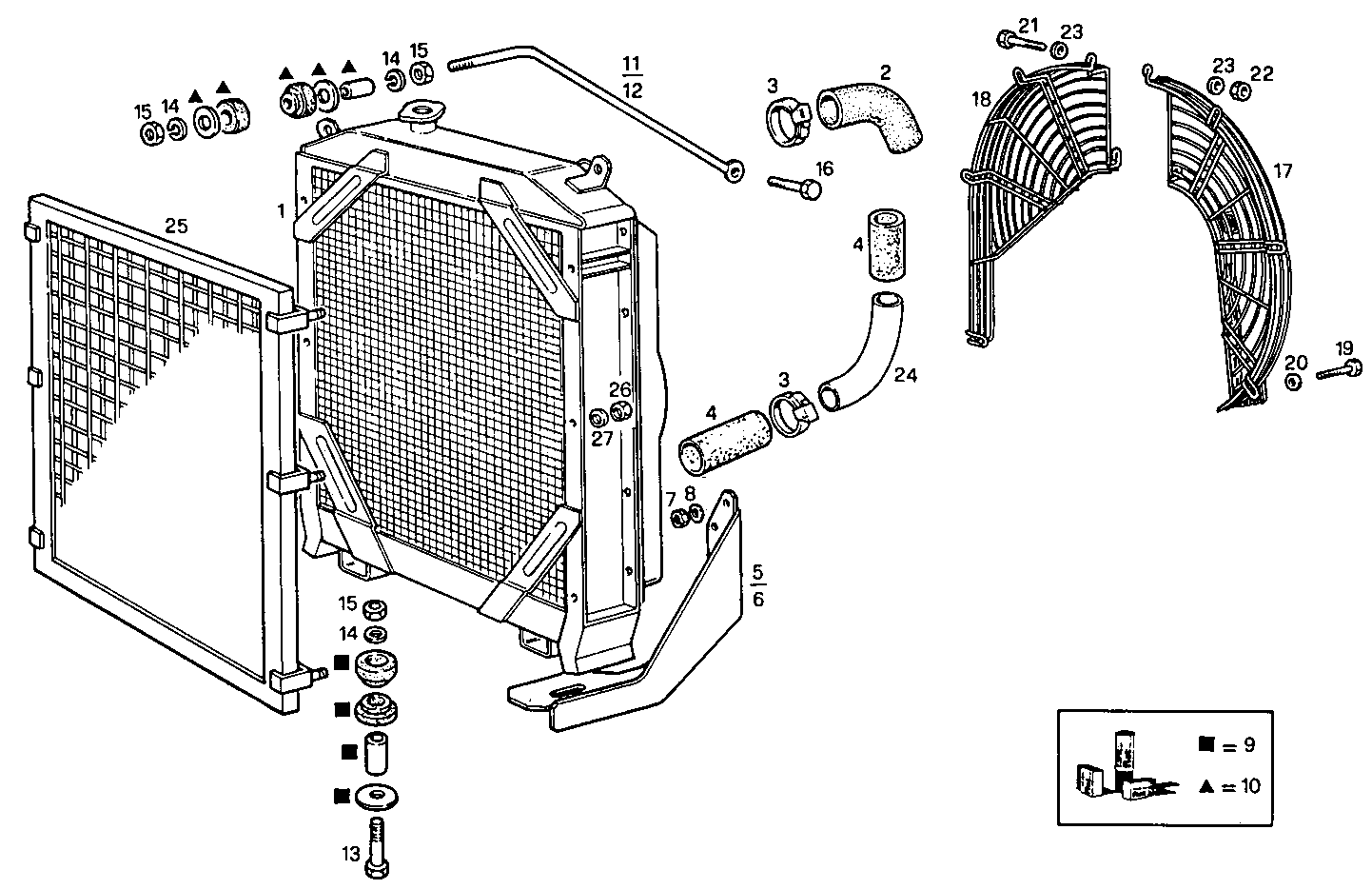

A22460002 OVERSIZE RADIATOR - reduced air circulation

Iveco/FPT OVERSIZE RADIATOR

Item Part number Description
1 8113398 WATER RADIATOR ASSY
2 4580242 RUBBER SLEEVE
3 12174790 CLIP Ø47-67 MM
4 10140086 CONNECTOR SLEEVE
5 8103556 SUPPORT LEFT
6 8103557 SUPPORT RIGHT
7 12164011 HEXAGON NUT M14X1,5 [up to…]
8 11200179 SPRING WASHER Ø14X32 MM
9 8090977 KIT-RADIATOR A.S. COMPLETE
10 8090413 KIT-RADIATOR A.S. COMPLETE
11 4934517 TIE ROD RIGHT
12 4919975 TIE ROD LEFT
13 15541221 HEXAGON BOLT M12X1,25X70 MM [up to 565948]
14 11198779 SPRING WASHER Ø13 MM
15 16101511 HEXAGON NUT M12X1,25
16 11343721 HEXAGON BOLT M10X65 MM
17 8008670 PROTECTION LEFT
18 8008669 PROTECTION RIGHT
19 15970621 SCREW M10X1,25X22
20 17090474 SPRING WASHER Ø10X27 MM SP=2,5
21 16043621 HEXAGON BOLT M8X25 MM
22 17037931 HEXAGON NUT M8X1,25
23 17089771 WASHER Ø8X22X1,5 MM
24 4919978 WATER PIPE
25 4931985 PROTECTION
27 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
