8210i03.00

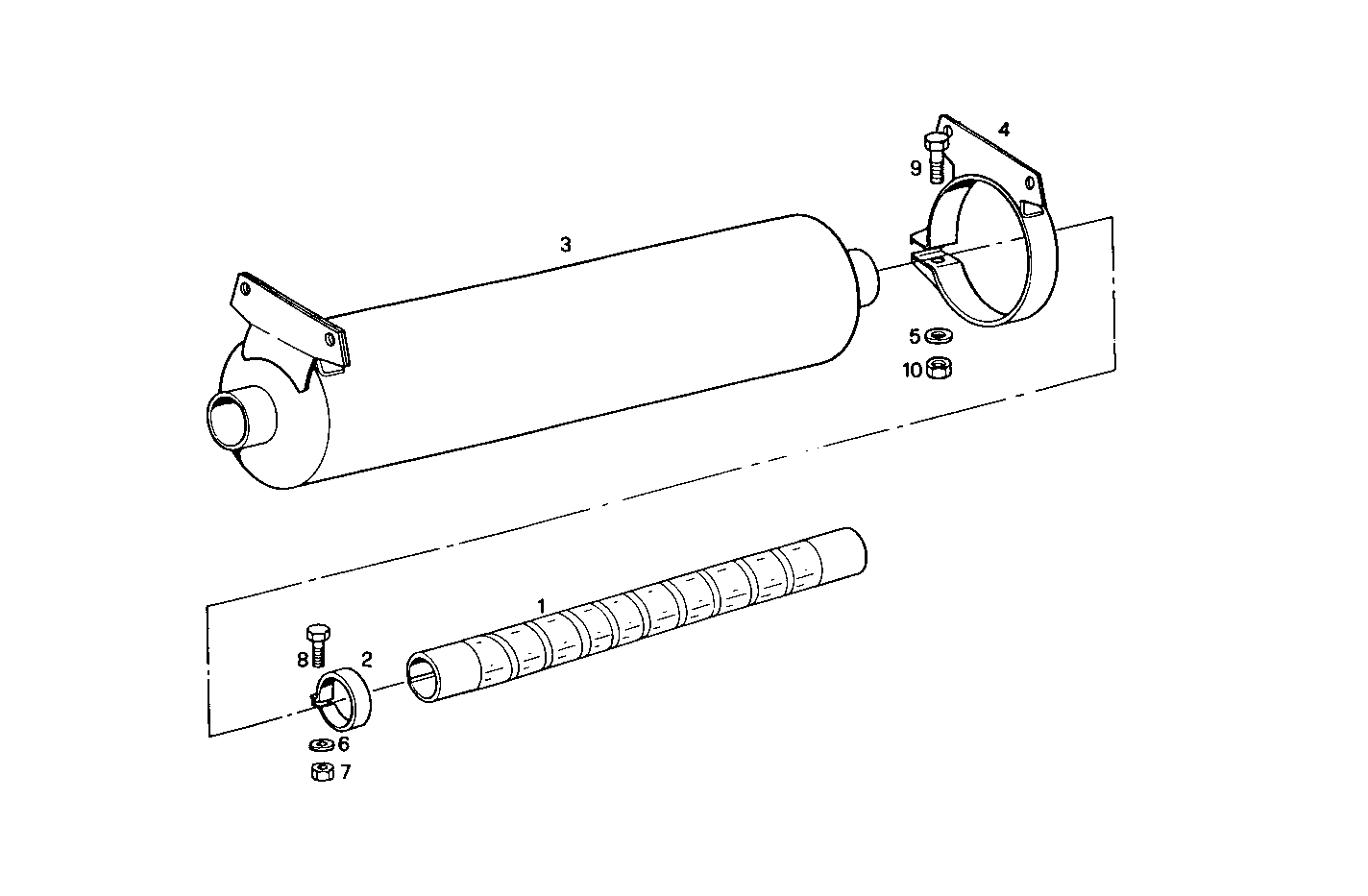

A23030009 SILENCER - loose with flexible - 1800 RPM
| Item | Part number | Description |
|---|---|---|
| 1 | 4514684 | EXHAUST HOSE |
| 2 | 4514685 | CLIP |
| 3 | 4621723 | SILENCER |
| 4 | 4621724 | CLIP |
| 5 | 11198079 | SPRING WASHER Ø8,2 MM |
| 6 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 7 | 17038221 | HEXAGON NUT M10 |
| 8 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 9 | 16043621 | HEXAGON BOLT M8X25 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
