8210i03.00

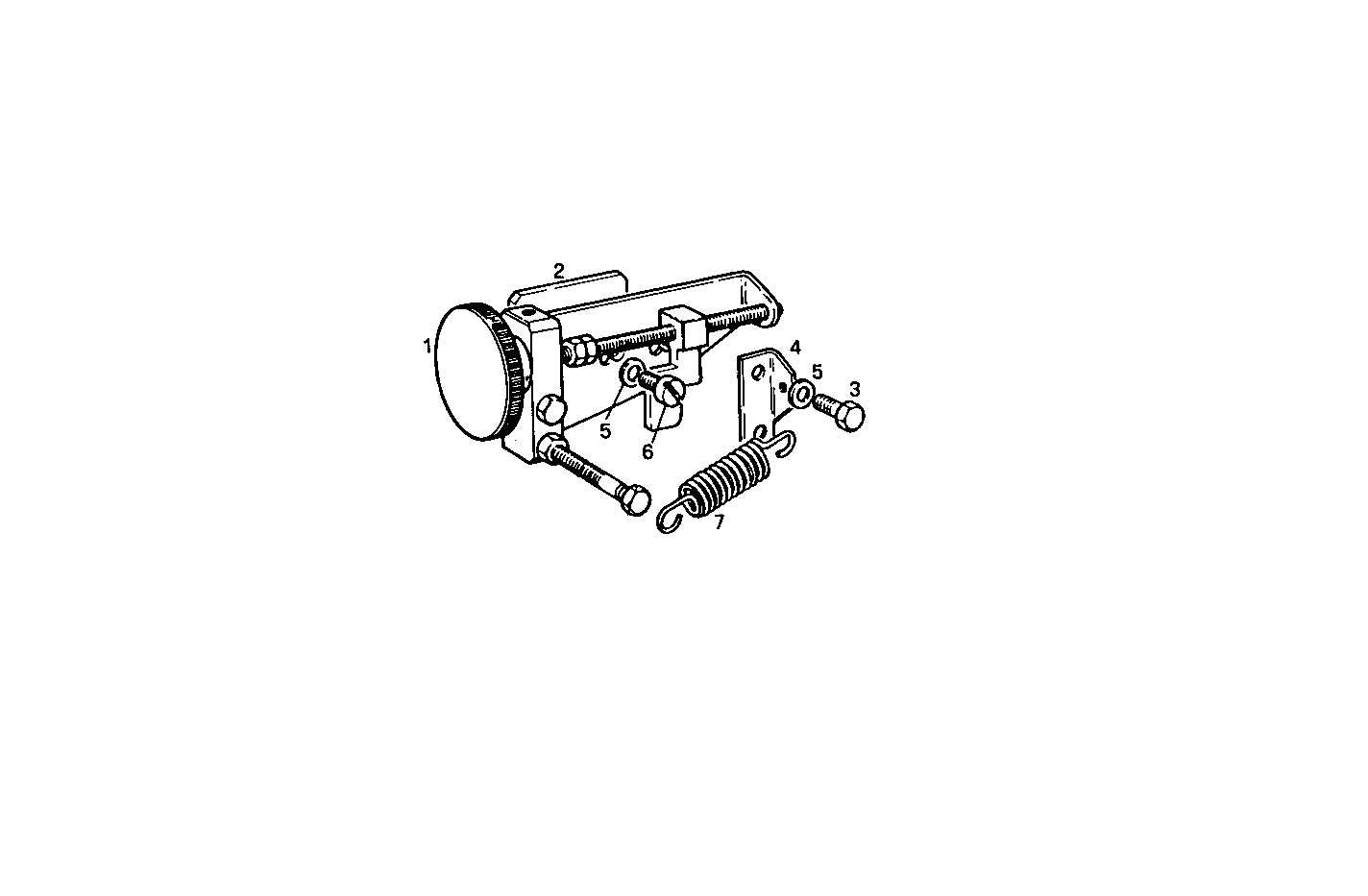

A24060005 PRECISION ADJUSTMENT ACCELERATOR - genset

Iveco/FPT PRECISION ADJUSTMENT ACCELERATOR

Item Part number Description
1 8108373 HAND ACCELERATOR
2 8108374 SPACING BAR
3 10902121 HEXAGON BOLT M6X14 MM
4 8105825 RETAINER
5 17088474 WASHER Ø6X12 MM
6 10376711 CYLIND-HEAD SCREW M6X16 MM (4.8)
7 8104855 SPRING
