8210i03.00

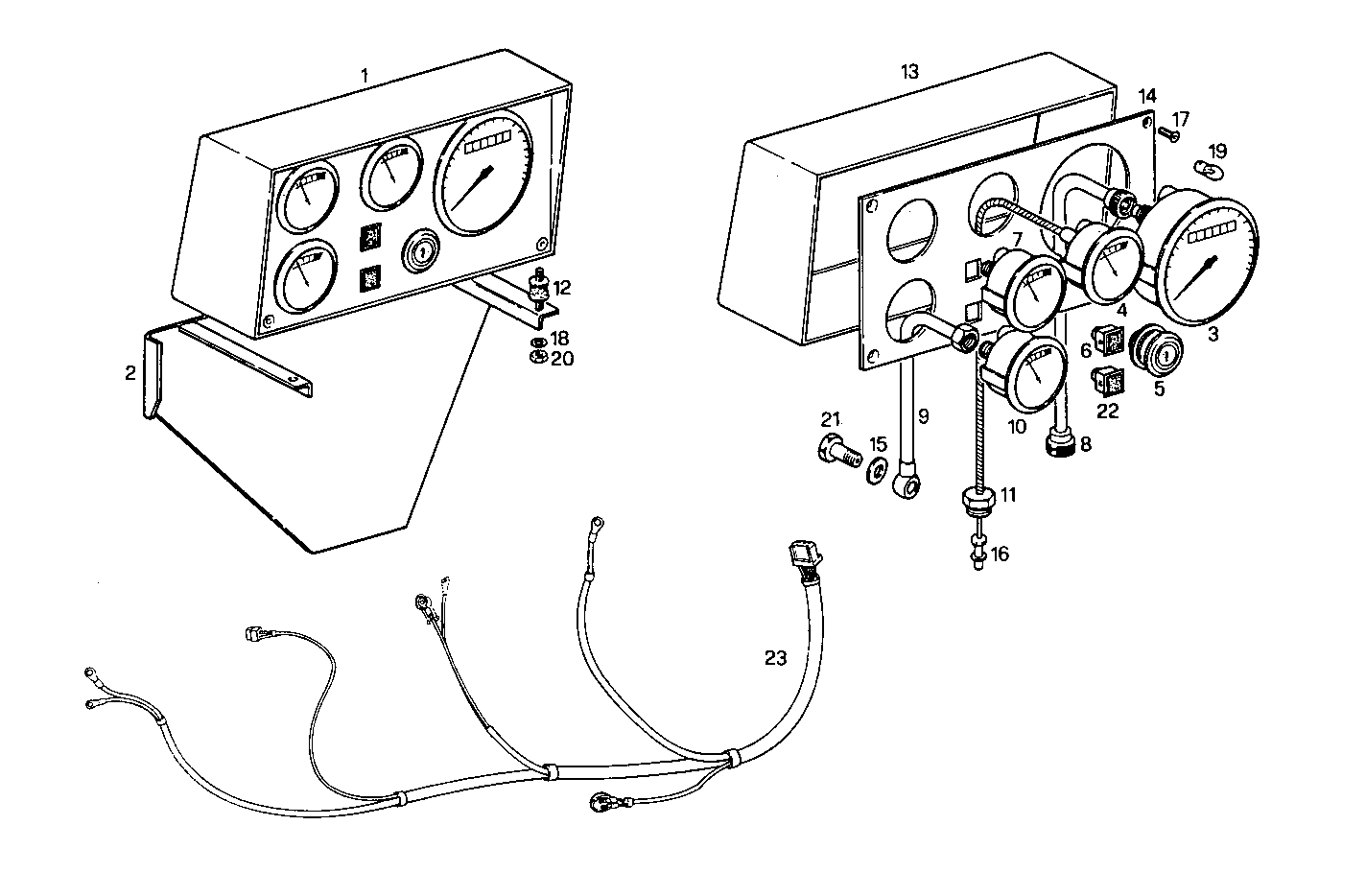

A38170001 MECHANICAL INSTRUMENTS PANEL - for TEDDINGTON - 24V

Iveco/FPT MECHANICAL INSTRUMENTS PANEL

Item Part number Description
1 8105762 INSTRUMENTS BOARD ASSY
2 4934558 RETAINER
3 4928122 REVOLUTION COUNTER
4 4132980 THERMOMETER
5 8103708 SWITCH
6 8005921 WARNING LIGHT
7 4934630 AMMETER [up to ...]
8 8113280 CONTROL ASSEMBLY
9 4931732 OIL LINE
10 4936123 PRESSURE GAUGE
11 4916203 PIPE SOCKET
12 4910949 RUBBER LUG
13 8105380 SUPPORT
14 8105764 INSTRUMENTS BOARD
15 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
17 8103662 SCREW M4X10
18 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
19 14142490 LAMP
20 15896211 HEXAGON NUT M6
21 38800427 SCREW CONNECTOR
22 8005922 LUMINOUS INDICATOR
23 4934522 ENGINE HARNESS
