8210i03.00A520

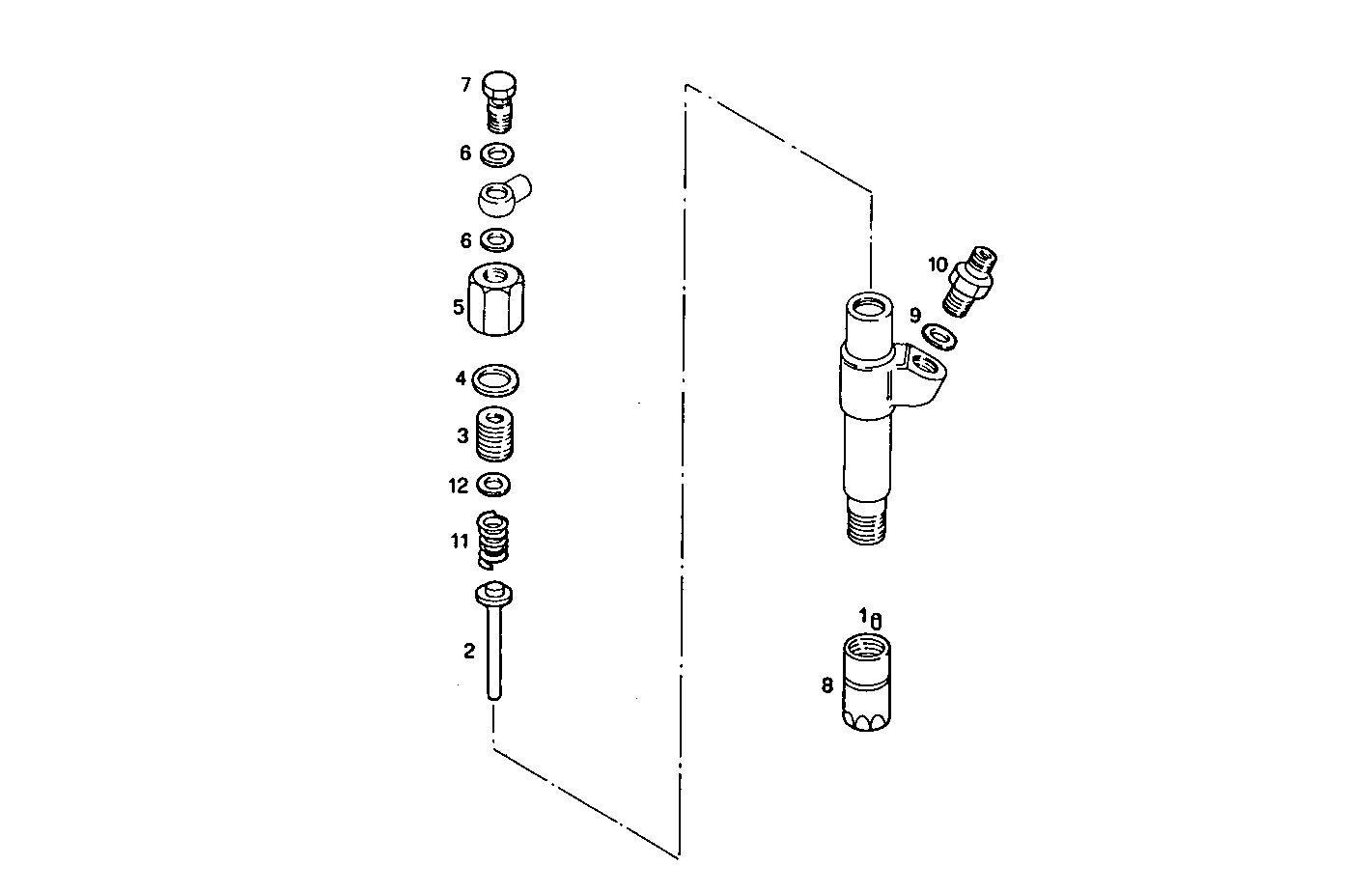

1430.010 NOZZLE HOLDER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 9928376 | PARALLEL PIN |
| 2 | 9928403 | ROD |
| 3 | 9928397 | ADJUSTING SCREW |
| 4 | 9928402 | WASHER |
| 5 | 9928398 | NUT |
| 6 | 9928396 | GASKET |
| 7 | 9928367 | SCREW CONNECTOR |
| 8 | 9928404 | FASTENING RING |
| 9 | 9929981 | GASKET |
| 10 | 9928980 | THREADED UNION |
| 11 | 9928399 | SPRING |
| 12 | 9928401 | RING |
