8210i03.00A520

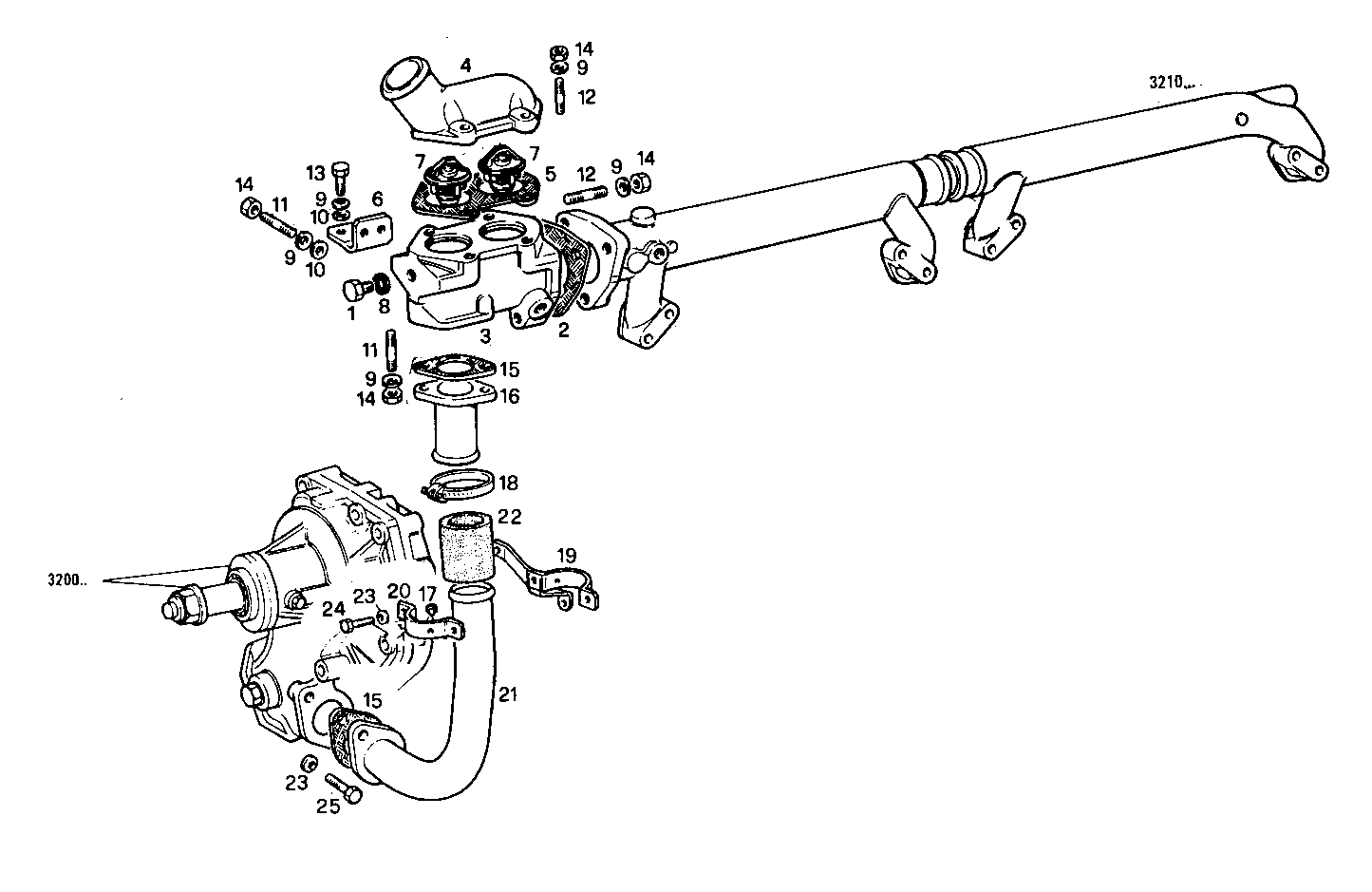

3220.006 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 4595833 | THREADED PLUG M20X1,5 |
| 2 | 4862977 | FLAT ENGINE GASKET |
| 3 | 4614884 | THERMOSTAT BODY |
| 4 | 4614886 | INTAKE ELBOW |
| 5 | 4856984 | FLAT ENGINE GASKET |
| 6 | 4616670 | RETAINER |
| 7 | 4703088 | THERMOSTAT |
| 8 | 10284585 | SEAL GASKET Ø20,2 MM |
| 9 | 11198071 | SPRING WASHER Ø8X15 SP=1,4 MM |
| 10 | 12646701 | WASHER Ø8X20 MM |
| 11 | 13543321 | STUD M8X16X20 MM |
| 12 | 13543521 | STUD M8X16X25 MM |
| 13 | 16043421 | HEXAGON BOLT M8X20 MM |
| 14 | 17037931 | HEXAGON NUT M8X1,25 |
| 15 | 4864028 | FLAT ENGINE GASKET |
| 16 | 98450714 | WATER PIPE |
| 17 | 4568427 | RUBBER PAD |
| 18 | 17764792 | HOSE CLIP Ø32-50 MM |
| 19 | 4616668 | RETAINER |
| 20 | 4614307 | CLIP |
| 21 | 98450712 | WATER PIPE |
| 22 | 98443283 | TURBOCHARGER HOSE |
| 24 | 16605424 | SCREW M8X16 MM (8.8) |
| 25 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
