8210i03.00A520

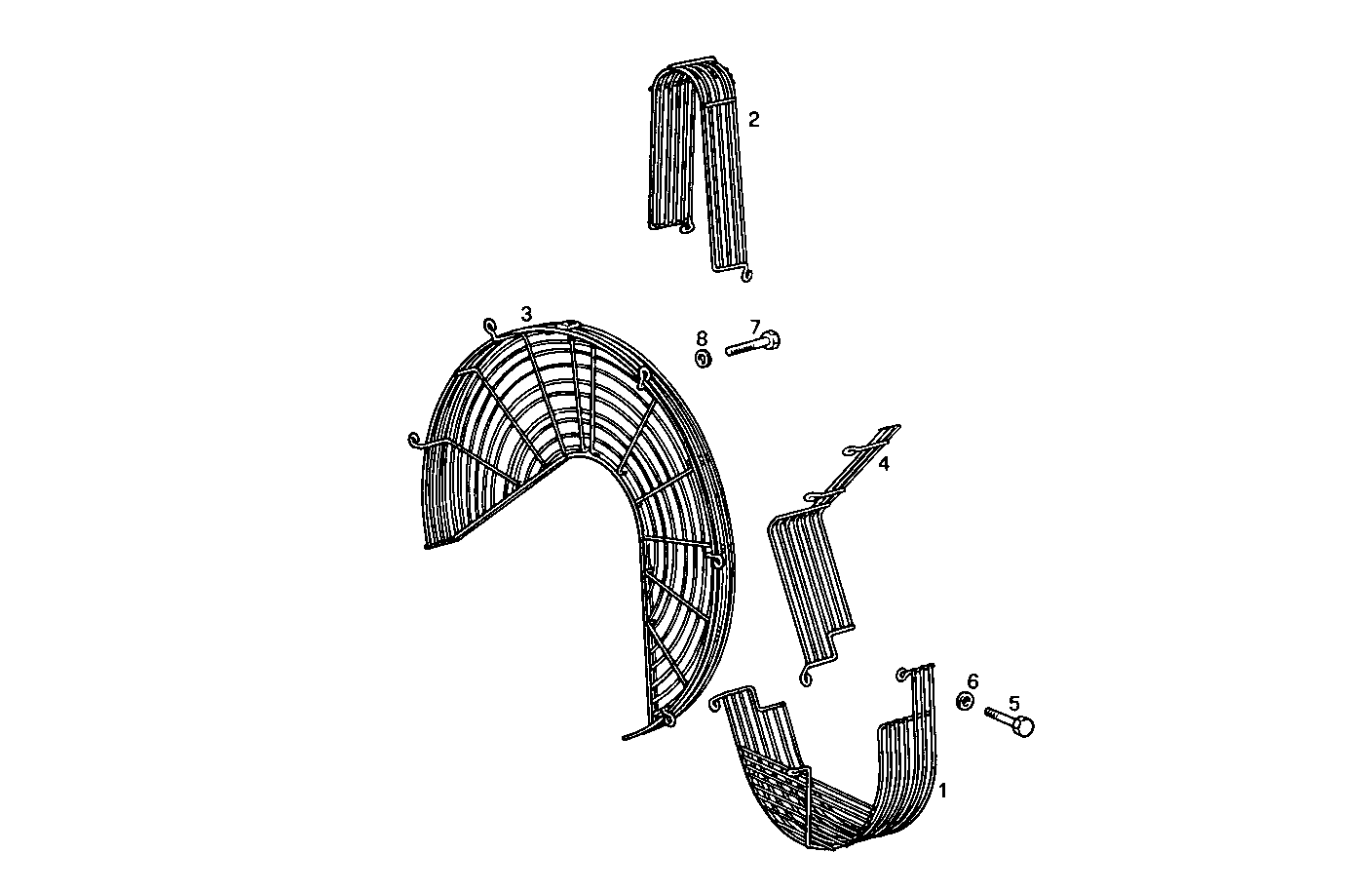

A48010004 GUARD - for fan and belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8102956 | PROTECTION |
| 2 | 8102957 | PROTECTION |
| 3 | 8102958 | PROTECTION |
| 4 | 8102959 | PROTECTION |
| 5 | 15970621 | SCREW M10X1,25X22 |
| 6 | 11190679 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 7 | 10902221 | HEXAGON BOLT M6X16 MM |
| 8 | 11194779 | WASHER Ø6X18X1,4 MM |
