8210i03.00A580

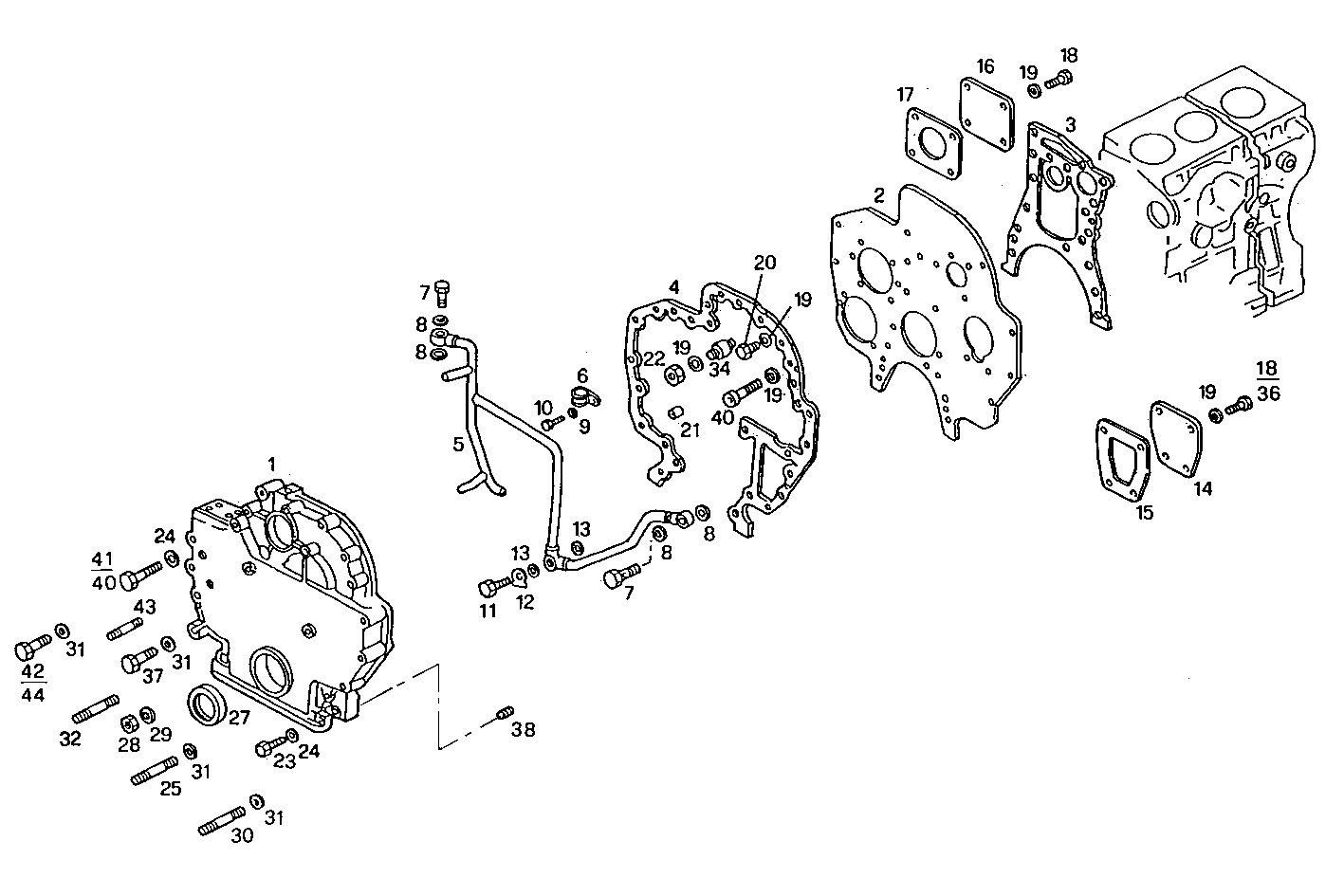

0430.011/01 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4792306 FRONT C.CASE COVER ASSY
2 4756344 PLATE
3 99431449 FLAT ENGINE GASKET
4 98462005 GASKET
5 4679631 OIL LINE
6 852410 FASTENING BRACKET
7 4707984 SCREW CONNECTOR
8 10262760 SEAL GASKET Ø8,2 MM
9 17094914 WASHER 8x16
10 16042924 SCREW M8X1,25X10 MM
11 4679620 SCREW CONNECTOR
12 852409 LOCKING PLATE Ø10,5 MM
13 10279460 SEAL GASKET Ø10X16 MM SP=0,5
14 4687341 COVER
15 4864032 FLAT ENGINE GASKET
16 4547528 COVER
17 4863975 FLAT ENGINE GASKET
18 15970524 HEXAGON BOLT M10X1,25X20
19 17090274 WASHER Ø10X20 MM
20 15970734 HEXAGON BOLT M10X1,25X25
21 10837810 DOWEL PIN Ø12 MM
22 17038221 HEXAGON NUT M10
23 11288024 HEXAGON BOLT M10X1,25X60 MM
24 17097124 WASHER 10x21
25 13453821 STUD M10X25X35 MM
27 98467211 WASHER FRONT
28 17038531 HEXAGON NUT M12X1,5
29 12646924 WASHER Ø12X28 MM
30 13454021 STUD M10X25X45 MM
31 17094924 WASHER Ø8X16 MM
32 13453724 STUD M10X25X30
34 13449330 STUD M10X15X20 MM
36 15970921 HEXAGON BOLT M10X1,25X35 MM
38 17274710 DOWEL PIN Ø8X16 MM
40 16605734 HEXAGON BOLT M8X30 MM
41 16606324 HEXAGON BOLT M8X60 MM
42 16606624 HEXAGON BOLT M8X80 MM
43 4782501 STUD L=165 MM
44 16606424 HEXAGON BOLT M8X65 MM
