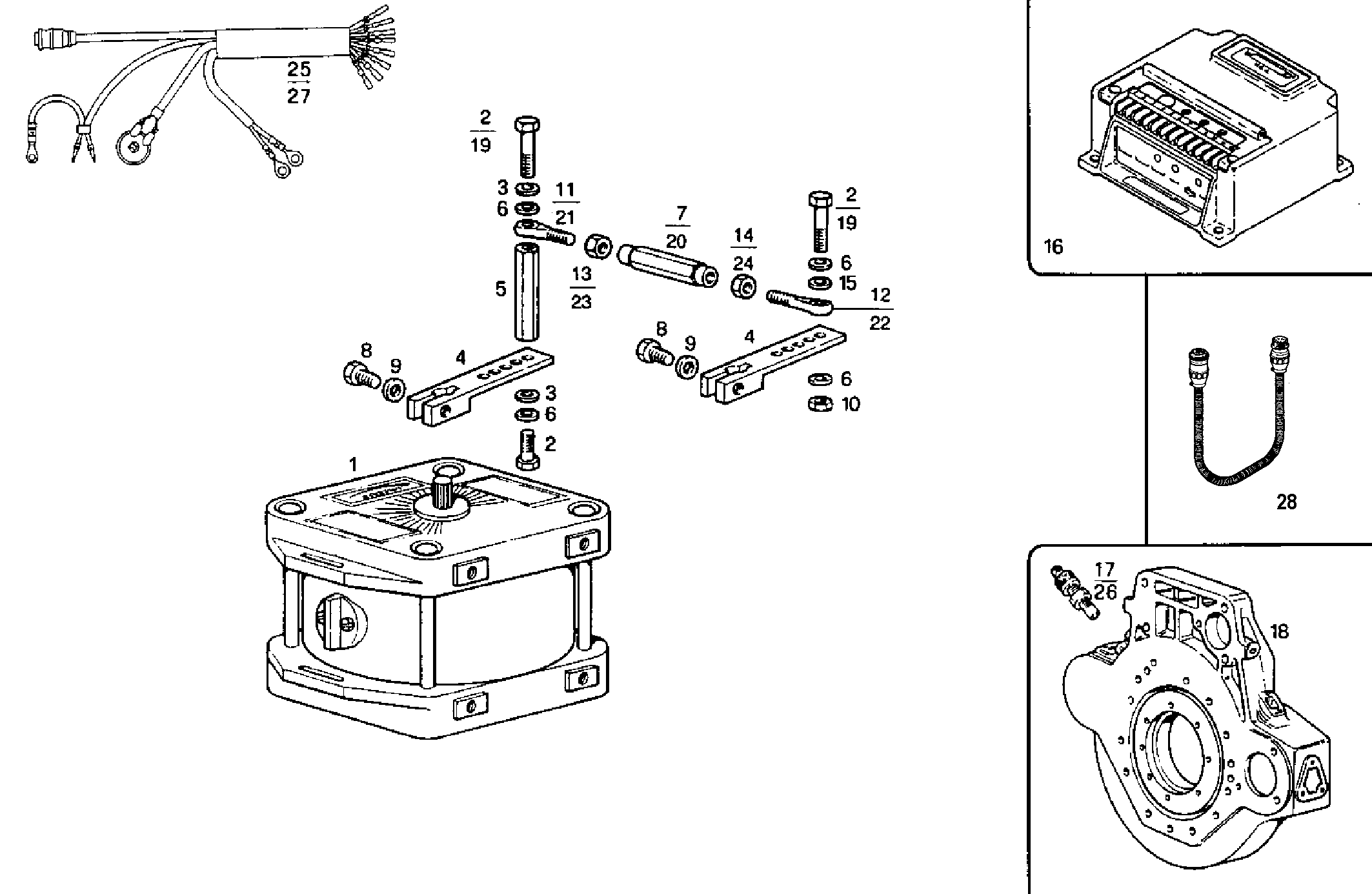

A28010013/01 ELECTRONIC GOVERNOR WOODWARD - 24V

Iveco/FPT ELECTRONIC GOVERNOR WOODWARD

Item Part number Description
1 8107492 INJECTION CONTROL ASSY
2 16602224 HEXAGON BOLT M5X20 MM
3 11199279 SPRING WASHER Ø5X10X0,5 MM
4 8108603 LEVER
5 8108656 SPACING BAR
6 14497801 WASHER Ø5X9,5 MM
7 8108606 EXTENSION ASSY [up to 10-93]
8 16603724 HEXAGON BOLT M6X20 MM (8.8)
9 17088474 WASHER Ø6X12 MM
10 17152621 NUT M5X0,8
11 8114008 BANJO COUPLING RIGHT [up to 10-93]
12 8114009 TIE ROD LEFT [up to 10-93]
13 8109397 NUT RIGHT [up to 10-93]
14 8109398 NUT LEFT [up to 10-93]
15 12638101 WASHER Ø5,15 MM
16 8103081 INJECTION CONTROL
17 8018673 PICK-UP
18 99481101 FLYWHEEL HOUSING ASSY
19 8016470 SCREW M5
20 8016413 TIE ROD M6X1 [up to 06-95]
21 8016587 TIE ROD RIGHT [up to 06-95]
22 8016588 TIE ROD LEFT [up to 06-95]
23 15896240 NUT M6 - RIGHT [up to 06-95]
24 10789640 NUT M6 - LEFT [up to 06-95]
25 8018791 ENGINE HARNESS
26 4933865 TRANSMITTER
28 8022497 EXTENSION
