8210M22.10

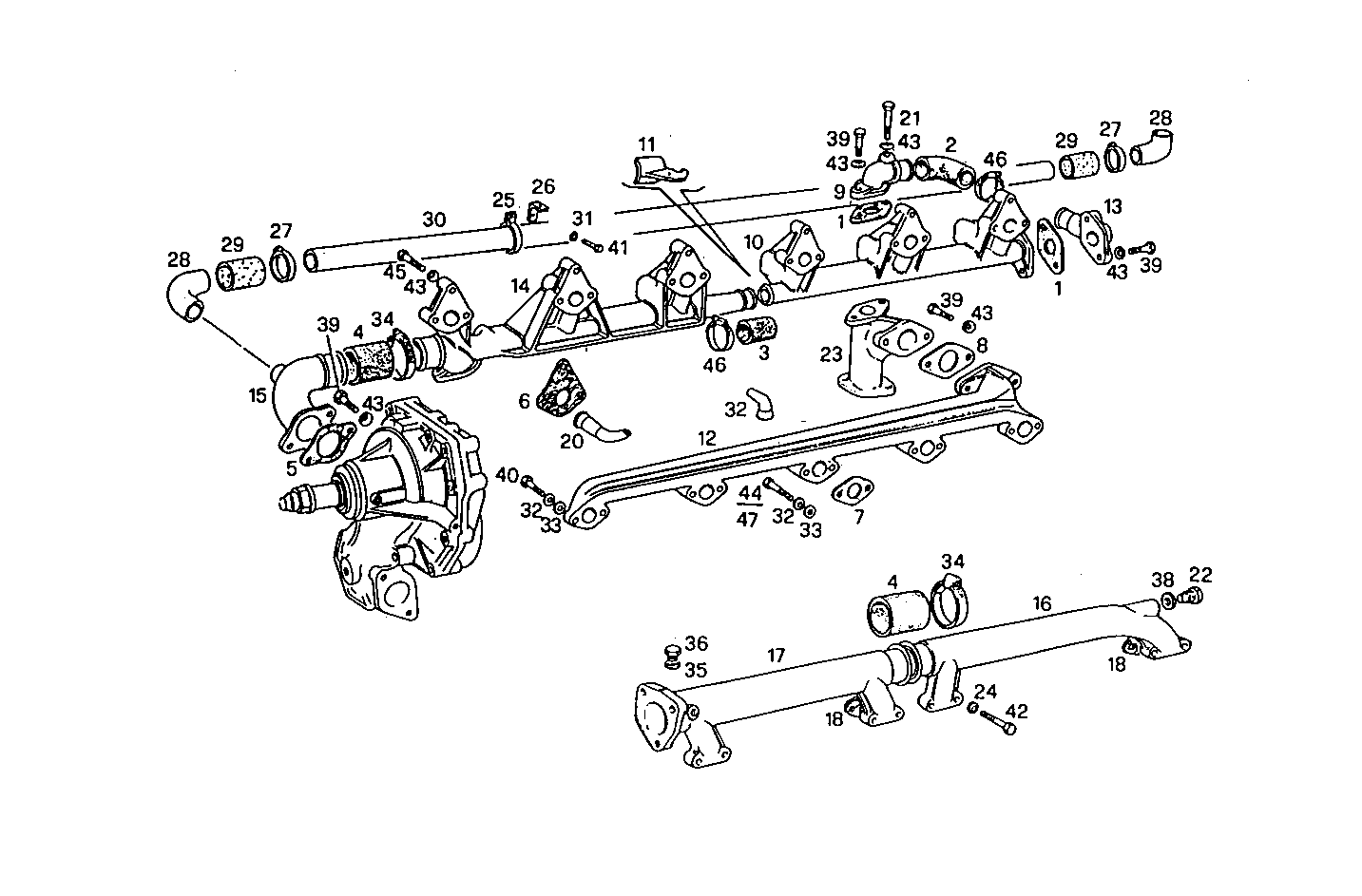

3210.020/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4863947 FLAT ENGINE GASKET
2 4889939 WATER HOSE
3 4787290 WATER HOSE
4 98420260 WATER HOSE
5 4606046 GASKET
6 4852099 FLAT ENGINE GASKET
7 98415624 FLAT ENGINE GASKET
8 4863951 FLAT ENGINE GASKET
9 4640192 EXHAUST ELBOW
10 4640055 WATER MANIFOLD REAR
11 4682734 PROTECTION REAR
12 98471454 WATER MANIFOLD
13 4640195 WATER PIPE
14 4640870 WATER MANIFOLD FRONT
15 8114103 WATER PIPE
16 4616590 WATER MANIFOLD REAR
17 4919928 WATER PIPE FRONT
18 4852097 FLAT ENGINE GASKET
20 4623879 PIPE
21 16044221 HEXAGON BOLT M8X50 MM
22 16992340 THREADED PLUG M14X1,5
23 4651305 INTAKE ELBOW
24 17095114 WASHER Ø10X21 MM
25 4928851 CLIP
26 8102227 RETAINER
27 17764790 CLIP Ø32/50 MM
28 4919714 WATER HOSE
29 8110617 RUBBER SLEEVE
30 8114098 WATER PIPE
31 11194779 WASHER Ø6X18X1,4 MM
32 4852210 WASHER
33 4852211 WASHER
34 17764992 CLIP Ø50-70 MM
35 4858609 WASHER Ø16X22 MM SP=1,5 MM
36 16992440 THREADED PLUG M16X1,5
38 4858608 SEAL GASKET dia.14x19,5x1,5
39 16605734 HEXAGON BOLT M8X30 MM
40 16606024 SCREW M8X45 MM
41 16603524 SCREW M6X12 MM (8.8)
42 15888734 HEXAGON BOLT M10X1,25X55 MM
43 17094914 WASHER 8x16
44 16603924 HEXAGON BOLT M6X30 MM
45 16605924 SCREW M8X40 MM
46 17764792 HOSE CLIP Ø32-50 MM
47 16605424 SCREW M8X16 MM (8.8)
