8210M22.10

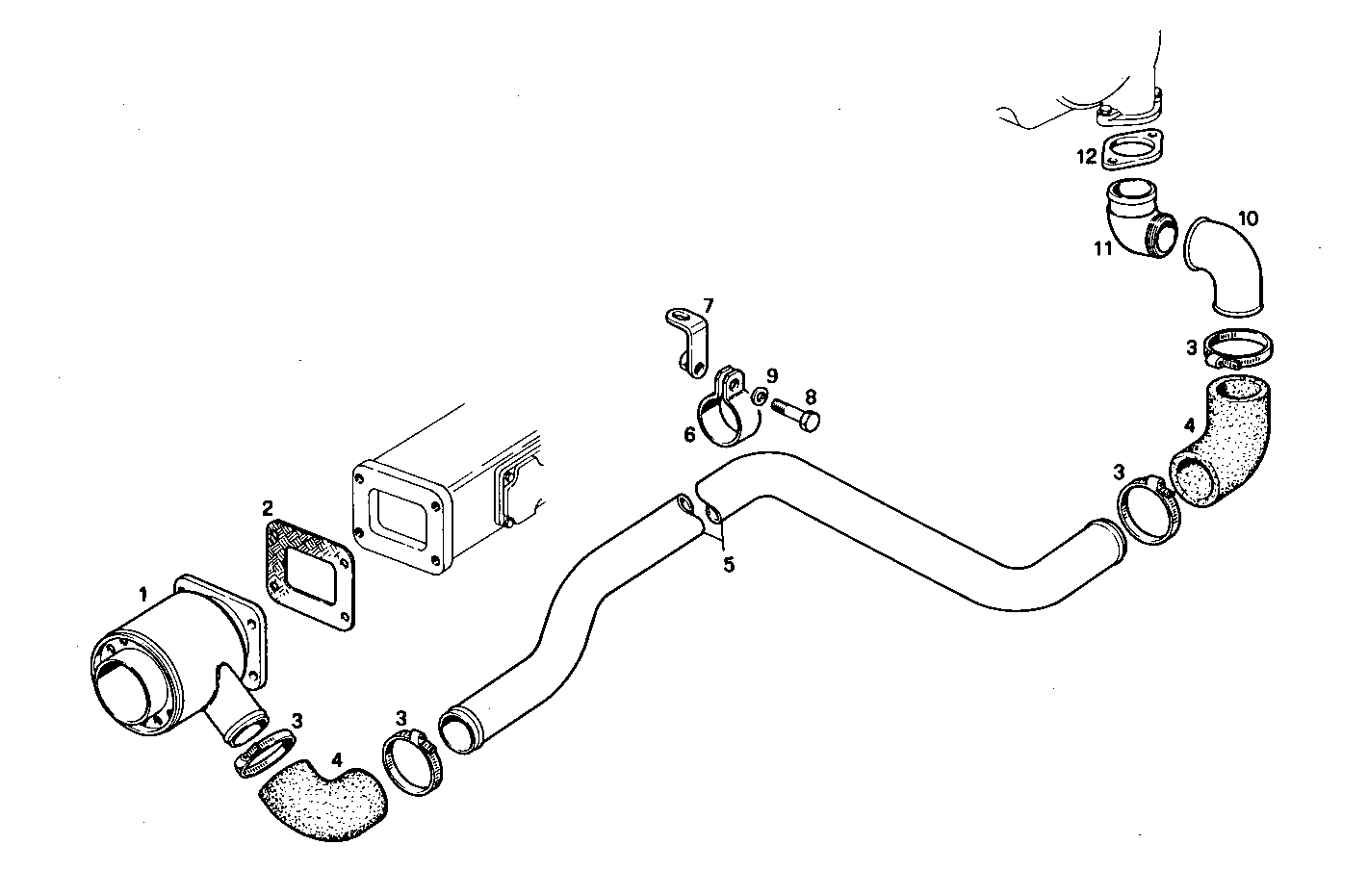

A40050012 GAS-WATER MIXER WITH STERN OUTLET
| Item | Part number | Description |
|---|---|---|
| 1 | 8010499 | EXHAUST COOL. ELBOW |
| 2 | 4512366 | GASKET |
| 3 | 17764993 | CLIP Ø50/70 MM |
| 4 | 8110487 | WATER HOSE |
| 5 | 8010515 | WATER HOSE |
| 6 | 4640545 | CLIP |
| 7 | 8100819 | RETAINER |
| 8 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 8109665 | SEA WATER PIPE INLET |
