8210M22.30

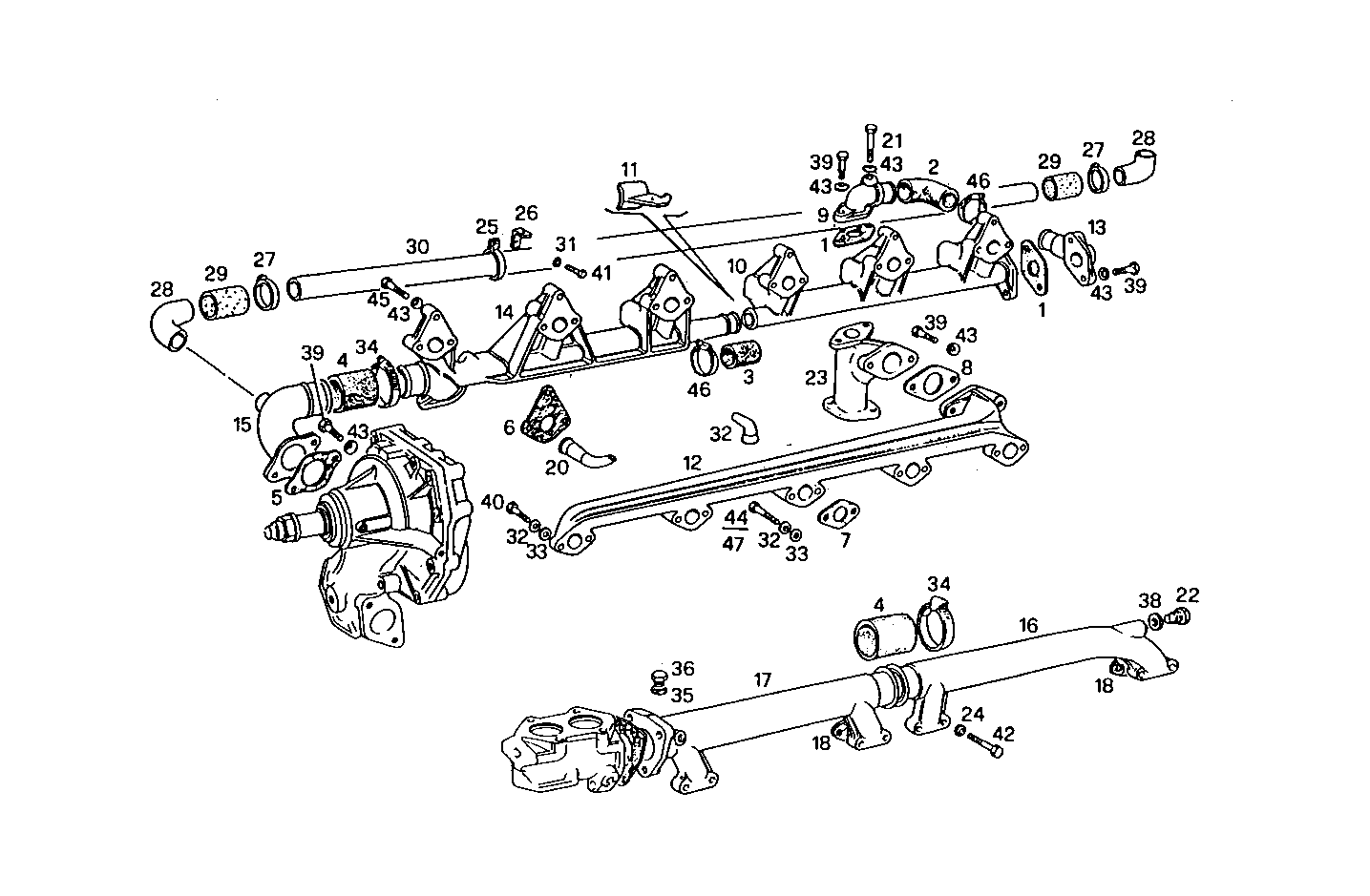

3210.056/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4863947 FLAT ENGINE GASKET
2 4889939 WATER HOSE
3 4787290 WATER HOSE
4 98421381 WATER HOSE
5 4864033 FLAT ENGINE GASKET
6 99456733 FLAT ENGINE GASKET
7 500308780 FLAT ENGINE GASKET
8 4863951 FLAT ENGINE GASKET
9 4640192 EXHAUST ELBOW
10 4640055 WATER MANIFOLD REAR
11 4682734 PROTECTION REAR
12 98471454 WATER MANIFOLD
13 4640195 WATER PIPE
14 4640870 WATER MANIFOLD FRONT
15 8114103 WATER PIPE
16 4616590 WATER MANIFOLD REAR
17 4929131 WATER MANIFOLD
18 4852097 FLAT ENGINE GASKET
20 4623879 PIPE
21 16606124 HEXAGON BOLT M8X50 MM
22 4871068 PLUG ASSY
23 4651305 INTAKE ELBOW
24 17097124 WASHER 10x21
25 4928851 CLIP
26 8102227 RETAINER
27 17764792 HOSE CLIP Ø32-50 MM
28 4919714 WATER HOSE
29 8110617 RUBBER SLEEVE
30 8114098 WATER PIPE
31 17088474 WASHER Ø6X12 MM
32 4852210 WASHER
33 4852211 WASHER
34 17764992 CLIP Ø50-70 MM
35 4858609 WASHER Ø16X22 MM SP=1,5 MM
36 16992440 THREADED PLUG M16X1,5
38 10260360 SEAL GASKET Ø24,3 MM
39 16605734 HEXAGON BOLT M8X30 MM
40 16603924 HEXAGON BOLT M6X30 MM
41 16603524 SCREW M6X12 MM (8.8)
42 15888734 HEXAGON BOLT M10X1,25X55 MM
43 17094914 WASHER 8x16
44 16606024 SCREW M8X45 MM
45 16605934 HEXAGON BOLT M8X40 MM (10.9)
47 16605424 SCREW M8X16 MM (8.8)
