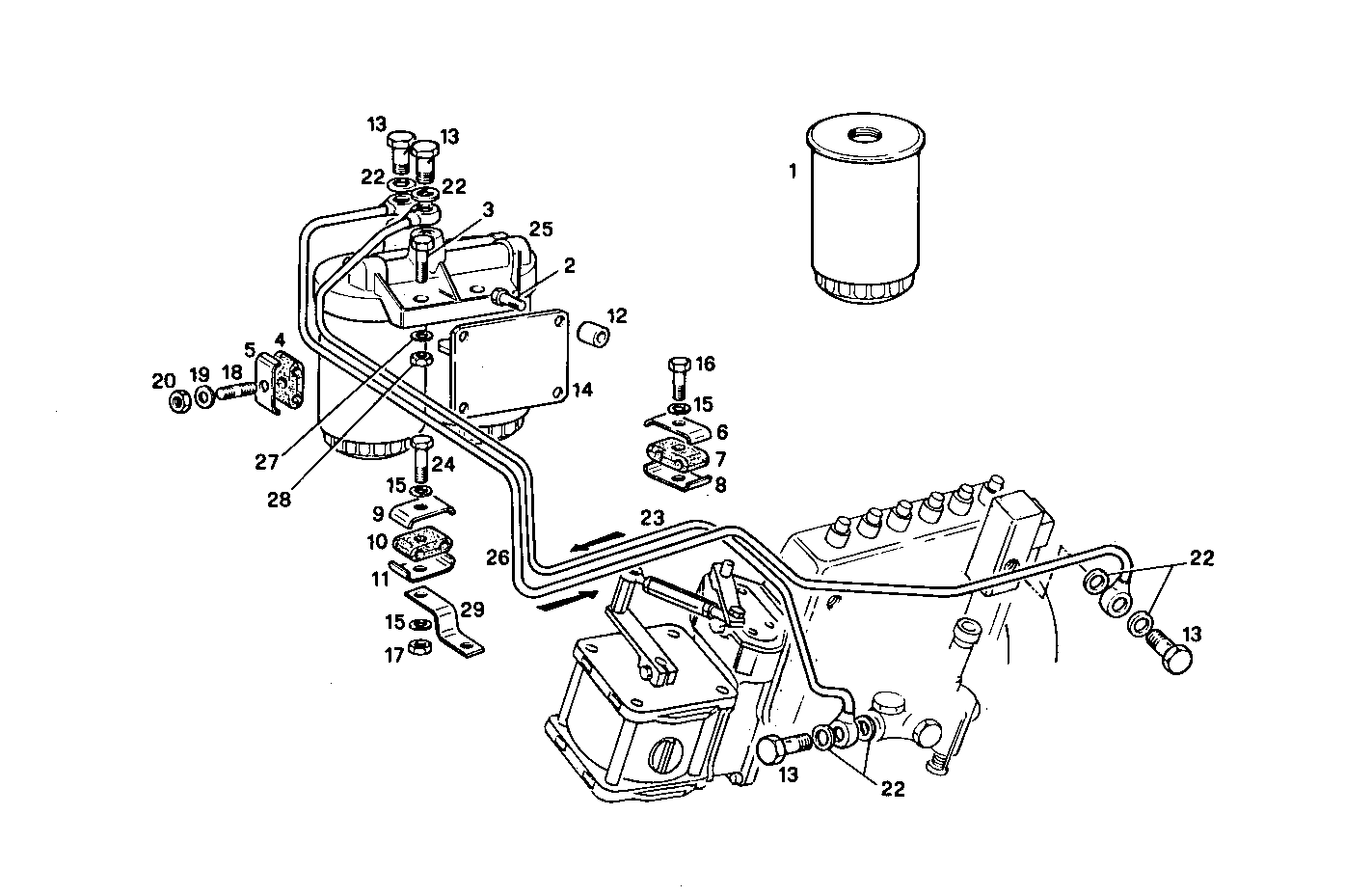

| Item |
Part number |
Description |
|
1 |
8106473 |
FUEL FILTER CARTRIDGE |
|
2 |
16625734 |
HEXAGON BOLT M8X35 |
|
3 |
15540721 |
HEXAGON BOLT M12X45 MM |
|
4 |
4651774 |
RUBBER PAD |
|
5 |
4651773 |
FASTENING BRACKET |
|
6 |
4644288 |
CLIP |
|
7 |
4871771 |
RUBBER LUG |
|
8 |
4644289 |
CLIP |
|
9 |
4649540 |
RETAINER |
|
10 |
4761451 |
RUBBER PAD |
|
11 |
4641551 |
CLAMP |
|
12 |
13605811 |
SPACER SP=1,5 MM |
|
13 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
14 |
8109233 |
RETAINER |
|
15 |
11197771 |
SPRING WASHER Ø6X12 MM SP=1,2 MM |
|
16 |
16603824 |
SCREW M6X25 |
|
17 |
17037821 |
HEXAGON NUT M6X1 |
|
18 |
13517221 |
STUD M8X12X30 MM |
|
19 |
11198071 |
SPRING WASHER Ø8X15 SP=1,4 MM |
|
20 |
17037931 |
HEXAGON NUT M8X1,25 |
|
22 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
23 |
8013538 |
FUEL LINE |
|
24 |
16600424 |
SCREW |
|
25 |
8108315 |
FUEL FILTER ASSY |
|
26 |
8013543 |
FUEL LINE |
|
27 |
11190779 |
SPRING WASHER Ø12X24 SP=2,8 MM |
|
28 |
16101511 |
HEXAGON NUT M12X1,25 |
|
29 |
8100407 |
RETAINER |
