8210M22.30

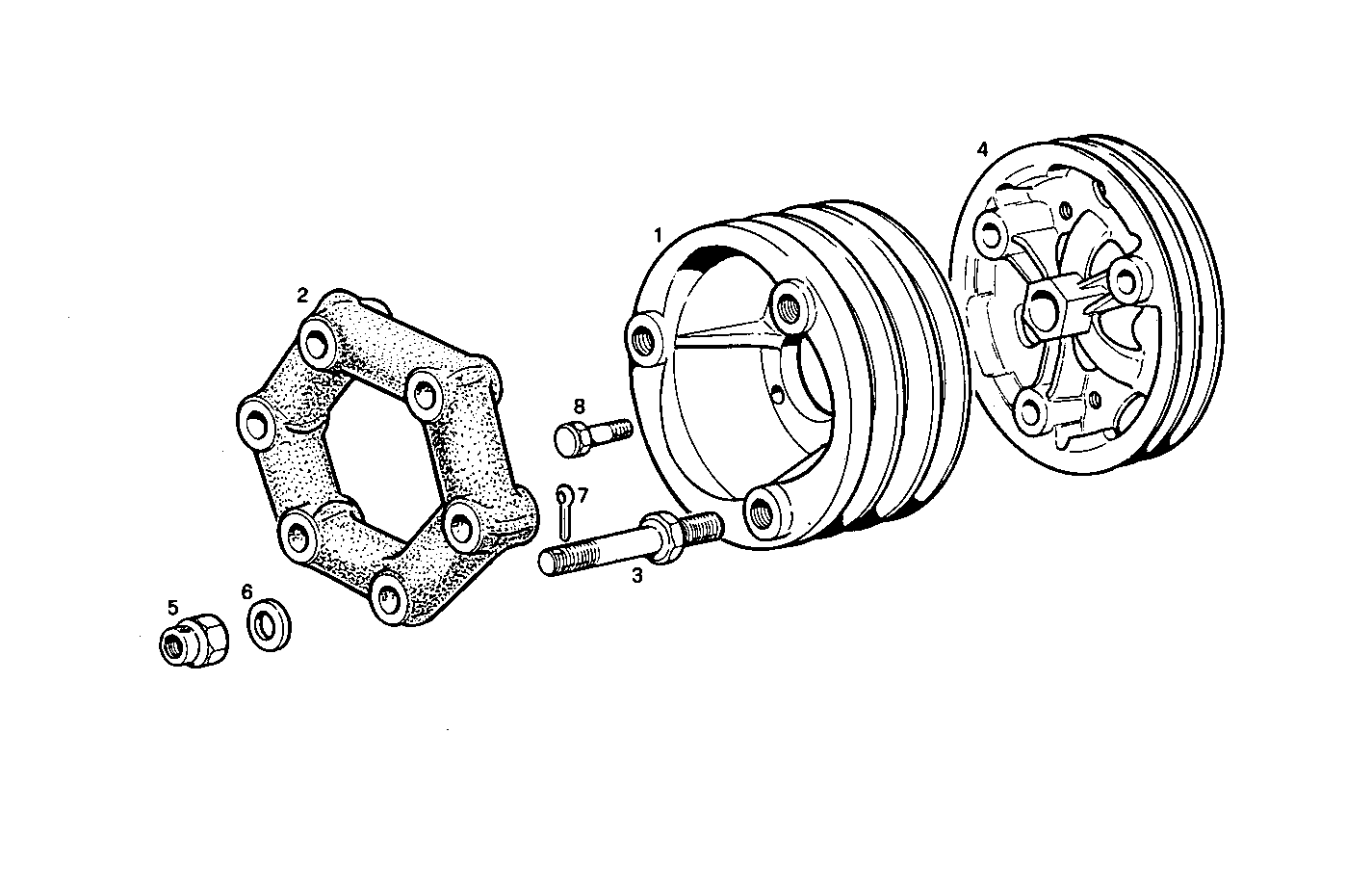

A26070004 PULLEY ON ENGINE AXIS - with additional groves with flexible coupling
| Item | Part number | Description |
|---|---|---|
| 1 | 4932516 | PULLEY |
| 2 | 4928505 | FLEXPLATE |
| 3 | 4932513 | STUD |
| 4 | 8100044 | PULLEY |
| 5 | 17068221 | NUT M20X1,5 |
| 6 | 10520401 | WASHER Ø20,4 MM |
| 7 | 10733801 | SPLIT PIN Ø3,5 MM |
| 8 | 14275521 | SCREW |
