8210M22.30

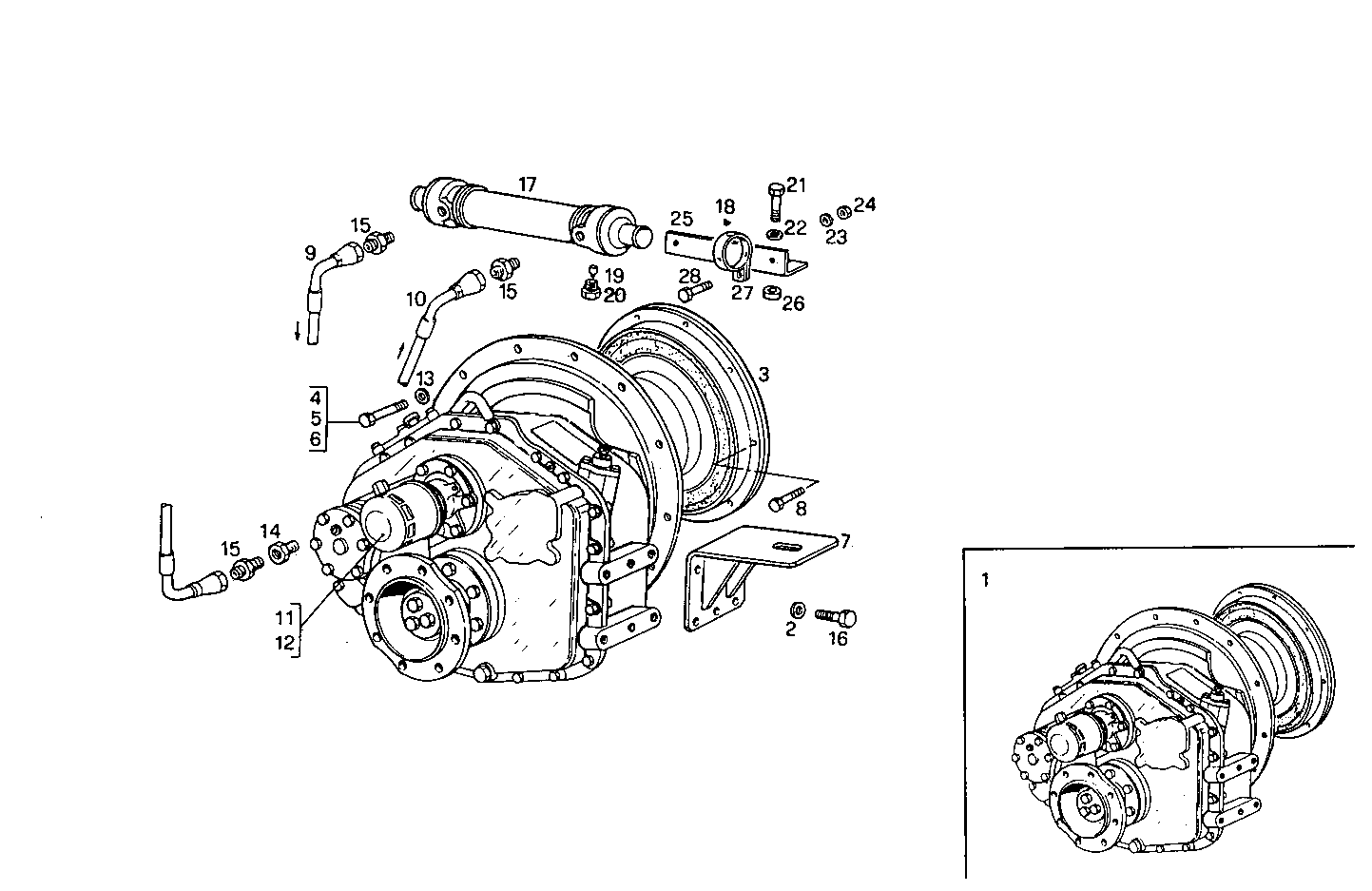

A51550009 MARINE GEAR ZF-MPM IRM 320 PL-1 - ratio 2.476:1

Iveco/FPT MARINE GEAR ZF-MPM IRM 320 PL-1

Item Part number Description
1 8010238 MARINE GEAR 2,476:1
2 11200279 SPRING WASHER Ø17 MM
3 8010445 FLEXIBLE COUPLING
4 11306921 SCREW M10X1,25X30
5 15970921 HEXAGON BOLT M10X1,25X35 MM
6 10923621 HEXAGON BOLT M10X1,25X35 MM
7 8108819 SUPPORT
8 14274621 LOCKING SCREW M12X1,25X35
9 8105620 HOSE
10 8105226 HOSE
11 8111320 OIL FILTER CARTRIDGE
12 8111321 OIL FILTER CARTRIDGE
13 17090174 SPRING WASHER Ø10X20 MM
14 4933508 PIPE SOCKET
15 4932262 PIPE SOCKET
16 4932875 SCREW M16X2X45
17 8109142 MARINE GEAR OIL HEAT EXCH ASSY
18 4565875 RUBBER PAD
19 8105277 SACRIFICAL ANODE Ø14 MM
20 8105276 PLUG M16
21 16607924 HEXAGON BOLT M10X1,5X40 MM
22 11190579 SPRING WASHER Ø10X20 MM SP=2,3
23 11198679 SPRING WASHER Ø13 MM
24 16101511 HEXAGON NUT M12X1,25
25 8105222 RETAINER
26 4932695 WASHER
27 8104042 CLIP
28 15540421 SCREW M12X1,25X30
