8210M22.30A003

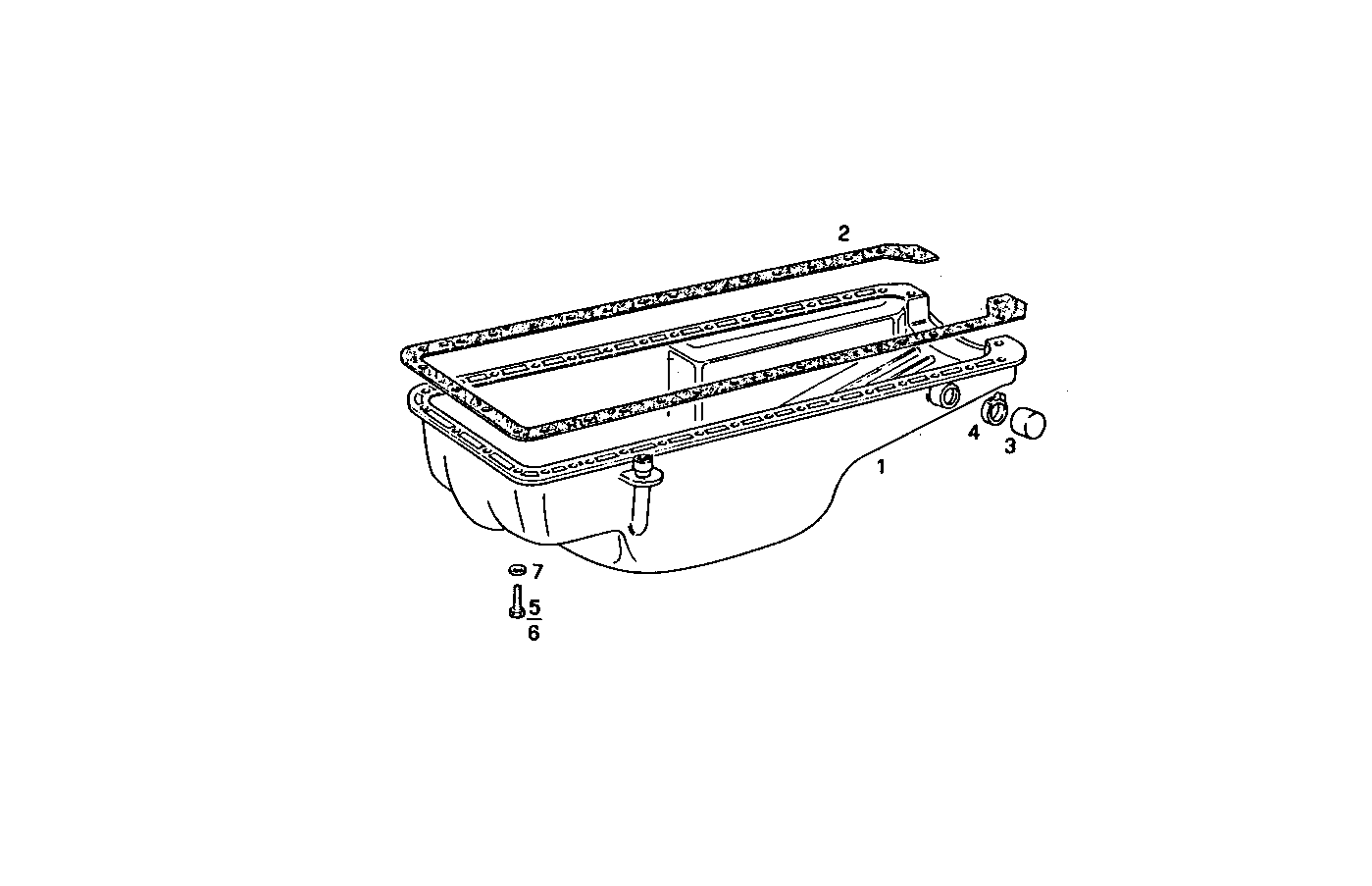

0420.019 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4638299 | OIL SUMP ASSY |
| 2 | 98493262 | OIL SUMP GASKET |
| 3 | 4836520 | PLUG |
| 4 | 12173890 | CLIP Ø25/40 MM |
| 5 | 10929824 | HEXAGON BOLT M10X1,25X25 MM |
| 6 | 10923621 | HEXAGON BOLT M10X1,25X35 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
