8210M22.30A003

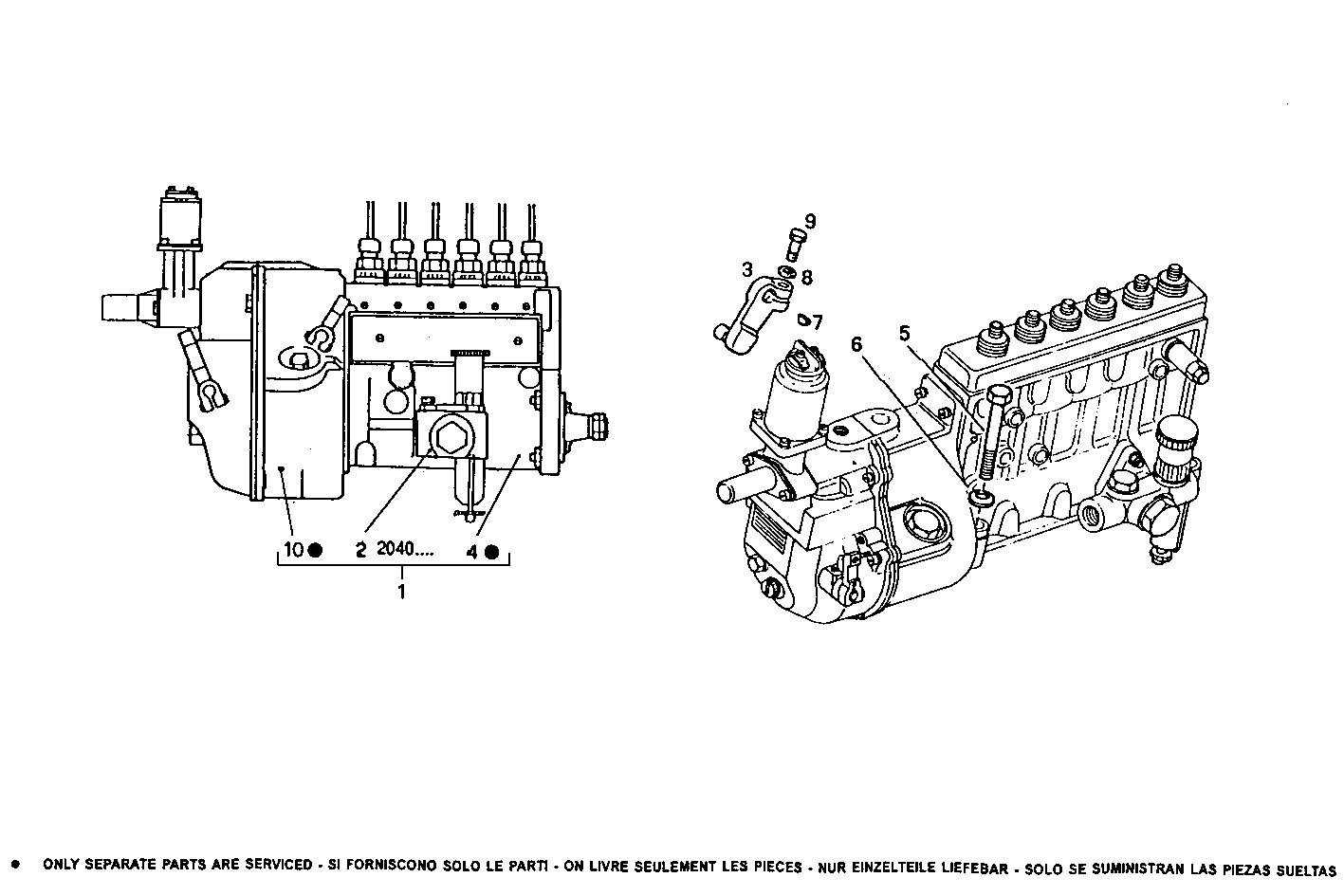

1400.023 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8108102 | INLINE INJECT.PUMP ASSY |
| 2 | 8108104 | FUEL PUMP |
| 3 | 8110753 | LEVER |
| 5 | 15971621 | HEXAGON BOLT M10X1,25X90 MM |
| 6 | 17090274 | WASHER Ø10X20 MM |
| 7 | 1136607 | KEY |
| 8 | 17088474 | WASHER Ø6X12 MM |
| 9 | 16602124 | SCREW M5X16 MM |
