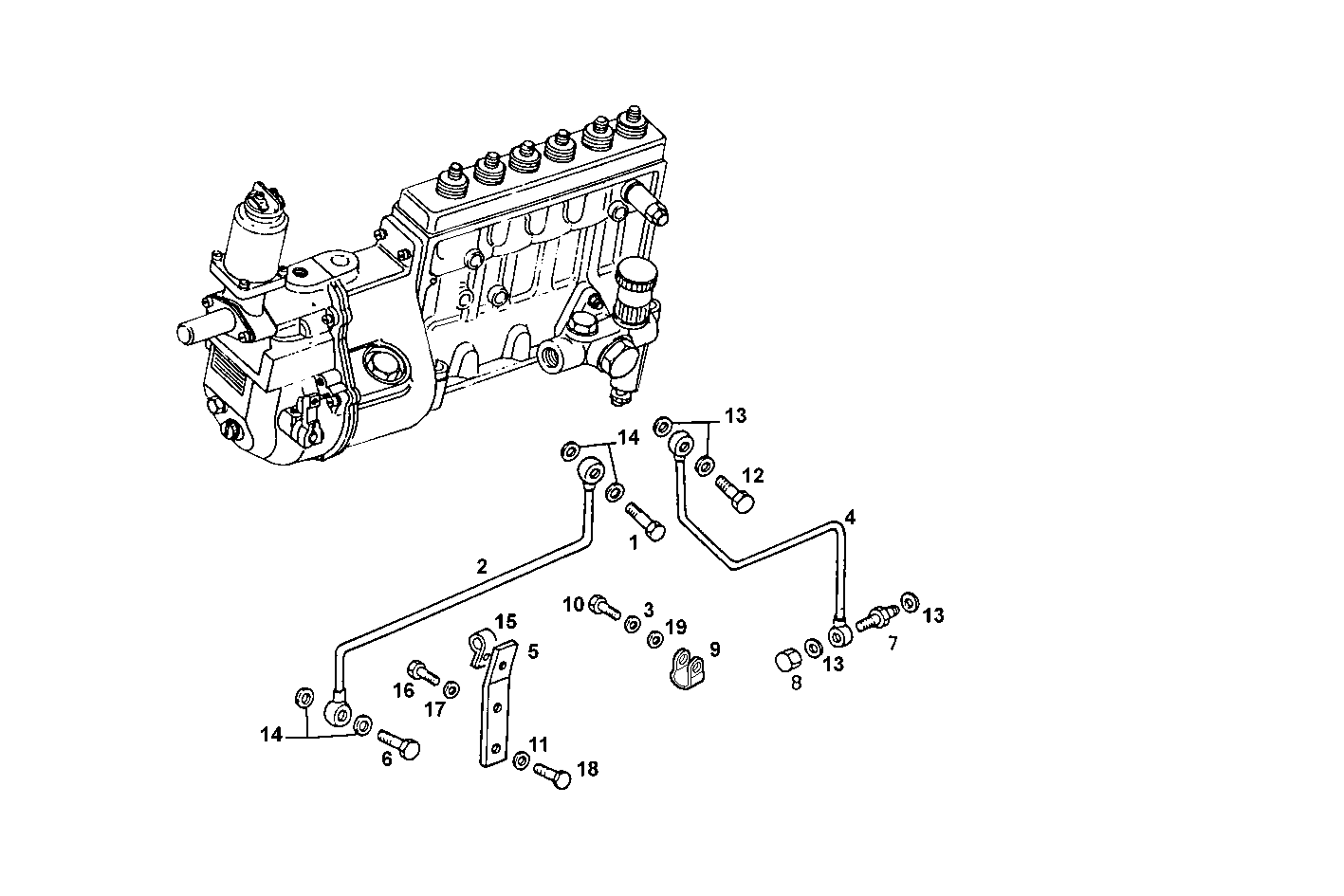

| Item |
Part number |
Description |
|
1 |
98479387 |
SCREW CONNECTOR [from 301968] |
|
2 |
98474954 |
PIPE |
|
3 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
4 |
98443555 |
PIPE |
|
5 |
4645737 |
FASTENING BRACKET |
|
6 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
|
7 |
4621393 |
THREADED UNION |
|
8 |
500302824 |
LOCK PLUG M10X1,25 |
|
9 |
17316190 |
PIPE CLIP Ø6 MM |
|
10 |
16043321 |
HEXAGON BOLT M8X18 MM |
|
11 |
17090274 |
WASHER Ø10X20 MM |
|
12 |
4864079 |
SCREW CONNECTOR M10X1 |
|
13 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
|
14 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
15 |
17316490 |
CLIP |
|
16 |
16043021 |
HEXAGON BOLT M8X12 MM |
|
17 |
17089574 |
WASHER Ø8X16 MM |
|
18 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
19 |
13605711 |
SPACER Ø8,5x18 MM |
