8210M22.30A003

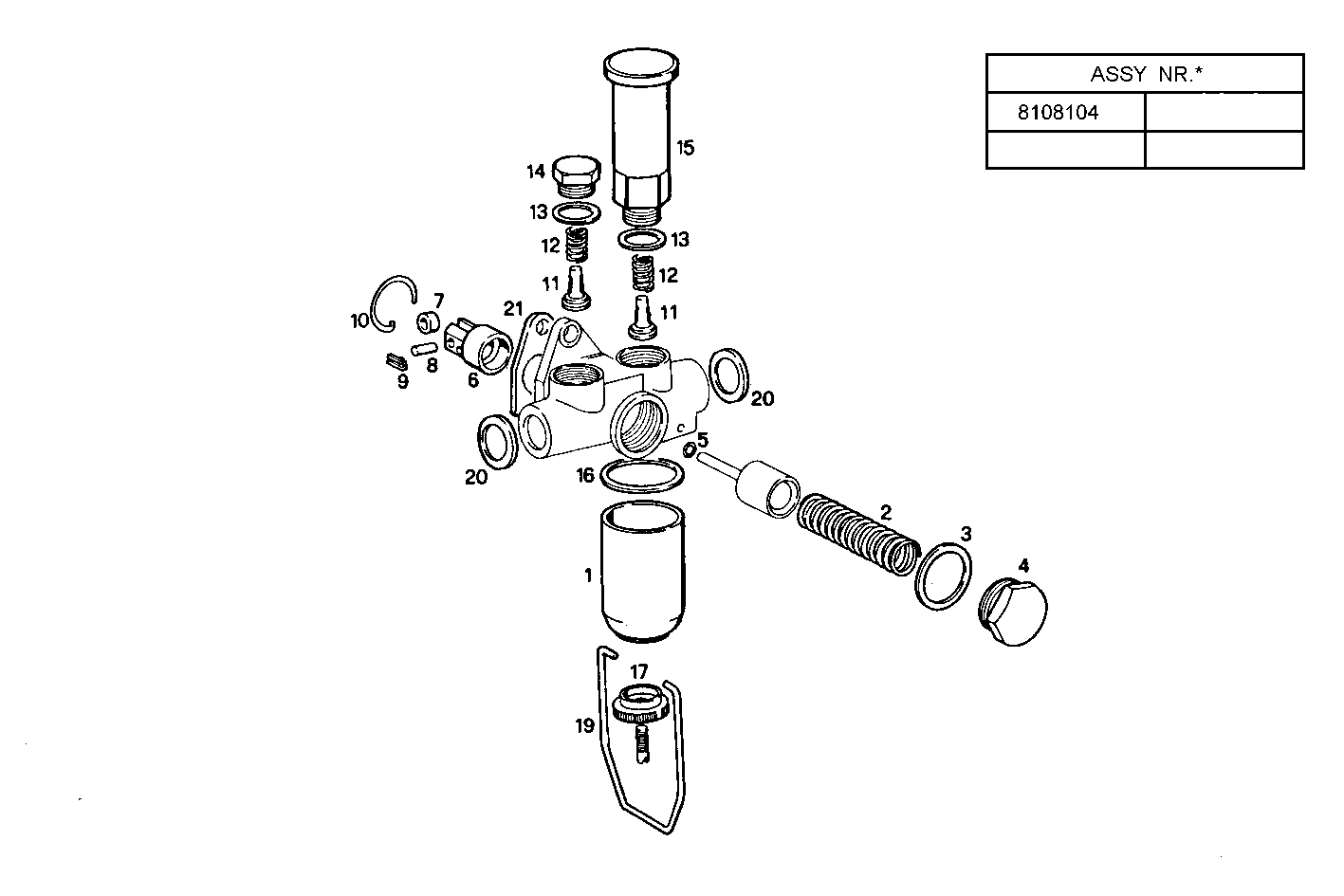

2040.008 FUEL PUMP (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 4934458 | PRECLEANER |
| 2 | 772158 | SPRING |
| 3 | 1290550 | GASKET |
| 4 | 772116 | PLUG |
| 5 | 1289782 | O-RING |
| 6 | 772119 | ROLLER TAPPET |
| 7 | 772121 | ROLLER |
| 8 | 2985086 | ROLLER TAPPET |
| 9 | 772123 | SLIDING SHOE |
| 10 | 772124 | CIRCLIP |
| 11 | 79051845 | VALVE |
| 12 | 1290593 | SPRING |
| 13 | 1287773 | GASKET |
| 14 | 9922405 | PLUG |
| 15 | 42531610 | HAND PUMP |
| 16 | 9930050 | GASKET |
| 17 | 772164 | GROOVED NUT |
| 19 | 1290637 | RETAINER |
| 20 | 746152 | GASKET |
| 21 | 8198198 | GASKET |
