8210M22.30A003

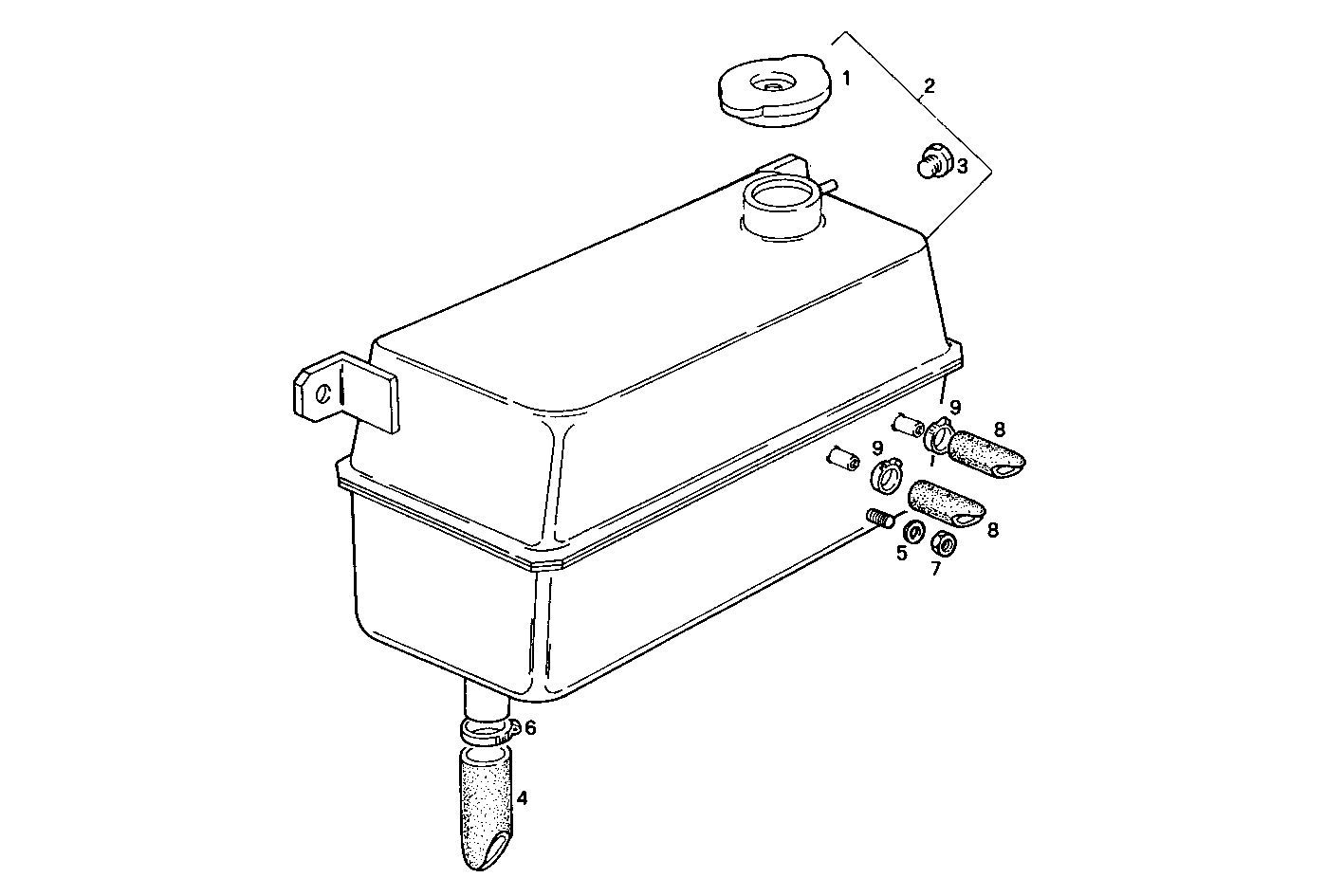

8600.097 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 8109172 | PLUG |
| 2 | 8109443 | WATER EXPANSION TANK ASSY |
| 3 | 8105096 | PLUG |
| 4 | 8109444 | WATER HOSE |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 17764592 | CLIP Ø20/32 MM |
| 7 | 17037821 | HEXAGON NUT M6X1 |
| 8 | 19070287 | WATER HOSE L=1100 MM |
| 9 | 18088392 | CLIP Ø16/25 MM |
