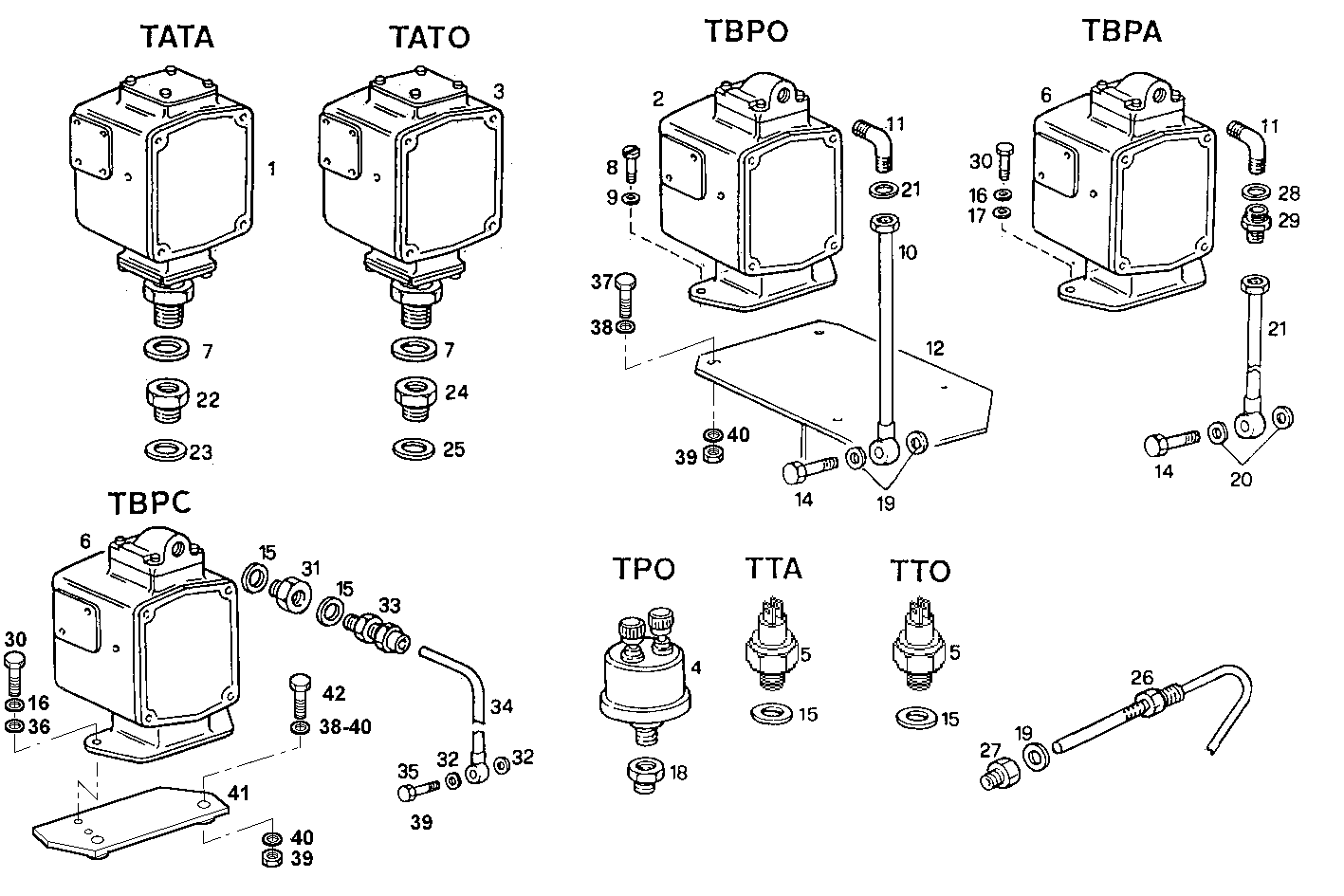

| Item |
Part number |
Description |
|
1 |
8110742 |
TRANSMITTER |
|
2 |
8110739 |
TRANSMITTER TBPO |
|
3 |
8111450 |
TRANSMITTER TATO |
|
4 |
8100417 |
TRANSMITTER TPO |
|
5 |
8100418 |
TRANSMITTER TTA |
|
6 |
8015707 |
TRANSMITTER TBPA |
|
7 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
8 |
17133314 |
SCREW M6X20 |
|
9 |
17088474 |
WASHER Ø6X12 MM |
|
10 |
8029261 |
OIL LINE |
|
11 |
8111261 |
PIPE SOCKET Ø1/8'' MM |
|
12 |
8111439 |
RETAINER |
|
14 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
15 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
16 |
17094504 |
WASHER Ø5,3X10 MM |
|
17 |
17094534 |
WASHER |
|
18 |
4929576 |
PIPE SOCKET |
|
19 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
20 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
21 |
8029262 |
WATER PIPE |
|
22 |
8021213 |
PIPE SOCKET |
|
23 |
98429281 |
SEAL GASKET Ø24X31 MM SP=1,5 MM |
|
24 |
8111085 |
PIPE SOCKET M28x1,5 - 1/2" |
|
25 |
10296260 |
SEAL GASKET Ø28X36 MM SP=1,5 MM |
|
26 |
8022117 |
TRANSMITTER |
|
27 |
4928337 |
PIPE SOCKET |
|
28 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
29 |
4935023 |
PIPE SOCKET M16X1,5/M12X1,5 |
|
30 |
16608624 |
SCREW |
|
31 |
8111316 |
PIPE SOCKET |
|
32 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
33 |
4724015 |
SCREW CONNECTOR |
|
34 |
8029263 |
FUEL LINE |
|
35 |
4864081 |
SCREW CONNECTOR |
|
36 |
17494534 |
WASHER Ø4X7,6X0,9 MM |
|
37 |
15214224 |
SCREW M8x1,25x85 |
|
38 |
17094914 |
WASHER 8x16 |
|
39 |
17037931 |
HEXAGON NUT M8X1,25 |
|
40 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
41 |
8029264 |
RETAINER |
|
42 |
16605934 |
HEXAGON BOLT M8X40 MM (10.9) |
