8210M22.30A003

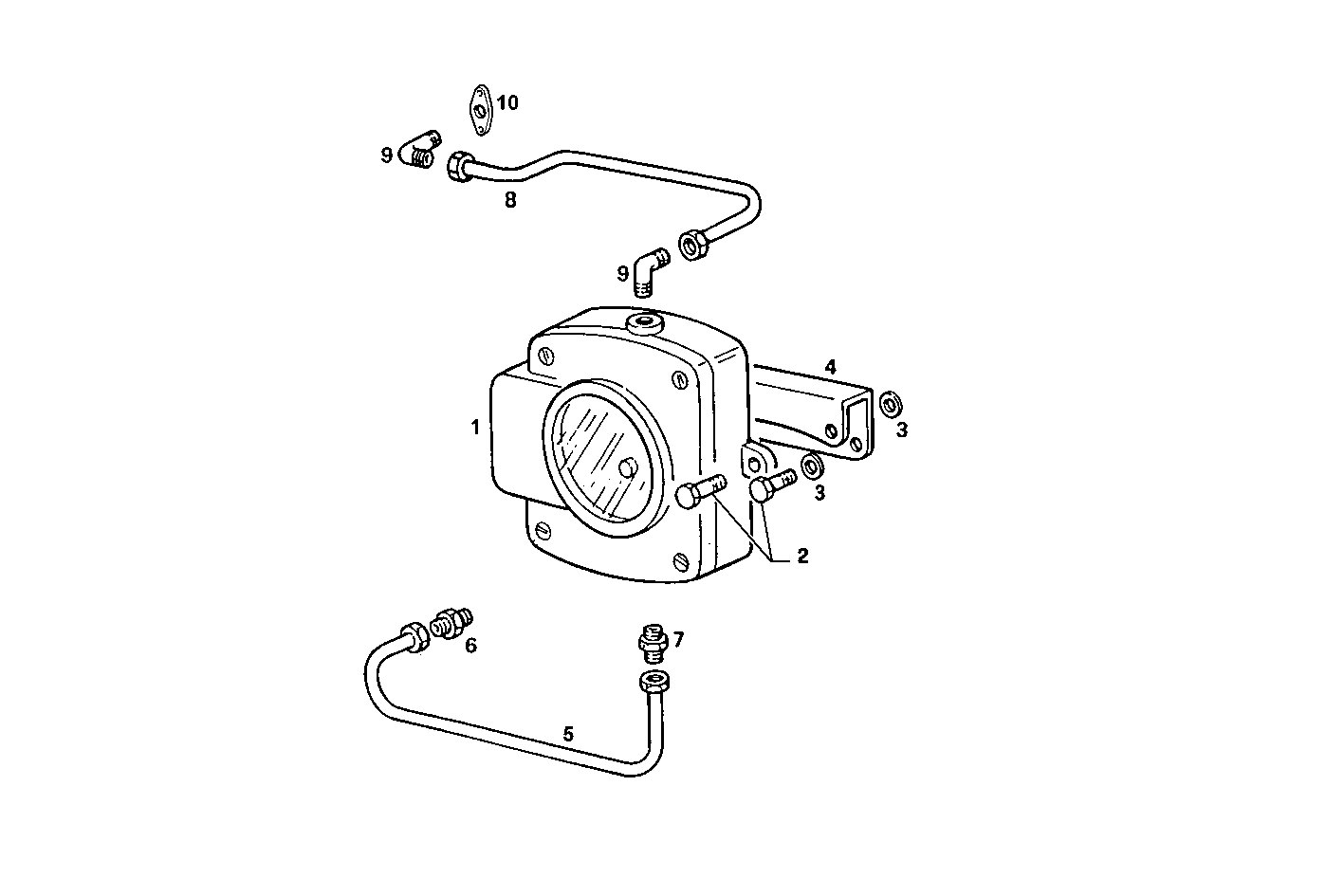

A38620015 SENDER UNITS FOR WATER LEVEL - 12/24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8111513 | TRANSMITTER [up to 08-94] |
| 2 | 16605734 | HEXAGON BOLT M8X30 MM |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 8029269 | RETAINER |
| 5 | 8029032 | WATER PIPE |
| 6 | 8029555 | PIPE SOCKET |
| 7 | 11219711 | ELBOW COUPLING |
| 8 | 8029033 | WATER PIPE |
| 9 | 8111410 | PIPE SOCKET [from 09-89] |
| 10 | 8029285 | COVER |
