8210Si02.00

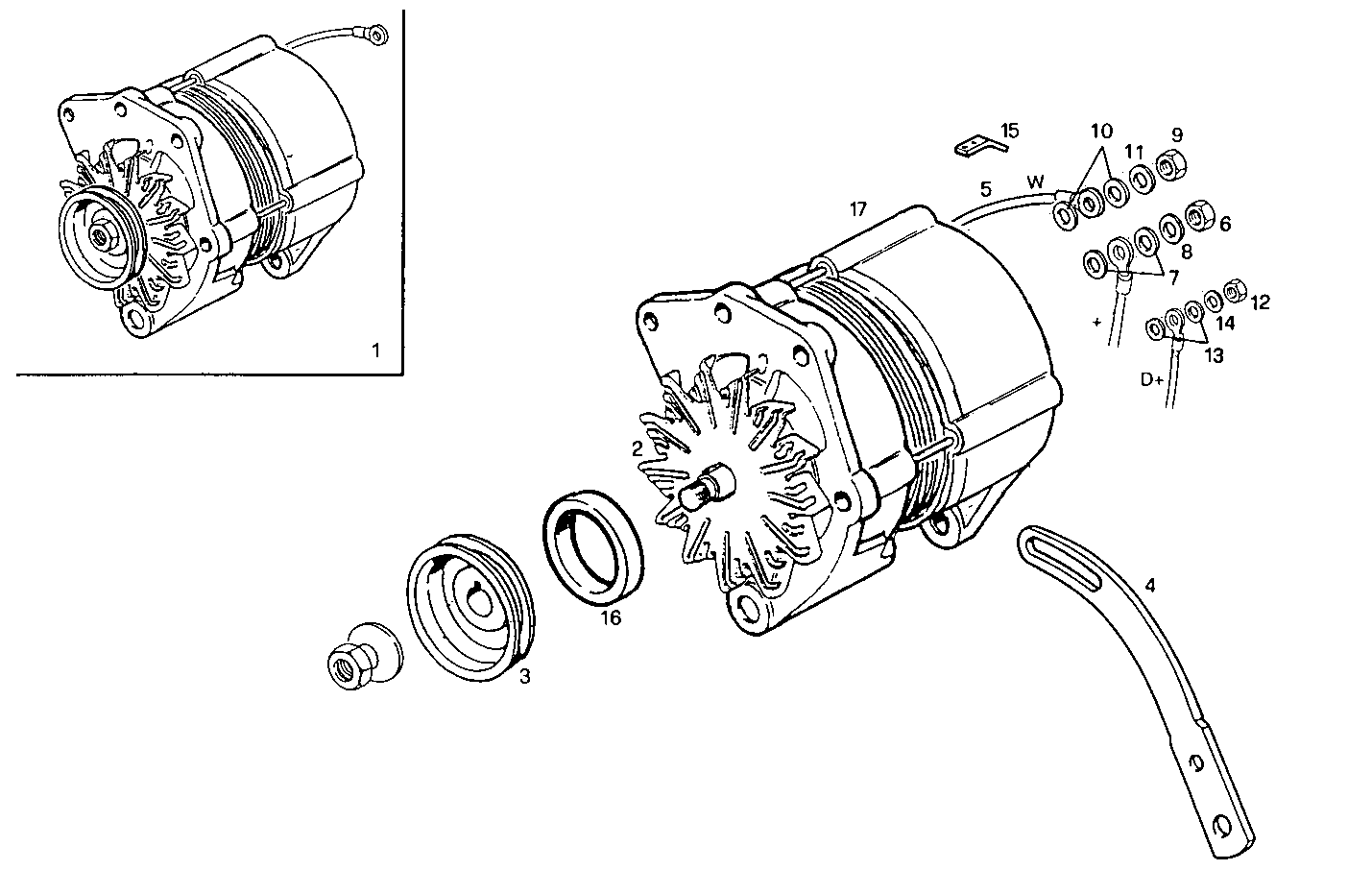

A14120022 SELF-REGULATED ALTERNATOR - 24V 55A (W)
| Item |
Part number |
Description |
|
1 |
8019558 |
ALTERNATOR ASSY |
|
2 |
4757196 |
GENERATOR FAN BOSCH |
|
3 |
4808604 |
PULLEY |
|
4 |
4758642 |
BELT TENSIONER |
|
5 |
8019531 |
WIRE/CABLE W |
|
6 |
17037931 |
HEXAGON NUT M8X1,25 |
|
7 |
17094914 |
WASHER 8x16 |
|
8 |
17494834 |
WASHER Ø8 MM |
|
9 |
17037721 |
NUT M5X0,8 |
|
10 |
17094504 |
WASHER Ø5,3X10 MM |
|
11 |
10615379 |
TOOTHED WASHER Ø5,3 MM |
|
12 |
17037621 |
HEXAGON NUT M4 |
|
13 |
17094204 |
WASHER Ø4X8X0,8 MM |
|
14 |
10615279 |
WASHER Ø4 MM |
|
15 |
12277944 |
CONNECTION D+ |
|
16 |
98454596 |
SPACING BAR BOSCH |
|
17 |
98424450 |
ALTERNATOR ASSY BOSCH |
