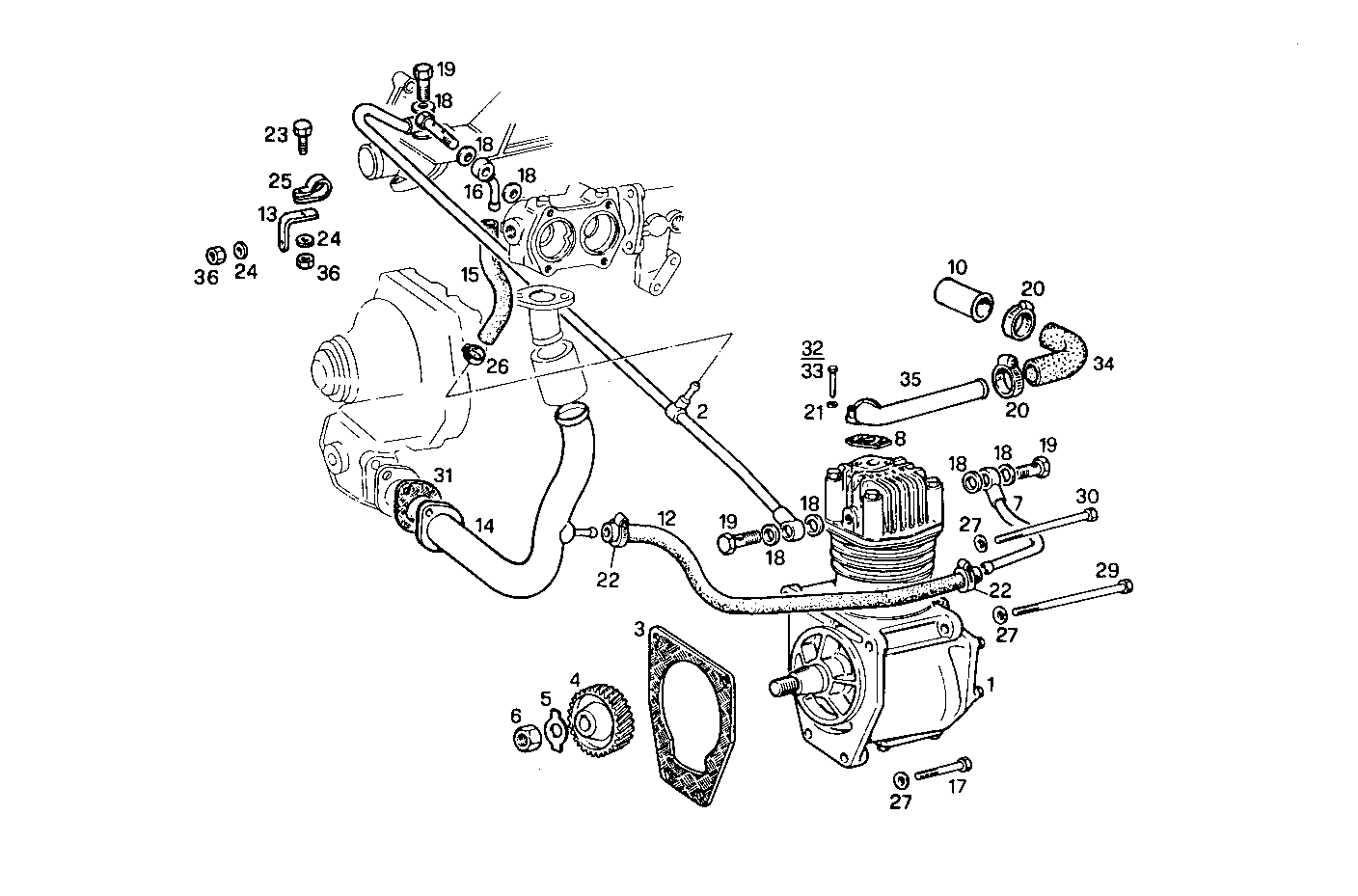

| Item |
Part number |
Description |
|
1 |
99440235 |
AIR COMPRESSOR ASSY BENDIX |
|
2 |
98451992 |
WATER PIPE |
|
3 |
4864032 |
FLAT ENGINE GASKET |
|
4 |
4710274 |
COMP. DRIVE GEAR |
|
5 |
4709364 |
LOCKING PLATE |
|
6 |
99471892 |
HEXAGON NUT |
|
7 |
98451993 |
WATER PIPE |
|
8 |
4513714 |
GASKET |
|
10 |
4734507 |
THREADED UNION |
|
12 |
4787287 |
WATER HOSE |
|
13 |
4930333 |
RETAINER |
|
14 |
98450706 |
WATER PIPE |
|
15 |
4787286 |
WATER HOSE |
|
16 |
4756465 |
WATER PIPE |
|
17 |
11234721 |
HEXAGON BOLT M10X1,25X45 MM |
|
18 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
19 |
4864084 |
BANJO BOLT M16X1,5 |
|
20 |
12176990 |
CLIP Ø24-36 MM |
|
21 |
11194079 |
SPRING WASHER Ø8X16 MM SP=1,9 MM |
|
22 |
12173690 |
CLIP Ø14-22 MM |
|
23 |
16043221 |
HEXAGON BOLT M8X16 MM |
|
24 |
11193879 |
SPRING WASHER Ø8X16 MM |
|
25 |
4760226 |
FASTENING BRACKET |
|
26 |
12179490 |
CLIP Ø9-16 MM |
|
27 |
11198379 |
SPRING WASHER Ø10X20 MM SP=2,6 |
|
29 |
15972221 |
SCREW M10X1,25X120 |
|
30 |
98434330 |
HEXAGON BOLT |
|
31 |
4864028 |
FLAT ENGINE GASKET |
|
32 |
16500824 |
SCREW |
|
33 |
16501324 |
SCREW |
|
34 |
4605529 |
RUBBER SLEEVE |
|
35 |
8114245 |
AIR PIPE/DUCT |
|
36 |
17037931 |
HEXAGON NUT M8X1,25 |
