8210Si02.00

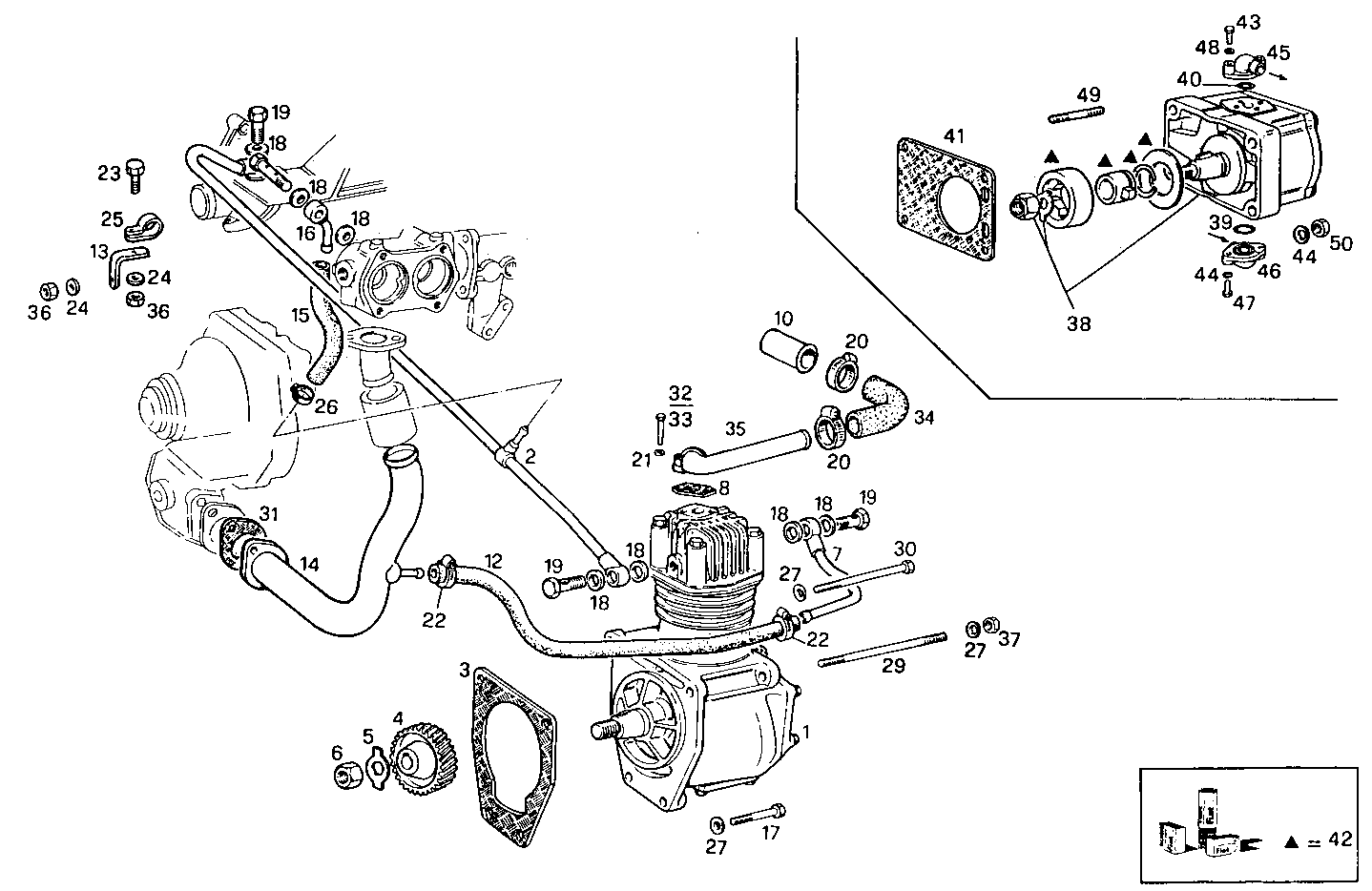

A18050005 AIR COMPRESSOR - with hydraulic pump - PLESSEY 25 - 250cc

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 99440226 AIR COMPRESSOR ASSY BENDIX
2 98451992 WATER PIPE
3 4710288 FLAT ENGINE GASKET
4 4710274 COMP. DRIVE GEAR
5 4709364 LOCKING PLATE
6 99471892 HEXAGON NUT
7 98451993 WATER PIPE
8 4513714 GASKET
10 4734507 THREADED UNION
11 4724973 RUBBER SLEEVE
12 4787287 WATER HOSE
13 4930333 RETAINER
14 98450706 WATER PIPE
15 4787286 WATER HOSE
16 4756465 WATER PIPE
17 11234721 HEXAGON BOLT M10X1,25X45 MM
18 4858609 WASHER Ø16X22 MM SP=1,5 MM
19 4864084 BANJO BOLT M16X1,5
20 12176990 CLIP Ø24-36 MM
21 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
22 12173690 CLIP Ø14-22 MM
23 16043221 HEXAGON BOLT M8X16 MM
24 11193879 SPRING WASHER Ø8X16 MM
25 4760226 FASTENING BRACKET
26 12179490 CLIP Ø9-16 MM
27 11198379 SPRING WASHER Ø10X20 MM SP=2,6
28 16043521 SCREW M8X22
29 13953721 STUD M10X15X115
30 98434330 HEXAGON BOLT
31 4864028 FLAT ENGINE GASKET
32 16500824 SCREW
33 16501324 SCREW
34 4605529 RUBBER SLEEVE
35 8114245 AIR PIPE/DUCT
36 17037931 HEXAGON NUT M8X1,25
37 12164711 HEXAGON NUT M10X1,25
38 5129478 OIL PUMP-STEERING ASSY
39 4503785 WASHER
40 17281781 O-RING Ø15,5 MM SP=2,6 MM
41 4850986 FLAT ENGINE GASKET
42 8090343 KIT-HYDRAULIC PUMP
43 14305521 SCREW M6X30
44 11197779 SPRING WASHER Ø6X12 MM
45 4670953 PIPE SOCKET
46 4690715 PIPE SOCKET
47 14306621 SCREW M8X35
48 11198079 SPRING WASHER Ø8,2 MM
49 10980821 STUD M6X15X30 MM
50 15896211 HEXAGON NUT M6
