8210Si02.00

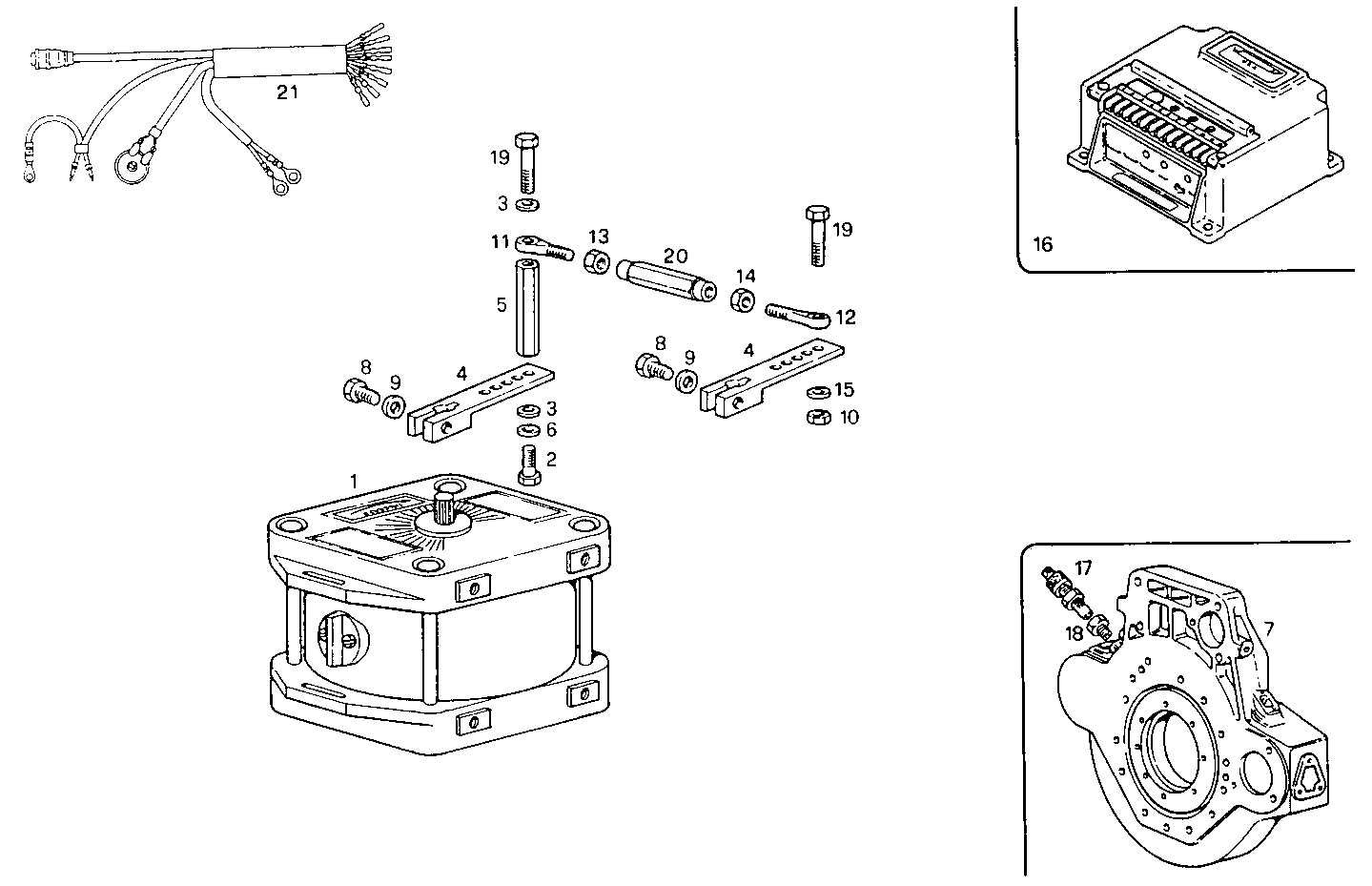

A28010048/01 ELECTRONIC GOVERNOR WOODWARD - 24V [D 07-1994] [from07-1994]

Iveco/FPT ELECTRONIC GOVERNOR WOODWARD

Item Part number Description
1 8107492 INJECTION CONTROL ASSY
2 16602224 HEXAGON BOLT M5X20 MM
3 17094714 WASHER Ø6,4X12 MM
4 8108603 LEVER
5 8108656 SPACING BAR
6 11199279 SPRING WASHER Ø5X10X0,5 MM
7 8107381 FLYWHEEL HOUSING ASSY
8 16603724 HEXAGON BOLT M6X20 MM (8.8)
9 17088474 WASHER Ø6X12 MM
10 17152621 NUT M5X0,8
11 8016587 TIE ROD RIGHT [up to 06-95]
12 8016588 TIE ROD LEFT [up to 06-95]
13 15896240 NUT M6 - RIGHT [up to 06-95]
14 10789640 NUT M6 - LEFT [up to 06-95]
15 12638101 WASHER Ø5,15 MM
16 8103081 INJECTION CONTROL
17 8018673 PICK-UP
18 4931603 PIPE SOCKET
19 8016470 SCREW M5
20 8016413 TIE ROD M6X1 [up to 06-95]
21 8018791 ENGINE HARNESS
