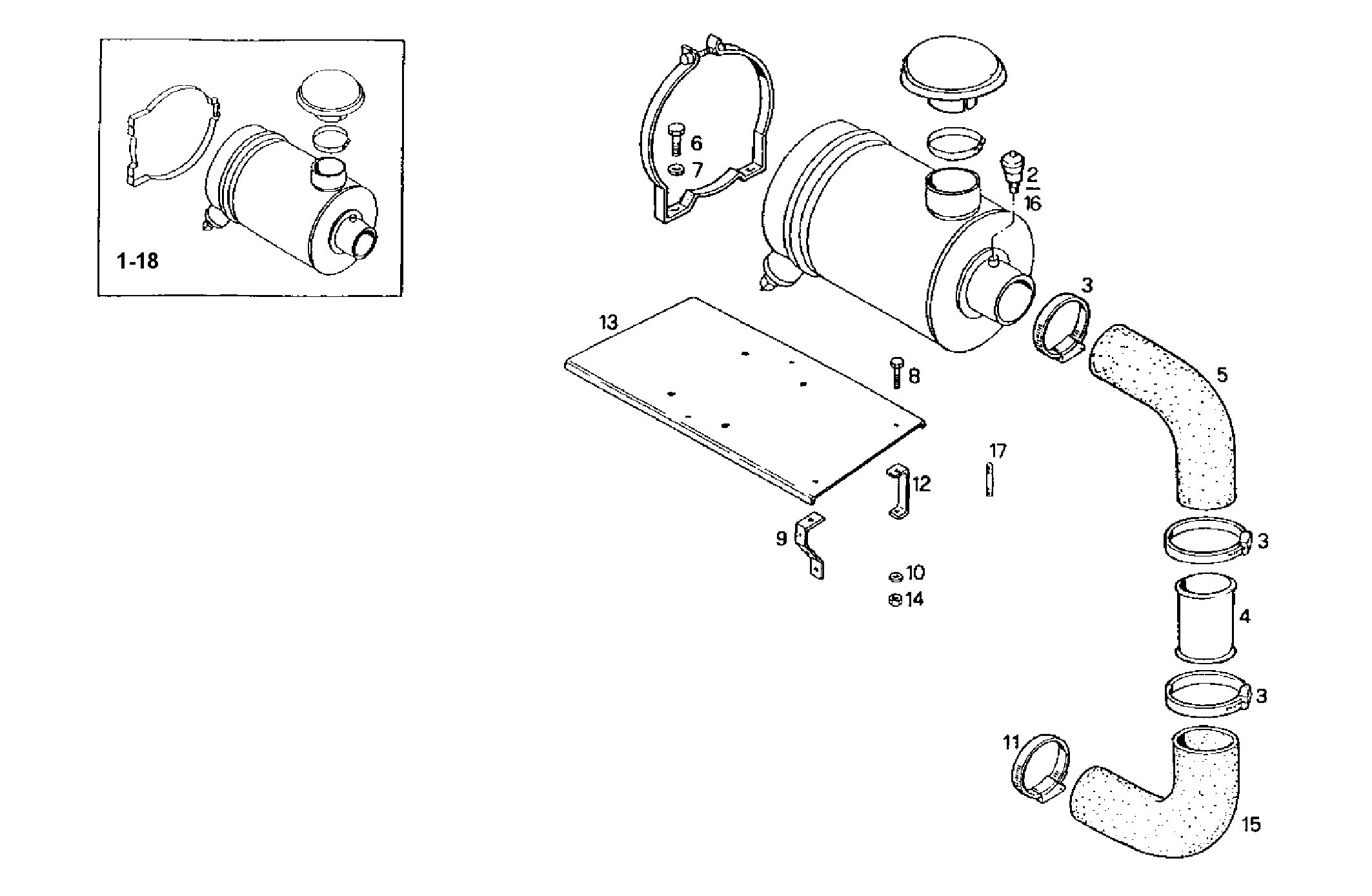

A21210027 DRY AIR CLEANER - with mechanical clogging gauge - genset

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8016975 AIR CLEANER ASSY
2 4936137 CHOCKED FILTER INDIC. MECHANICAL
3 17766091 CLIP Ø160/180 MM
4 8113940 AIR PIPE/DUCT
5 8113938 FILTER HOSE
6 15540324 SCREW M12X1,25X25
7 17091374 SPRING WASHER Ø12X30X3,0 MM
8 15004021 HEXAGON BOLT M10X1,25X25 MM
9 8107871 RETAINER
10 17090474 SPRING WASHER Ø10X27 MM SP=2,5
11 17765791 CLIP DIA 130/150 [up to 10-93]
12 8107870 RETAINER
13 8016983 SUPPORT
14 17038221 HEXAGON NUT M10
15 8113939 FILTER HOSE
16 8022540 CHOCKED FILTER INDIC. MECHANICAL
17 13516921 STUD M8X12X22 MM
18 8034705 AIR CLEANER ASSY
