8210Si15.00A500

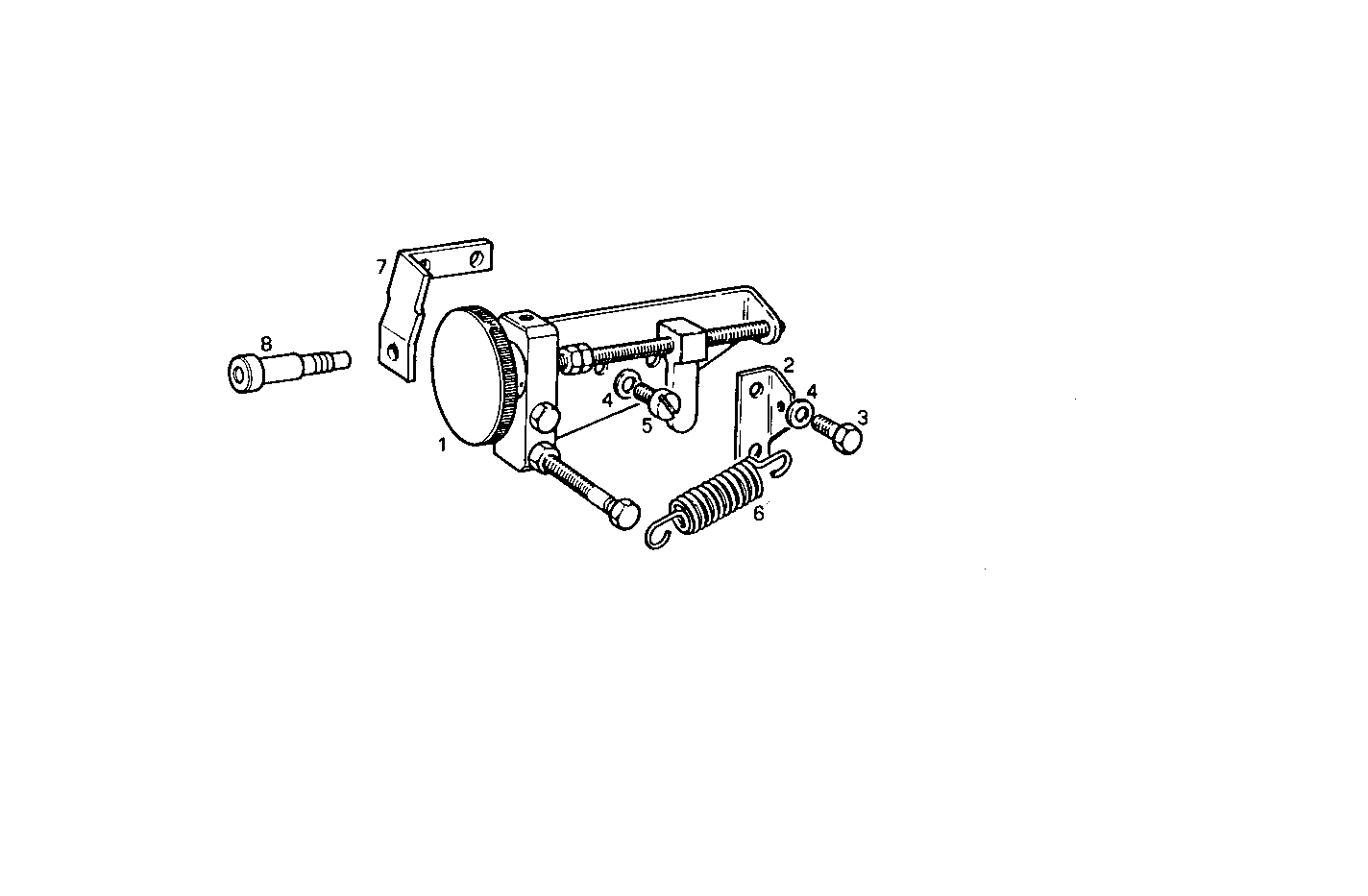

A24060006 PRECISION ADJUSTMENT ACCELERATOR - genset
| Item | Part number | Description |
|---|---|---|
| 1 | 8104878 | HAND ACCELERATOR ASSY |
| 2 | 8105825 | RETAINER |
| 3 | 10902121 | HEXAGON BOLT M6X14 MM |
| 4 | 17088474 | WASHER Ø6X12 MM |
| 5 | 17133114 | SCREW M6X12 |
| 6 | 8104855 | SPRING |
| 7 | 771369 | RETAINER |
| 8 | 4746917 | THRUST ROD |
