8210Si15.00A520

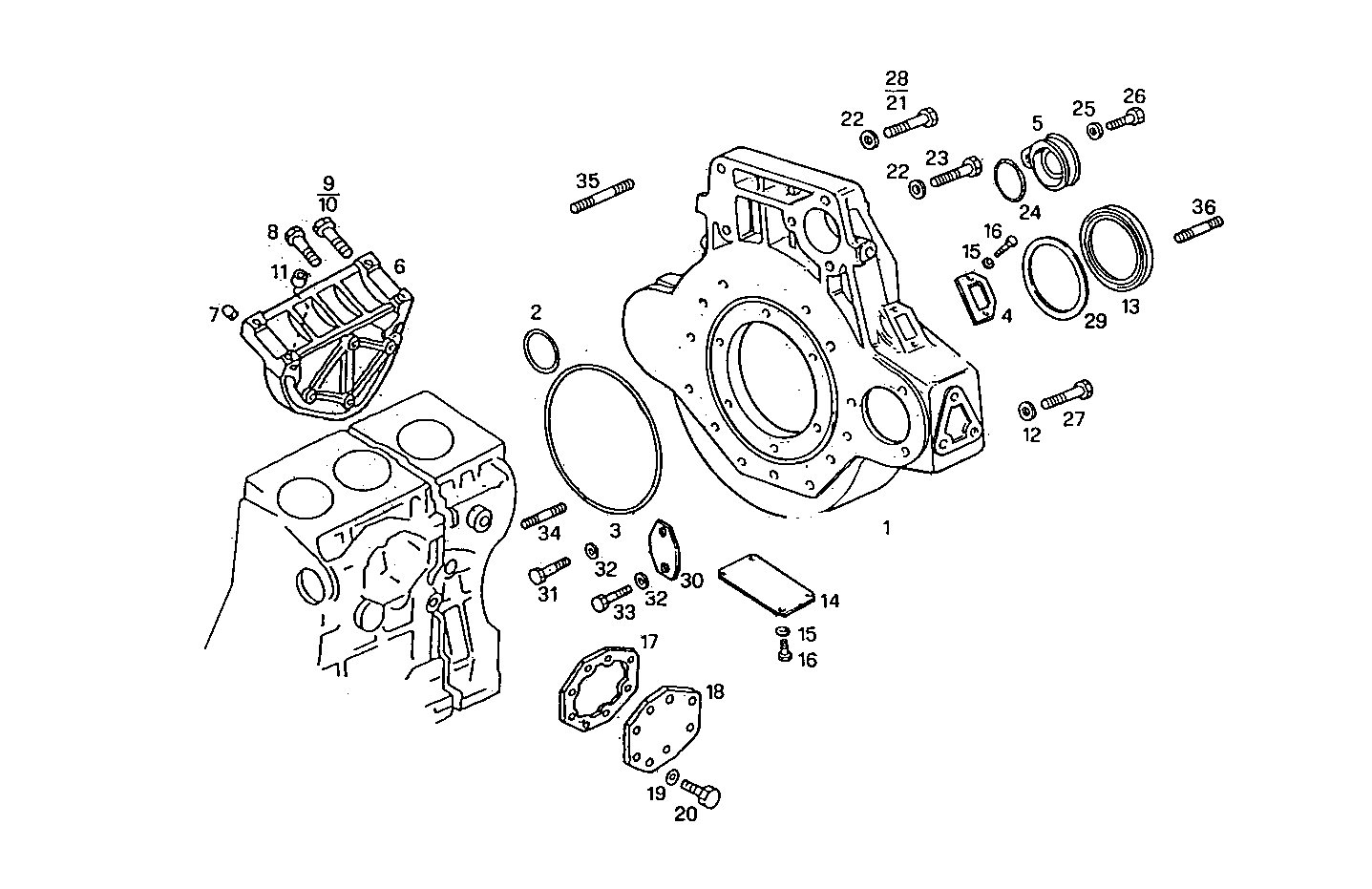

0430.023/02 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 98472545 FLYWHEEL HOUSING ASSY
2 98464890 O-RING Ø74,6 MM SP=3,53 MM
3 98464798 O-RING Ø247 MM SP=6,98 MM
4 4558988 REAR C.CASE COVER
5 4651691 COVER
6 4643582 SUPPORT
7 10837710 DOWEL PIN Ø10 MM
8 16326524 SCREW
9 16326824 LOCKING SCREW M12X60 MM
10 16327024 LOCKING SCREW M12X70 MM
11 4626942 DOWEL PIN
12 4837398 WASHER Ø12X28 MM SP=4 MM
13 98467213 WASHER
14 4753696 COVER
15 11198074 SPRING WASHER Ø8X15 MM
16 16605524 HEXAGON BOLT M8X20 MM
17 4863958 FLAT ENGINE GASKET
18 4530113 COVER
19 17088474 WASHER Ø6X12 MM
20 16603624 HEXAGON BOLT M6X16 MM (8.8)
21 15978330 HEXAGON BOLT M14X1,5X140 MM
22 4604279 SPRING WASHER Ø14X32 MM SP=4 MM
23 15977531 SCREW M14X1,5X60
24 17284281 O-RING Ø55,24X2,62 MM
25 4604280 WASHER Ø10X25 MM SP=4 MM
26 15971830 HEXAGON BOLT M10X1,25X100 MM
27 15540831 SCREW
28 15977630 HEXAGON BOLT M14X1,5X70 MM
29 4692004 RING
30 4753697 COVER
31 4753698 HEXAGON BOLT
32 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
33 16043024 HEXAGON BOLT M8X12 MM (8.8)
34 11797524 STUD
35 13453924 STUD
36 16746624 STUD M8X20 MM (8.8)
