8210SM26.12

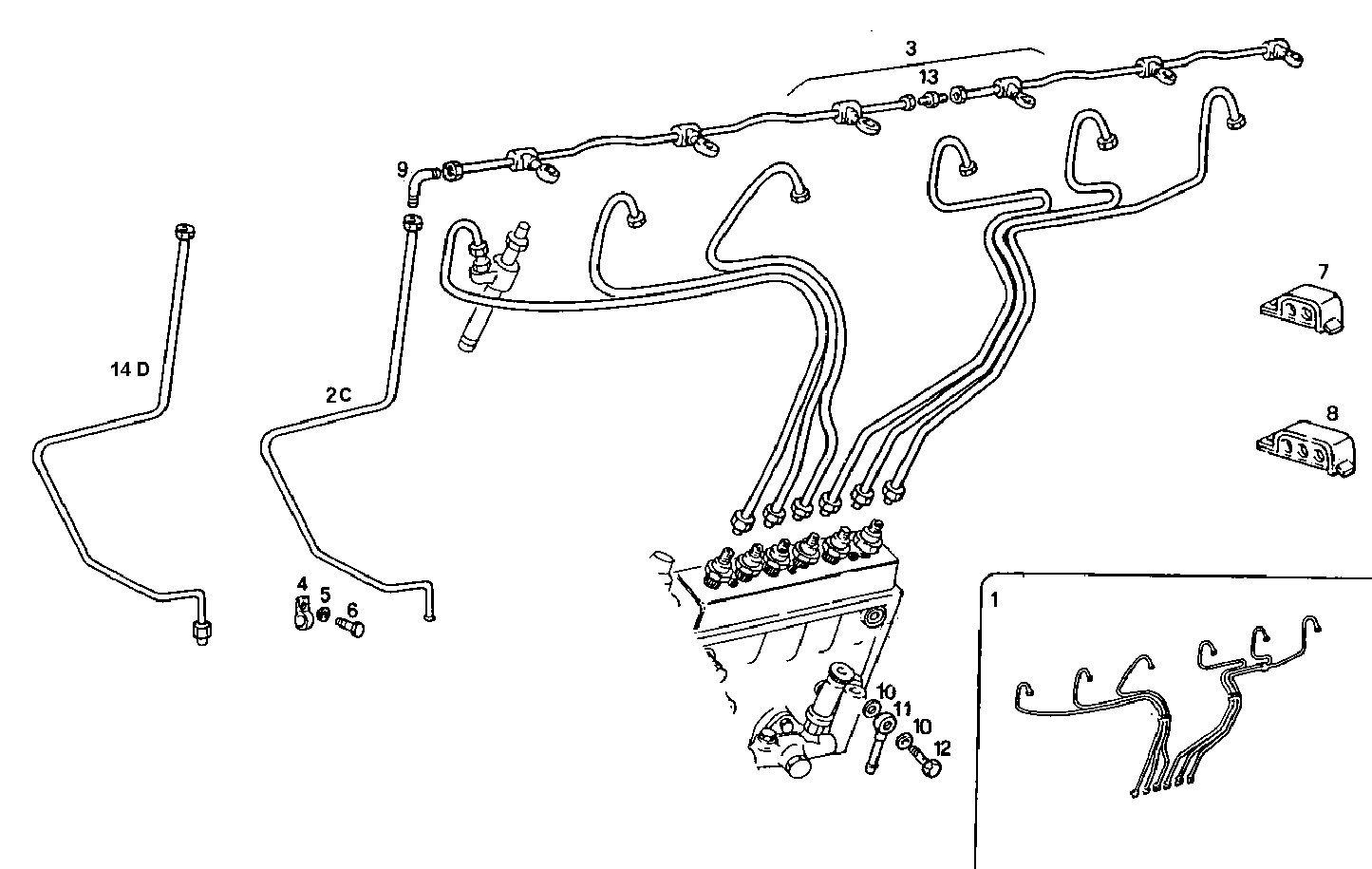

2020.064 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 8012314 | INJECTION LINE SET |
| 2 | 8111242 | FUEL LINE |
| 3 | 4863056 | FUEL LINE ASSY |
| 4 | 10450090 | PIPE CLIP Ø8 MM |
| 5 | 17089471 | SPRING WASHER Ø16X8 MM SP=1,4 MM |
| 6 | 16043221 | HEXAGON BOLT M8X16 MM |
| 7 | 4806611 | FASTENING BRACKET |
| 8 | 4806612 | FASTENING BRACKET |
| 9 | 16503011 | PIPE SOCKET |
| 10 | 4588608 | PIN |
| 11 | 8013631 | PIPE SOCKET |
| 12 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 13 | 16501511 | SCREW CONNECTOR M12X1,5 |
| 14 | 8034024 | FUEL LINE |
