8210SM26.12

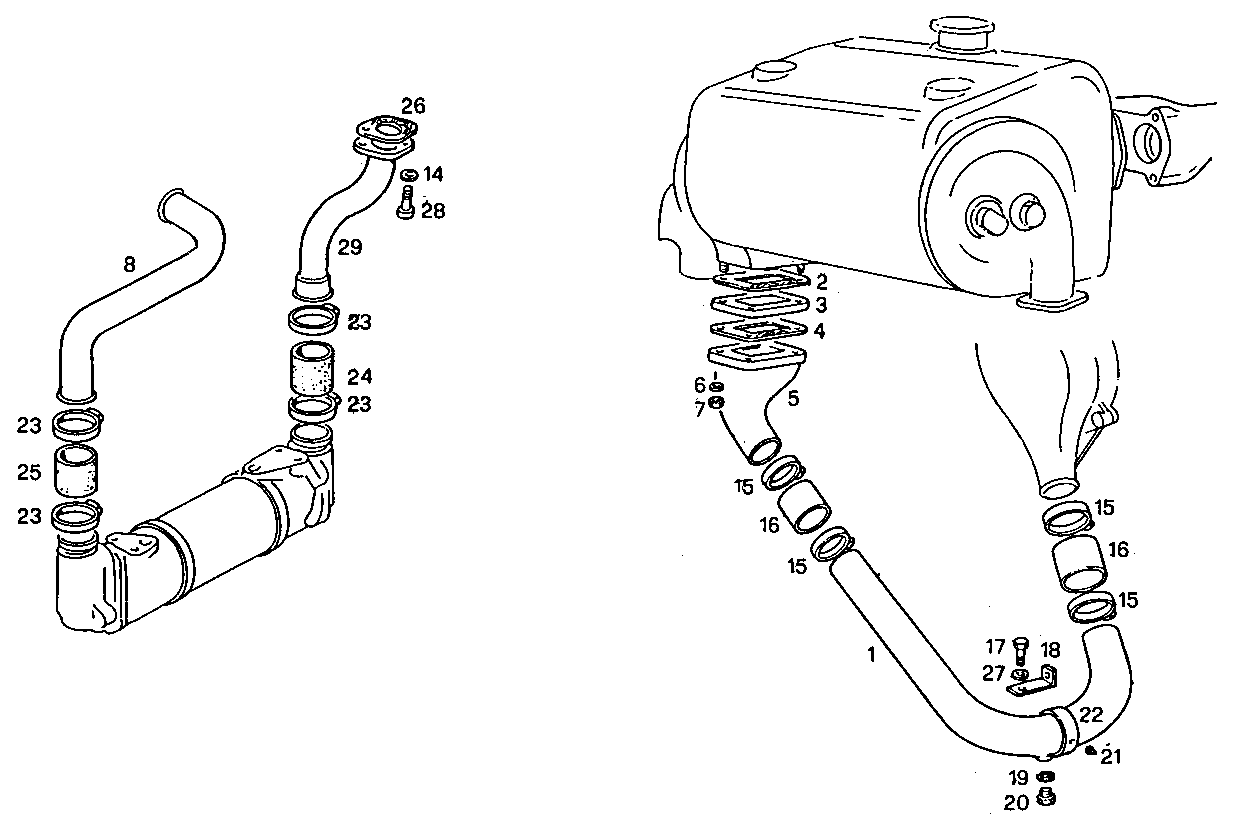

3210.057/02 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8110635 | WATER PIPE |
| 2 | 8008838 | GASKET |
| 3 | 8102752 | SPACING BAR |
| 4 | 8008839 | GASKET |
| 5 | 8108931 | WATER PIPE |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 98428450 | WATER PIPE |
| 14 | 17089574 | WASHER Ø8X16 MM |
| 15 | 17765093 | CLIP Ø60/80 MM |
| 16 | 8107383 | RUBBER SLEEVE Ø60 MM |
| 17 | 15970521 | HEXAGON BOLT M10X20 MM |
| 18 | 8110973 | RETAINER |
| 19 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 20 | 16992211 | THREADED PLUG M12X1,5 |
| 21 | 4568427 | RUBBER PAD |
| 22 | 4936328 | CLIP ASSY |
| 23 | 17764993 | CLIP Ø50/70 MM |
| 24 | 8110206 | WATER HOSE |
| 25 | 8110207 | WATER HOSE |
| 26 | 4547637 | FLAT ENGINE GASKET |
| 27 | 17090174 | SPRING WASHER Ø10X20 MM |
| 28 | 16043621 | HEXAGON BOLT M8X25 MM |
| 29 | 4709713 | WATER PIPE |
