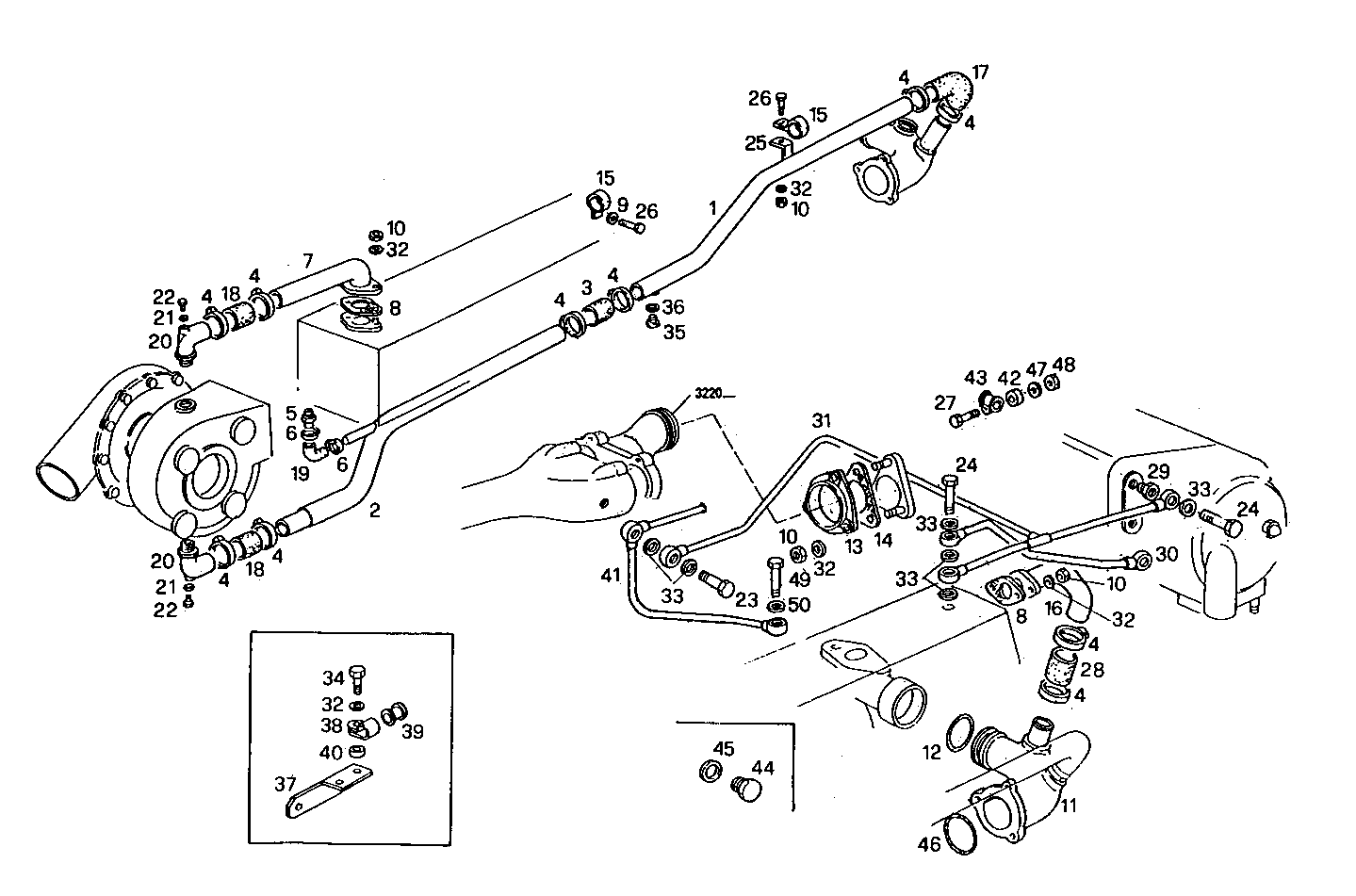

| Item |
Part number |
Description |
|
1 |
8110620 |
WATER PIPE |
|
2 |
8110621 |
WATER PIPE |
|
3 |
8110617 |
RUBBER SLEEVE |
|
4 |
17764792 |
HOSE CLIP Ø32-50 MM |
|
5 |
8114298 |
PIPE SOCKET [up to 15-12-03] |
|
5 |
8024797 |
PIPE SOCKET M30X1,5 |
|
6 |
17764593 |
CLIP Ø20/32 MM |
|
6 |
17764693 |
CLIP Ø25/40 MM |
|
7 |
8109301 |
WATER PIPE |
|
8 |
4918835 |
GASKET |
|
9 |
11194079 |
SPRING WASHER Ø8X16 MM SP=1,9 MM |
|
10 |
17037931 |
HEXAGON NUT M8X1,25 |
|
11 |
8110718 |
WATER PIPE |
|
12 |
17290181 |
O-RING Ø59,92 MM SP=3,53 MM |
|
13 |
8007275 |
FLANGE |
|
14 |
4533087 |
FLAT ENGINE GASKET |
|
15 |
4928851 |
CLIP |
|
16 |
8110631 |
WATER PIPE |
|
17 |
8110497 |
CONNECTOR SLEEVE |
|
18 |
4778438 |
RUBBER SLEEVE WATER |
|
19 |
99452230 |
RUBBER SLEEVE Ø50 MM |
|
19 |
98420478 |
RUBBER SLEEVE |
|
20 |
8110480 |
PIPE SOCKET |
|
21 |
4858606 |
GASKET Ø10X14X1 MM |
|
22 |
11903140 |
PLUG M10X1,25 |
|
23 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
|
24 |
4930504 |
SCREW CONNECTOR |
|
25 |
8100819 |
RETAINER |
|
26 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
27 |
16603924 |
HEXAGON BOLT M6X30 MM |
|
28 |
8110724 |
RUBBER SLEEVE |
|
29 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
|
30 |
8013628 |
WATER PIPE |
|
31 |
8013627 |
WATER PIPE |
|
32 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
33 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
34 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
35 |
10300511 |
LOCK PLUG M12X1,5 |
|
36 |
10296160 |
SEAL GASKET Ø12X18 MM SP=1 MM |
|
37 |
98428903 |
PLATE |
|
38 |
4810359 |
HOSE CLIP |
|
39 |
4565875 |
RUBBER PAD |
|
40 |
13605811 |
SPACER SP=1,5 MM |
|
41 |
4865219 |
WATER PIPE |
|
42 |
17814714 |
SPACER |
|
43 |
17316390 |
CLIP |
|
44 |
10300940 |
PLUG M8 |
|
45 |
4858605 |
WASHER Ø8X12 MM |
|
46 |
17296181 |
O-RING Ø59,69X5,33 MM |
|
47 |
17088474 |
WASHER Ø6X12 MM |
|
48 |
17037821 |
HEXAGON NUT M6X1 |
|
49 |
4864080 |
SCREW CONNECTOR M10X1,25 |
|
50 |
98474305 |
WASHER Ø10X17 MM SP=2,3 |
