8210SM26.12

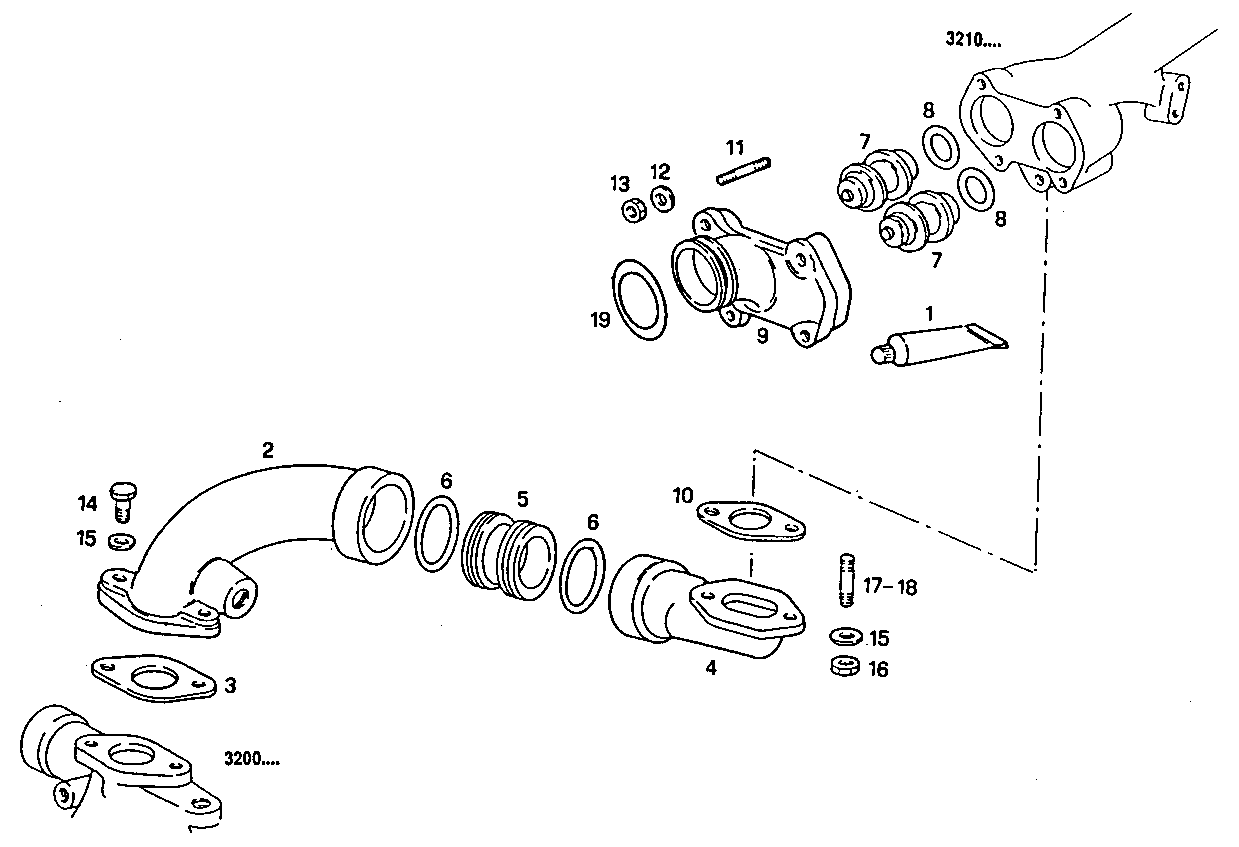

3220.060 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 1905685 | ADHESIVE/STICKER LOCTITE |
| 2 | 4799656 | CONNECTOR SLEEVE |
| 3 | 61318819 | FLAT ENGINE GASKET |
| 4 | 4799654 | CONNECTOR SLEEVE |
| 5 | 4799655 | CONNECTOR SLEEVE |
| 6 | 98461202 | O-RING |
| 7 | 98439346 | THERMOSTAT |
| 8 | 98465113 | O-RING Ø60 MM |
| 9 | 8007286 | COVER |
| 10 | 4864029 | FLAT ENGINE GASKET |
| 11 | 13546821 | STUD M10X1,25X20X45 MM |
| 12 | 17793904 | WASHER Ø10X25 MM SP=1,5 |
| 13 | 17038221 | HEXAGON NUT M10 |
| 14 | 16606024 | SCREW M8X45 MM |
| 15 | 17094914 | WASHER 8x16 |
| 16 | 17037931 | HEXAGON NUT M8X1,25 |
| 17 | 12354524 | STUD M8X16X22 |
| 18 | 13544124 | STUD M8X16X55 |
| 19 | 17290181 | O-RING Ø59,92 MM SP=3,53 MM |
