8210SM27.10

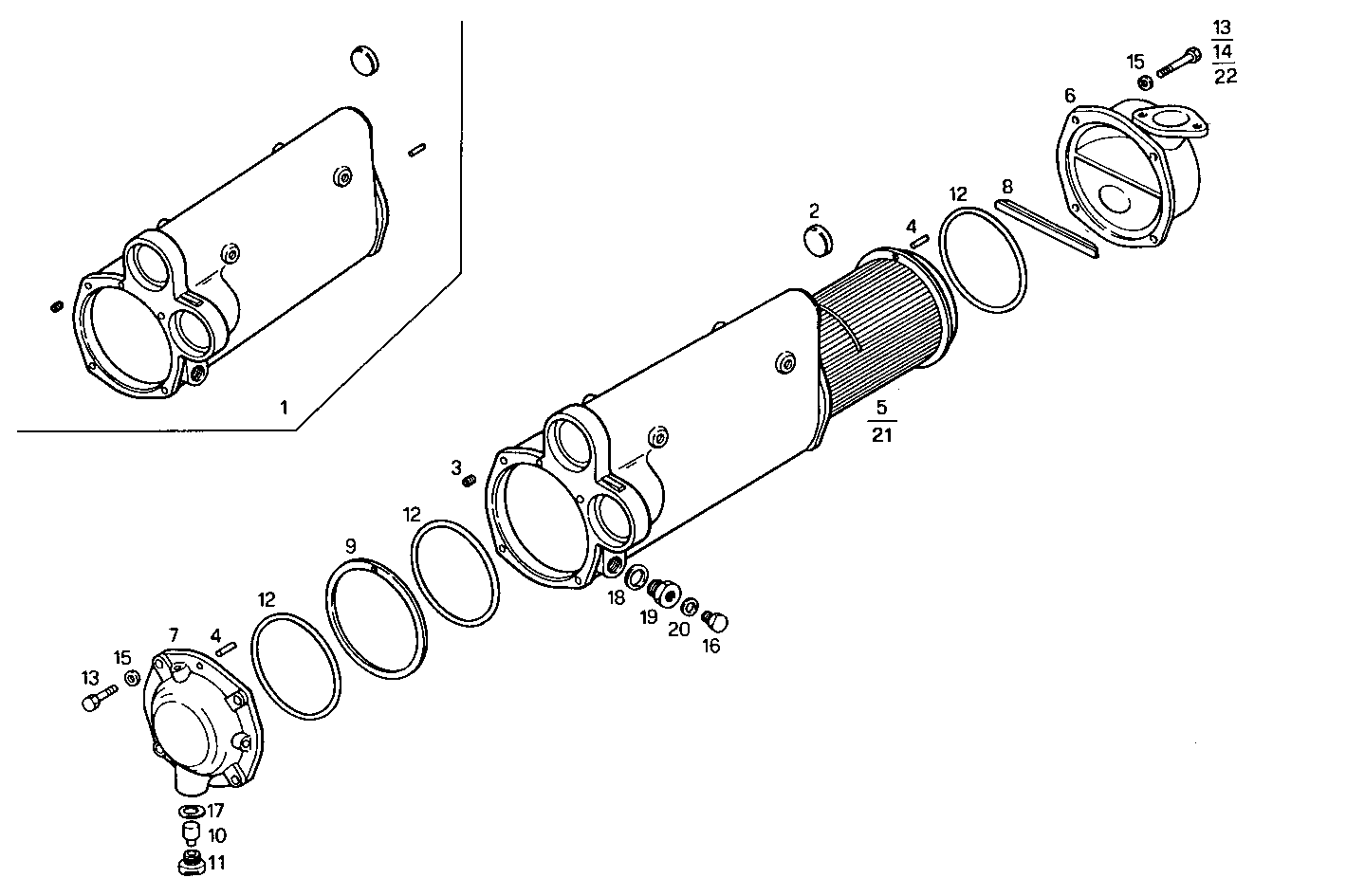

3370.034/02 FRESH WATER - SEA WATER HEAT EXCHANGER [D 10-1997] [from10-1997]

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 8009500 HEAT EXANGER BODY ASSY
2 16991370 LOCK PLUG Ø45 MM
3 17873271 THREADED INSERT M8
4 17236310 PARALLEL PIN
5 8025079 TUBE STACK
6 8025107 HEAT EXCHANG.COVER RIGHT
7 8019660 HEAT EXCHANG.COVER LEFT
8 8110978 GASKET
9 8009505 SPACING BAR
10 8101772 SACRIFICAL ANODE Ø20 MM
11 8101771 PLUG M28
12 17293181 O-RING Ø158,30X3,53 MM
13 16605924 SCREW M8X40 MM
14 16606724 HEXAGON BOLT M8X90 MM
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 16992340 THREADED PLUG M14X1,5
17 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
18 98429282 SEAL GASKET Ø26X33 MM SP=1,5 MM
19 8011536 PIPE SOCKET
20 4858608 SEAL GASKET dia.14x19,5x1,5
21 8031365 TUBE STACK
22 16044721 HEXAGON BOLT M8X1,25X75 MM
