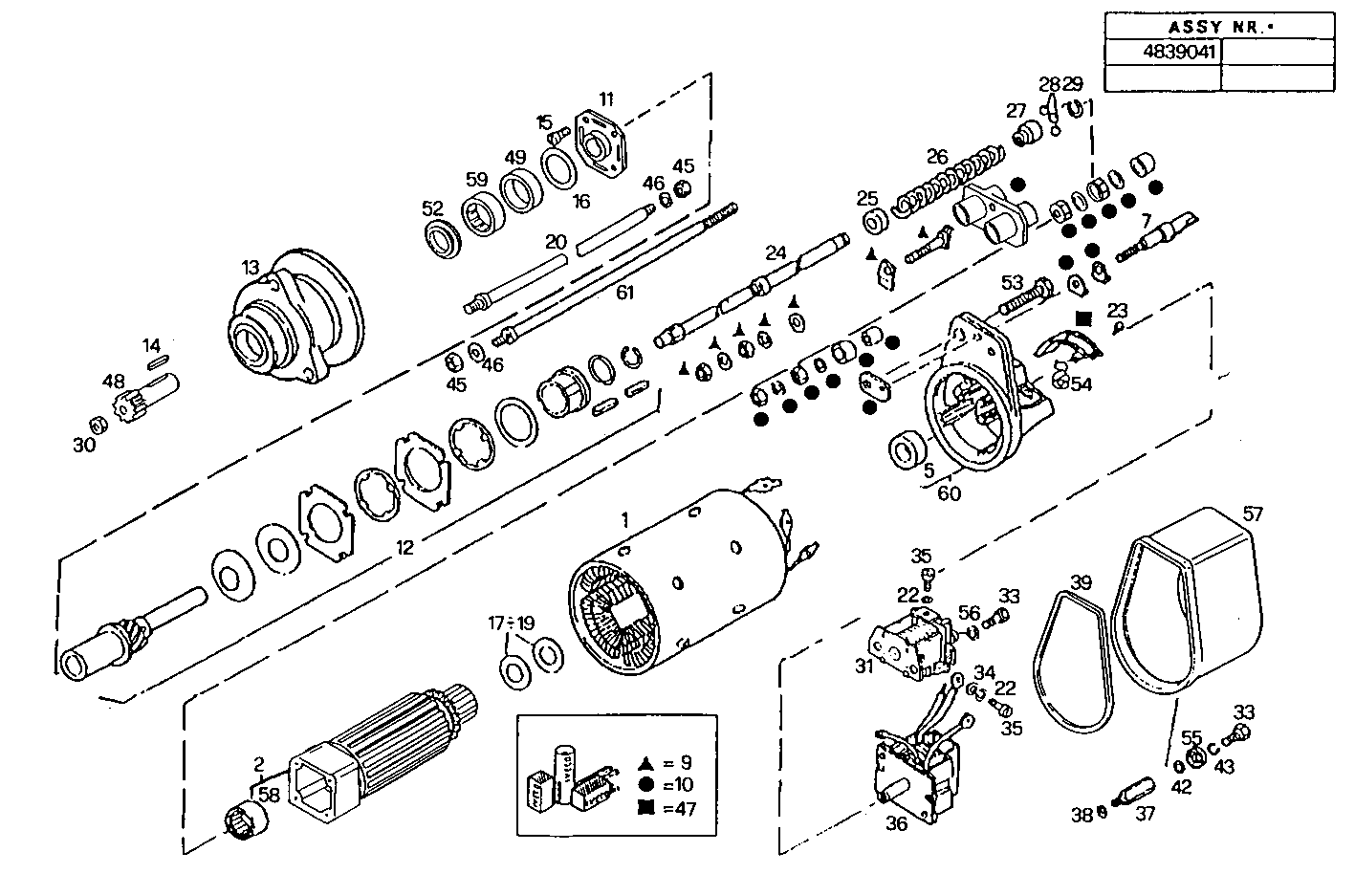

| Item |
Part number |
Description |
|
1 |
8198726 |
STARTER WINDING |
|
2 |
8121267 |
STARTER ARMATURE ASSY |
|
5 |
79052278 |
BUSH |
|
7 |
93190959 |
SCREW |
|
9 |
1306445 |
KIT-STARTER |
|
10 |
79052281 |
KIT-STARTER |
|
11 |
9920338 |
FLANGE |
|
12 |
79052241 |
SHAFT ASSY |
|
13 |
93192798 |
STARTER SUPPORT |
|
14 |
1117970 |
KEY |
|
15 |
79052237 |
SCREW |
|
16 |
79052239 |
RING |
|
17 |
79052250 |
SHIM 0,30 MM |
|
18 |
1289919 |
SHIM 0,50 MM |
|
19 |
1289920 |
WASHER SP=0,2 MM |
|
20 |
1307226 |
STUD |
|
22 |
17494634 |
SPRING WASHER Ø5,1X9,2 MM |
|
23 |
79052258 |
CUTTING SCREW |
|
24 |
8121268 |
SHAFT ASSY |
|
25 |
79052244 |
RING |
|
26 |
79052245 |
SPRING |
|
27 |
79052246 |
RING SP=0,5 MM |
|
28 |
79052247 |
BALL |
|
29 |
9920367 |
CIRCLIP Ø125 MM SP=4 MM |
|
30 |
93190269 |
NUT ASSY |
|
31 |
79052269 |
STARTER SOLENOID |
|
33 |
93163744 |
SCREW ASSY |
|
34 |
93159935 |
WASHER M6X12 MM |
|
35 |
79028449 |
SCREW |
|
36 |
79052266 |
STARTER SOLENOID |
|
37 |
79052263 |
PIN |
|
38 |
9920379 |
WASHER |
|
39 |
9920382 |
GASKET |
|
41 |
10376621 |
SCREW |
|
42 |
1289929 |
GASKET |
|
43 |
79052265 |
BUSH |
|
45 |
17037821 |
HEXAGON NUT M6X1 |
|
46 |
17094604 |
WASHER Ø6X11 MM |
|
47 |
79052257 |
KIT-STARTER |
|
48 |
93160544 |
STARTER PINION Ø116 MM SP=1,5 MM |
|
49 |
79052271 |
BUSH |
|
52 |
79052272 |
GASKET |
|
53 |
9920668 |
SCREW Ø125 MM SP=4 MM |
|
54 |
1290139 |
SPRING |
|
55 |
93160617 |
SPRING WASHER |
|
56 |
10516673 |
SPRING WASHER Ø8,1X14,8 MM |
|
57 |
93190960 |
COVER |
|
58 |
1905092 |
ENGINE BEARINGS |
|
59 |
1905095 |
ENGINE BEARINGS |
|
60 |
93190958 |
STARTER SUPPORT ASSY |
|
61 |
8123714 |
STUD |
|
62 |
1123746 |
HEXAGON BOLT M5X10 MM (8.8) |
