8210SRC21.20

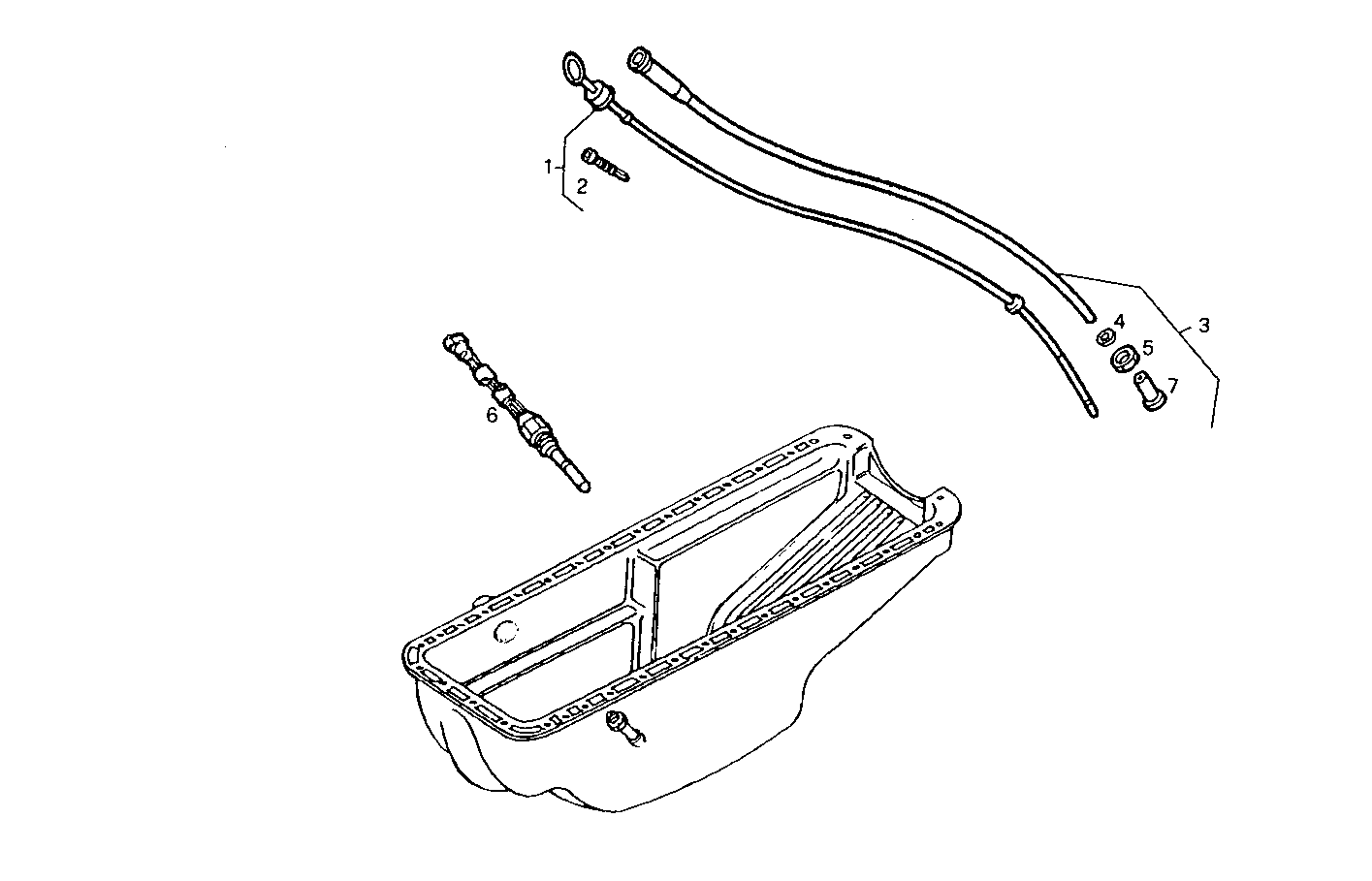

2710.079 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 98499111 | OIL DIPSTICK ASSY |
| 2 | 98417751 | RUBBER GASKET |
| 3 | 98498924 | OIL LEVEL TUBE ASSY |
| 4 | 4641221 | RING |
| 5 | 4641220 | NUT |
| 6 | 4860504 | SENSOR L=93 MM |
| 7 | 4817503 | BUSH |
