8210SRC21.20

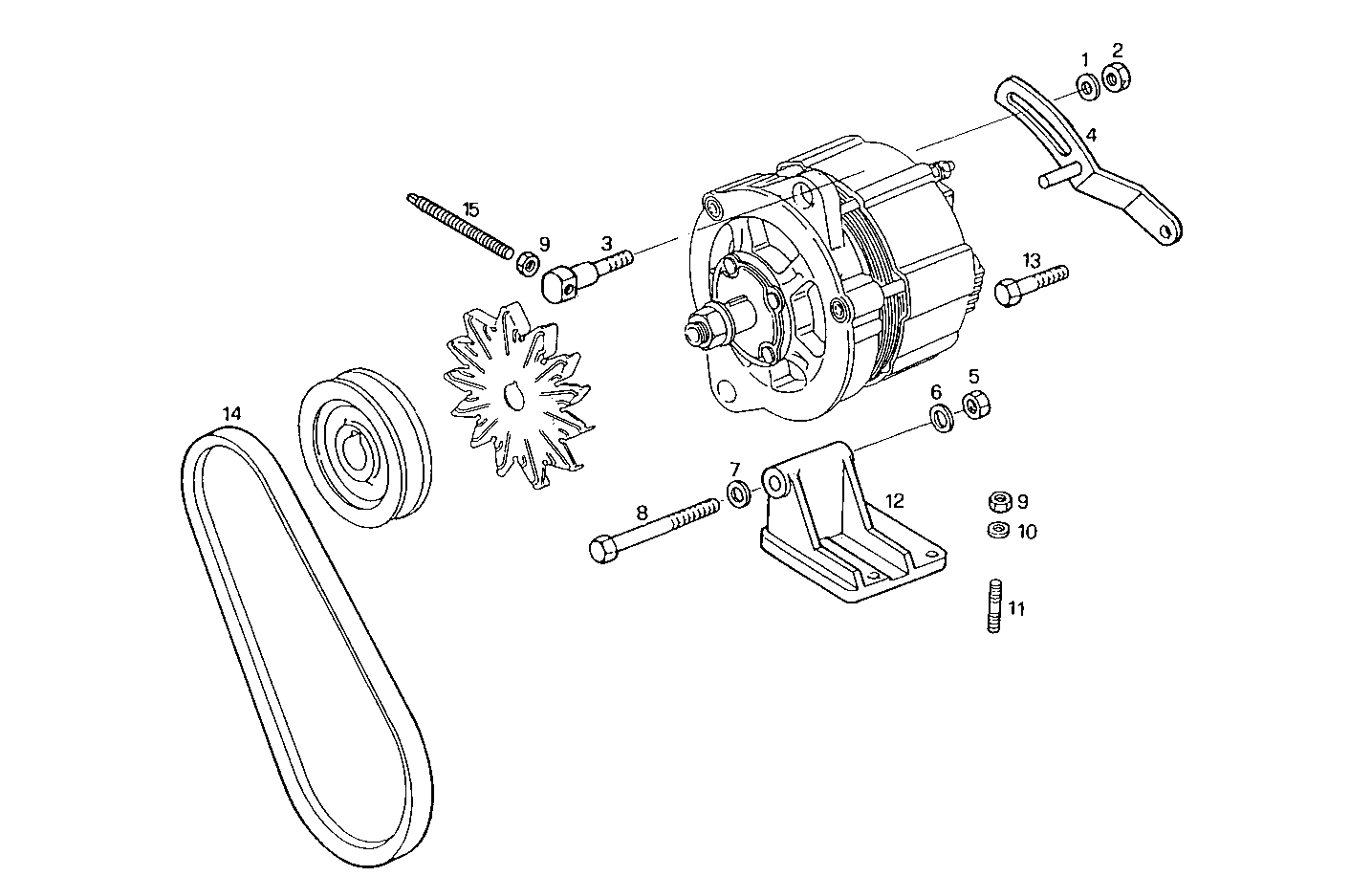

4010.083 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4513436 | SUPPORT RING Ø10X21X2 MM |
| 2 | 17157221 | NUT M10X1,25 |
| 3 | 4758640 | ADJUSTING SCREW |
| 4 | 98459444 | BELT TENSIONER |
| 5 | 17157521 | NUT M12X1,25 |
| 6 | 17091074 | WASHER Ø12X24X2,8 MM |
| 7 | 12646921 | WASHER Ø12X28 MM |
| 8 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
| 9 | 17038221 | HEXAGON NUT M10 |
| 10 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
| 11 | 13449521 | STUD M10X15X25 |
| 12 | 4862414 | SUPPORT |
| 13 | 11288024 | HEXAGON BOLT M10X1,25X60 MM |
| 14 | 98459455 | ALTERNATOR BELT |
| 15 | 4758641 | ADJUSTING SCREW M10X1,25X125 MM |
