8210SRC21.21

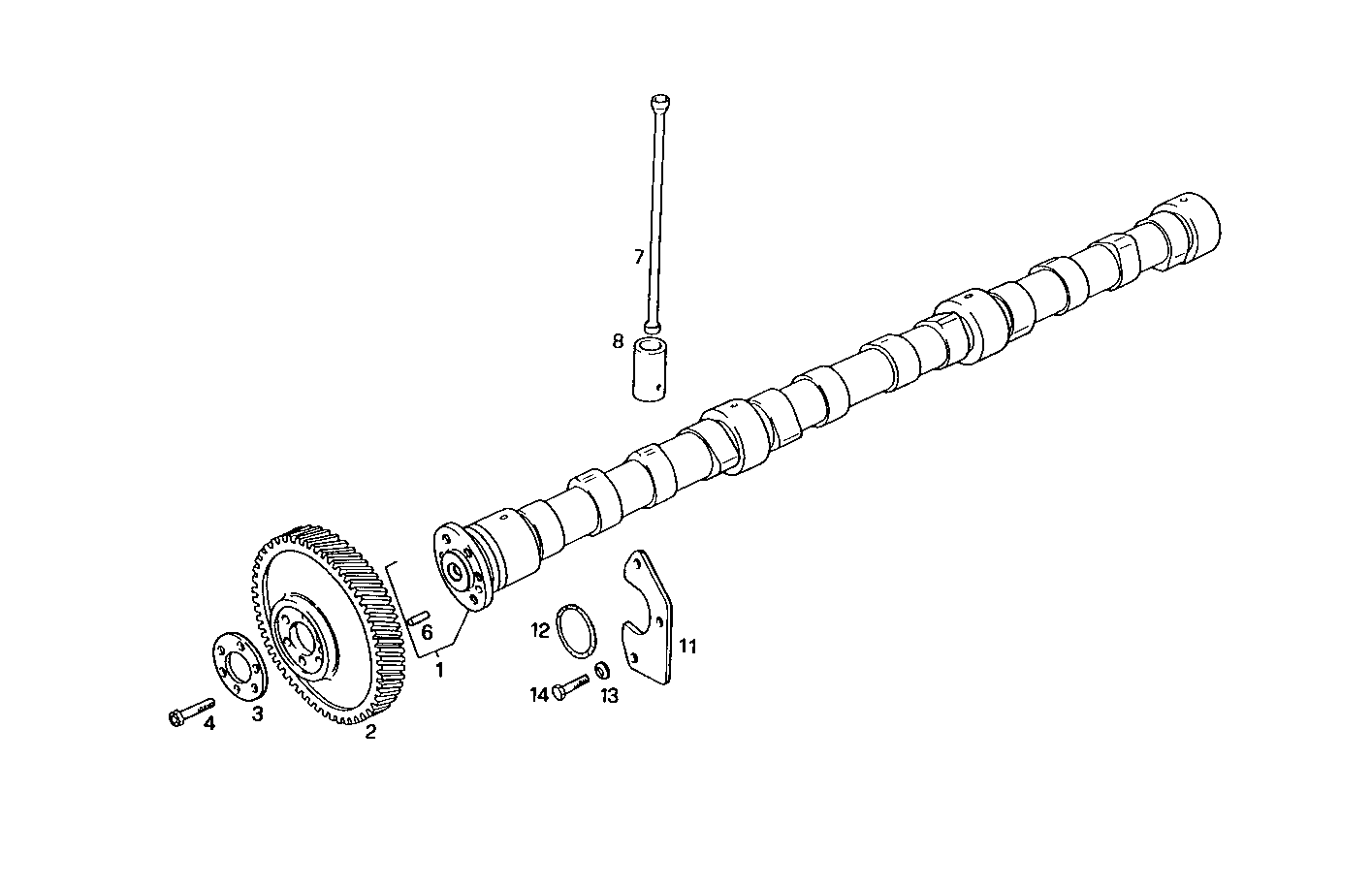

1250.070 TIMING PARTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4772361 | CAMSHAFT ASSY |
| 2 | 98418372 | TIMING INTERM.GEA |
| 3 | 4772396 | SPACER |
| 4 | 16323430 | LOCKING SCREW M10X1,25 |
| 6 | 4619885 | DOWEL PIN |
| 7 | 4734816 | PUSHROD |
| 8 | 4762054 | VALVE TAPPET +0,0 MM |
| 11 | 98434327 | PLATE [from ...] |
| 12 | 14457681 | O-RING Ø21,89 MM SP=2,62 MM |
| 13 | 17090274 | WASHER Ø10X20 MM |
| 14 | 14307621 | CYLIND-HEAD SCREW M10X35 MM |
