8210SRC21.21

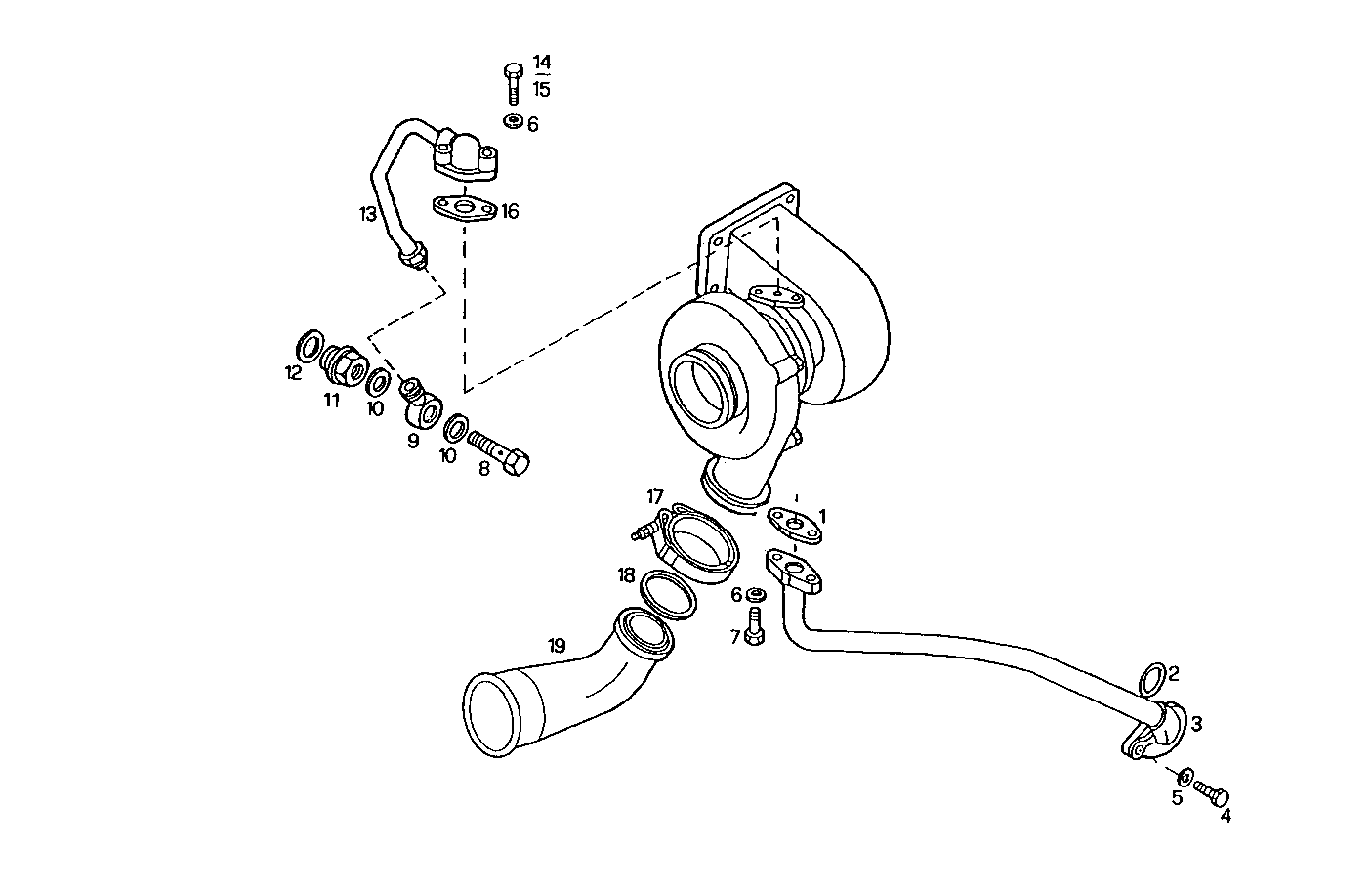

2420.149 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 61318304 GASKET
2 17282681 O-RING SP=2,62 MM
3 98479825 OIL LINE
4 11306921 SCREW M10X1,25X30
5 17090174 SPRING WASHER Ø10X20 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 16605524 HEXAGON BOLT M8X20 MM
8 98429224 SCREW CONNECTOR
9 98442202 BANJO COUPLING
10 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
11 4682418 THREADED UNION
12 10296260 SEAL GASKET Ø28X36 MM SP=1,5 MM
13 98426071 OIL LINE
14 16690824 CYLIND-HEAD SCREW M8X35 MM
15 16690924 CYLIND-HEAD SCREW M8X40 MM
16 61318303 GASKET
17 4800661 CLIP Ø 75 mm.
18 17284681 O-RING Ø61,6 MM SP=2,62 MM
19 4802261 AIR PIPE/DUCT
